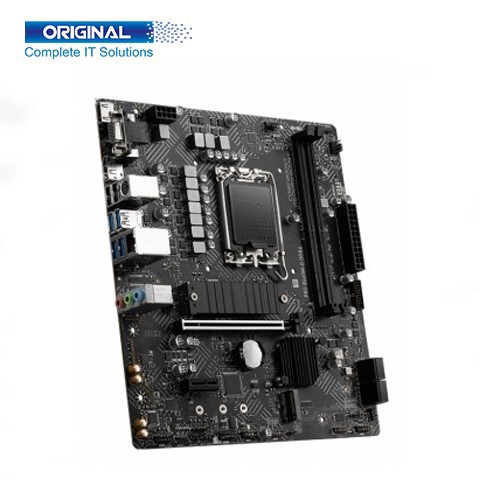

MSI PRO B660M-G DDR4 12th Gen Micro-ATX Motherboard

Special Price :           ৳15,280
Regular Price(EMI) :           ৳16,450
Status :           In Stock
Brand :           MSI
Product Code :           PRO B660M-G

Short Details:

  • • Model: MSI PRO B660M-G DDR4
  • • Socket: LGA1700
  • • Memory Types: DDR4
  • • Maximum Memory: 64GB

See More Details

৳15,280

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model MSI PRO B660M-G DDR4
Brand MSI
Supported Processor Supports 12th/ 13th Gen Intel Core Pentium Gold and Celeron Processors
Chipset Intel B660 chipset
Socket LGA1700
BIOS

* 1x 256 Mb flash

* UEFI AMI BIOS

* ACPI 6.4, SMBIOS 3.4

* Multi-language

Form Factor

* M-ATX Form Factor

* 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm)

Memory Information
Memory Types DDR4
Channel Dual-Channel
Slot 2x DDR4 memory slots
Supported Bus Speed

* Supports ADL-s 1R 2133/2666/2933/3200 MHz

* 1DPC 1R Max speed up to 4600+ MHz

* 1DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Maximum Memory 64GB
Graphics Information
Graphics

* 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz

* 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

* 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1/2 (PRO B660M-G DDR4)

Expansion Slots
PCI

* 1x PCIe 4.0 x16 slot (from CPU)

* 1x PCIe 3.0 x1 slot (from B660 chipset)

Storage Information
M.2

* 2x M.2 slots (Key M)

* M2_1 slot (From CPU)

* M2_2 slot (From B660 chipset)

SATA

* 4x SATA 6Gb/s ports (From B660 chipset)

* Supports SATA 6Gb/s

RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Connector Information
Internal Connectors

-1x 24-pin ATX main power connector

-1x 8-pin ATX 12V power connector

-4x SATA 6Gb/s connectors

-2x USB 2.0 connector (support additional 4 USB ports)

-1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)

-1x 4-pin CPU fan connector

-2x 4-pin system fan connectorx

-1x Front panel audio connector

-2x System panel connectors

-1x Serial port connector

-1x TPM module connector

-1x Chassis Intrusion connector

-1x Clear CMOS jumper

-1x JRGB

-2x JRAINBOW

-1x Tuning Controller Connector

Port Information
PS/2 Port

PS/2 Keyboard / Mouse Port

VGA Port 1x VGA Port
HDMI Port 1x HDMI Port
USB Port

* 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)

* 2x USB 2.0 Type-A ports on the back panel

Display Port 1x Display Port
LAN Port 1x Realtek® RTL8125BG 2.5Gbps LAN controller
Audio Port 7.1-Channel High-Definition Audio
Others Information
LED FEATURE 4x EZ Debug LED
Operating Systems
Supported OS - Microsoft Windows 10
Warranty
Warranty 03 Years Warranty

Description:


MSI PRO B660M-G DDR4 12th Gen Micro-ATX Motherboard


MSI PRO B660M-G DDR4 12th Gen Micro-ATX Motherboard. PRO series Motherboard helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting.


MSI PRO B660M-G DDR4 12th Gen Micro-ATX Motherboard. The Model is MSI PRO B660M-G DDR4, Brand MSI, Supported Processor Supports 12th/ 13th Gen Intel Core Pentium Gold and Celeron Processors, Chipset Intel B660 chipset, Socket LGA1700, BIOS * 1x 256 Mb flash, * UEFI AMI BIOS, * ACPI 6.4, SMBIOS 3.4, * Multi-language, Form Factor * M-ATX Form Factor * 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm), Memory Types DDR4, Channel Dual-Channel, Slot 2x DDR4 memory slots, Supported Bus Speed * Supports ADL-s 1R 2133/2666/2933/3200 MHz, * 1DPC 1R Max speed up to 4600+ MHz, * 1DPC 2R Max speed up to 4000+ MHz, Supports Dual-Channel mode, Maximum Memory 64GB, Graphics * 1x VGA port, supports a maximum, resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz, * 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz, * 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1/2 (PRO B660M-G DDR4). It is PCI * 1x PCIe 4.0 x16 slot (from CPU), * 1x PCIe 3.0 x1 slot (from B660 chipset), M.2 * 2x M.2 slots (Key M), * M2_1 slot (From CPU), * M2_2 slot (From B660 chipset), SATA* 4x SATA 6Gb/s ports (From B660 chipset), * Supports SATA 6Gb/s, RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Internal Connectors 1x 24-pin ATX main power connector, -1x 8-pin ATX 12V power connector, -4x SATA 6Gb/s connectors, -2x USB 2.0 connector (support additional 4 USB ports), -1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports), -1x 4-pin CPU fan connector, -2x 4-pin system fan connectorx, -1x Front panel audio connector, -2x System panel connectors, -1x Serial port connector, -1x TPM module connector, -1x Chassis Intrusion connector, -1x Clear CMOS jumper, -1x JRGB, -2x JRAINBOW, -1x Tuning Controller Connector, PS/2 Port PS/2 Keyboard / Mouse Port, VGA Port 1x VGA Port, HDMI Port 1x HDMI Port, USB Port * 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector), * 2x USB 2.0 Type-A ports on the back panel, Display Port 1x Display Port, LAN Port 1x Realtek® RTL8125BG 2.5Gbps LAN controller, Audio Port 7.1-Channel High-Definition Audio. The MSI PRO B660M-G DDR4 12th Gen Micro-ATX Motherboard has a 03 Years Warranty.
