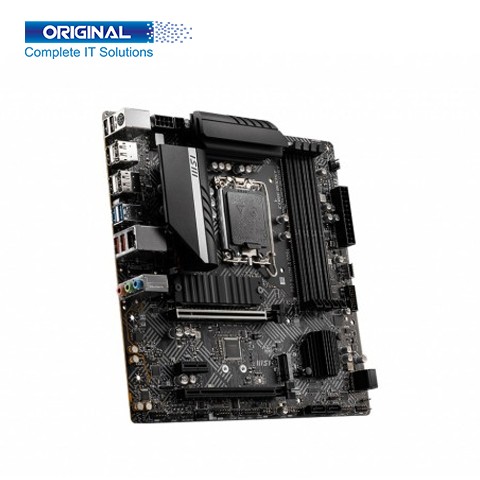

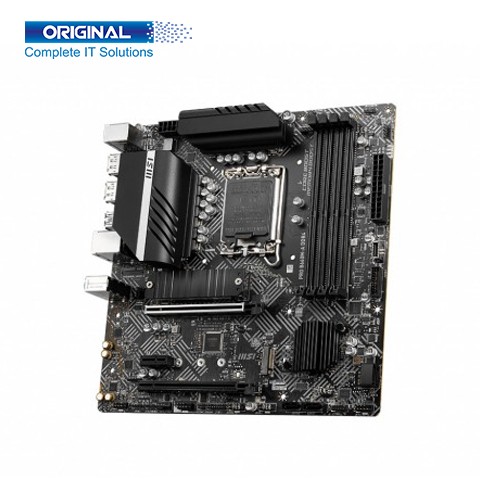

MSI PRO B660M-A DDR4 12th Gen Micro-ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           MSI
Product Code :           PRO B660M-A DDR4

Short Details:

  • • Model: PRO B660M-A DDR4
  • • Supported Processor: 12th Gen Intel Core i9 Processors
  • • Socket: LGA 1700
  • • Form Factor: Micro-ATX

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model PRO B660M-A DDR4
Brand MSI
Supported Processor Supports 12th Gen Intel Core i9 Processors
Chipset Intel B660 Chipset
Socket LGA 1700
Form Factor Micro-ATX
Memory Information
Memory Types DDR4
Channel Dual-Channel
Slot 4 x DDR4-4800+MHz(OC)
Supported Bus Speed 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Maximum Memory 128 GB
Graphics Information
Graphics

1x PCIe 4.0 x16 slot

1x PCIe 3.0 x16 slot

Supports AMD CrossFire™ Technology

Expansion Slots
PCI 1x PCIe 3.0 x1 slot
Storage Information
M.2 2x M.2 Gen4 x4 64Gbps slots
SATA 4x SATA 6Gbps ports
RAID 0/1/5/10
Connector Information
Internal Connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x 4-pin ATX 12V power connector

4x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

2x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TBT connector (supports RTD3)

1x Serial port

1x Tuning Controller connector

Port Information
USB Port

2x USB 3.2 Gen 2 10Gbps (2 Type-A)

5x USB 3.2 Gen 1 5Gbps (4 Type-A + 1 Type-C)

6x USB 2.0

HDMI Port 2 x HDMI
Display Port 2 x Display Port
LAN Port 1x Realtek RTL8125BG 2.5Gbps LAN controller
Audio Port Realtek ALC897 Codec
Operating System
Supported OS Support for Windows 11 64-bit, Windows 10 64-bit
Warranty
Warranty 03 Years

Descripton:


MSI PRO B660M-A DDR4 12th Gen Micro-ATX Motherboard


MSI PRO B660M-A DDR4 12th Gen Micro-ATX Motherboard helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


MSI PRO B660M-A DDR4 12th Gen Micro-ATX Motherboard. Supported 12th Gen Intel Core i9 Processors. Chipset Intel B660 Chipset. Socket LGA 1700. Form Factor Micro-ATX. MSI PRO B660M-A DDR4 Motherboard Memory Types DDR4 Dual-Channel. Slot 4 x DDR4-4800+MHz(OC). Supported Bus Speed 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz. Maximum Memory 128 GB. Graphics 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x16 slot, Supports AMD CrossFire™ Technology. MSI PRO B660M-A 12th Gen Motherboard Expansion Slots PCI 1x PCIe 3.0 x1 slot. Memory Information M.2 2x M.2 Gen4 x4 64Gbps slots. SATA 4x SATA 6Gbps ports. RAID 0/1/5/10. Internal Connectors 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector, 1x 4-pin ATX 12V power connector, 4x SATA 6Gb/s connectors, 2x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 2x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x TBT connector (supports RTD3), 1x Serial port, 1x Tuning Controller connector. USB Port 2x USB 3.2 Gen 2 10Gbps (2 Type-A), 5x USB 3.2 Gen 1 5Gbps (4 Type-A + 1 Type-C), 6x USB 2.0. HDMI Port 2 x HDMI. Display Port 2 x Display Port. LAN Port 1x Realtek RTL8125BG 2.5Gbps LAN controller. Audio Port Realtek ALC897 Codec. Supported Operating System Support for Windows 11 64-bit, Windows 10 64-bit. MSI PRO B660M-A DDR4 12th Gen Micro-ATX Motherboard has Three years warranty.
