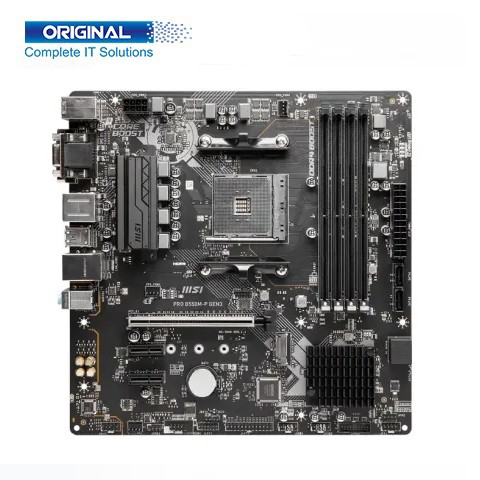

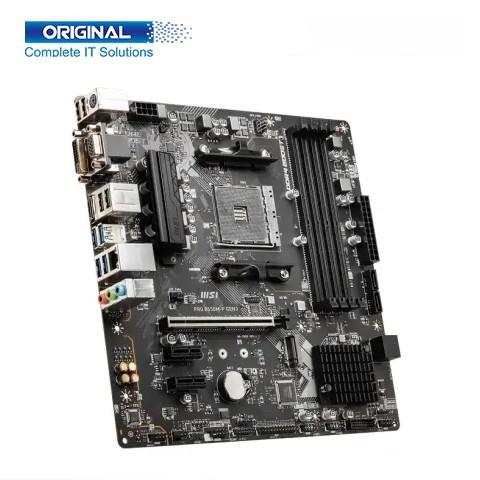

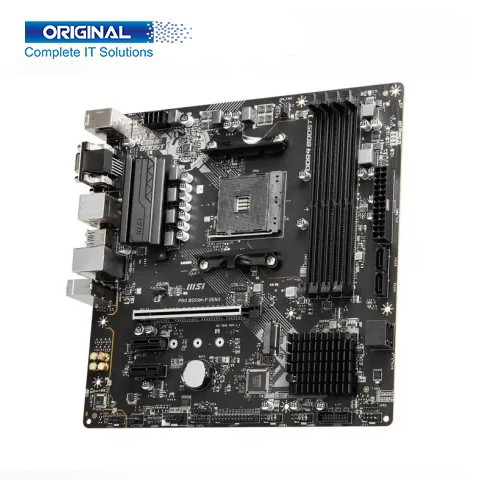

MSI PRO B550M-P Gen3 AMD AM4 Micro ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           MSI
Product Code :           PRO B550M-P Gen3

Short Details:

  • • Model: MSI PRO B550M-P
  • • Socket: AM4
  • • Memory Types: DDR4
  • • Maximum Memory: 128GB

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model MSI PRO B550M-P
Brand MSI
Supported Processor Supports AMD Ryzen 5000 & 3000 Series (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Chipset AMD B550 Chipset
Socket AM4
BIOS

1x 256 Mb flash

UEFI AMI BIOS

ACPI 6.1, SMBIOS 2.8

Multi-language

Form Factor

m-ATX Form Factor

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Memory Information
Memory Types DDR4
Channel Dual channel
Slot 4x DDR4
Supported Bus Speed

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE

1DPC 1R max speed 4400 MHz

1DPC 2R max speed 3733 MHz

2DPC 1R max speed 3866 MHz

2DPC 2R max speed 3466 MHz

Maximum Memory 128GB
Graphics Information
Graphics
  • 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
  • 1x HDMI™ 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
  • 1x DVI-D port supports a maximum resolution of 1920x1200 @60Hz
  • The maximum shared memory of 16 GB
Expansion Slots
PCI
  • 1x PCIe 3.0 x16 slot (From CPU)
  • 2x PCIe 3.0 x1 slots (From AMD B550 chipset)
Storage Information
M.2

1x M.2 slot (Key M)

M2_1 slot (From CPU)

SATA

4x SATA 6Gb/s ports (From AMD B550 Chipset)

Supports SATA 6Gb/s

RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Connector Information
Internal Connector

INTERNAL USB CONNECTORS

1x USB 3.2 Gen 1 5Gbps connectors (From AMD B550 Chipset)

Supports additional 2 USB 3.2 Gen 1 5Gbps ports

2x USB 2.0 Type-A connectors (From AMD B550 Chipset)

Supports additional 4 USB 2.0 ports

FAN CONNECTORS

1x 4-pin CPU fan connector

2x 4-pin system fan connectors

SYSTEM CONNECTORS

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Serial port connector

1x Parallel port connector

1x TPM module connector

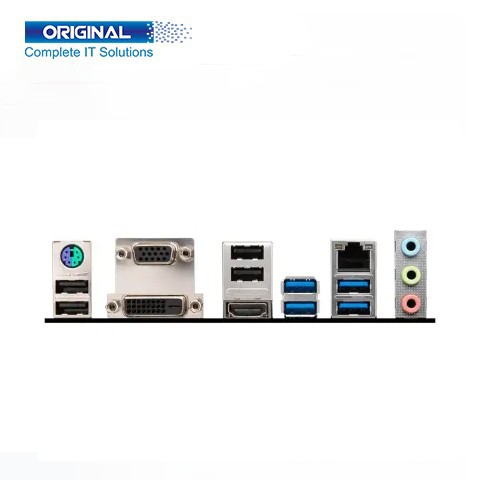

Port Information
PS/2 Port Keyboard / Mouse
USB Port

USB 2.0

USB 2.0

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 1 5Gbps Type-A

VGA Port 1x VGA port
HDMI Port 1x HDMI 1.4 port
LAN Port 1x Realtek RTL8111H 1Gbps LAN controller
Audio Jack 1x Audio connector
DVI-D Port 1x DVI-D port
Others Information
JUMPERS 1x Clear CMOS jumper
LED FEATURES

1x 4-pin RGB LED connector

4x EZ Debug LED

SOFTWARE MSI Center
Operating System
Supported OS Windows 10/11
Warranty
Warranty 03 Years Warranty

Description:


MSI PRO B550M-P Gen3 AMD AM4 Micro ATX Motherboard


MSI PRO B550M-P Gen3 AMD AM4 Micro ATX Motherboard. The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality while aiming to provide users with an incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.


MSI PRO B550M-P Gen3 AMD AM4 Micro ATX Motherboard. It is Model MSI PRO B550M-P, Brand MSI, Supported Processor Supports AMD Ryzen 5000 & 3000 Series (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors, Chipset AMD B550 Chipset, Socket AM4, BIOS 1x 256 Mb flash, UEFI AMI BIOS, ACPI 6.1, SMBIOS 2.8, Multi-language Form Factor m-ATX Form Factor,9.6 in. x 9.6 in. (24.4 cm x 24.4 cm), Memory Types DDR4, Channel Dual channel, Slot 4x DDR4, Supported Bus Speed Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE, 1DPC 1R max speed 4400 MHz, 1DPC 2R max speed 3733 MHz, 2DPC 1R max speed 3866 MHz, 2DPC 2R max speed 3466 MHz, Maximum Memory 128GB, Graphics 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz, 1x HDMI™ 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz, 1x DVI-D port supports a maximum resolution of 1920x1200 @60Hz, The maximum shared memory of 16 GB, PCI 1x PCIe 3.0 x16 slot (From CPU), 2x PCIe 3.0 x1 slots (From AMD B550 chipset), M.2 1x M.2 slot (Key M), M2_1 slot (From CPU), SATA 4x SATA 6Gb/s ports (From AMD B550 Chipset), Supports SATA 6Gb/s, RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices, Internal Connector INTERNAL USB CONNECTORS 1x USB 3.2 Gen 1 5Gbps connectors (From AMD B550 Chipset), Supports additional 2 USB 3.2 Gen 1 5Gbps ports, 2x USB 2.0 Type-A connectors (From AMD B550 Chipset), Supports additional 4 USB 2.0 ports, FAN CONNECTORS 1x 4-pin CPU fan connector, 2x 4-pin system fan connectors, SYSTEM CONNECTORS 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x Serial port connector, 1x Parallel port connector, 1x TPM module connector, PS/2 Port Keyboard / Mouse, USB Port USB 2.0, USB 2.0, USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 1 5Gbps Type-A, VGA Port 1x VGA port, HDMI Port 1x HDMI 1.4 port, LAN Port 1x Realtek RTL8111H 1Gbps LAN controller Audio Jack 1x Audio connector, DVI-D Port 1x DVI-D port. The MSI PRO B550M-P Gen3 AMD AM4 Micro ATX Motherboard has a 03 Years Warranty.
