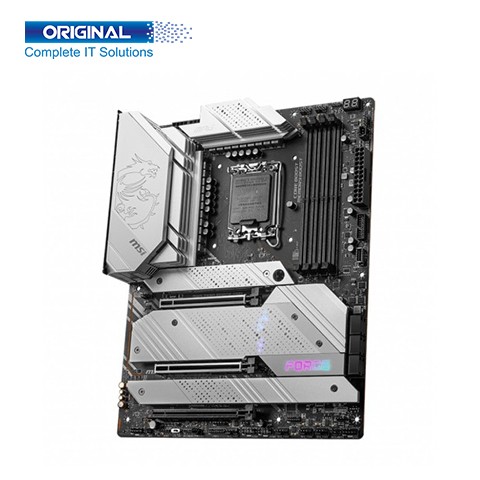

MSI MPG Z690 FORCE WIFI 12th Gen Intel ATX Motherboard

Price :           To be announced
Status :           Up Comming
Brand :           MSI
Product Code :           MPG Z690 FORCE WIFI

Short Details:

  • • Model: MPG Z690 FORCE WIFI
  • • Supported Processor: 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron®
  • • Socket: LGA1700
  • • Form Factor: ATX

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

MPG Z690 FORCE WIFI

Brand MSI
Supported Processor Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset Intel® Z690 Chipset
Socket LGA1700
Form Factor ATX
Memory Information
Memory Types

DDR5

Channel Dual-Channel
Slot 4 x DIMM
Supported Bus Speed

1DPC 1R Max speed up to 6666+ MHz

1DPC 2R Max speed up to 6000+ MHz

2DPC 1R Max speed up to 6000+ MHz

2DPC 2R Max speed up to 5600+ MHz

Maximum Memory 128 GB
Graphics Information
Graphics

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

Expansion Slots
PCI

* 3x PCIe x16 slots

* PCI_E1 & PCI_E2 slots (From CPU)

Support PCIe 5.0

Support x16/ x0, x8/ x8

* PCI_E3 slot (From Z690 Chipset)

Supports PCIe 3.0 x4

Storage Information
M.2

5x M.2 slots (Key M)

SATA

4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset)

2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061)

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices

Connector Information
Internal Connectors

1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

6x SATA 6Gb/s connectors

5x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C connector

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TPM module connector

1x TBT connector (supports RTD3)

1x Tuning Controller connector

Port Information
USB Port

* Intel® Z690 Chipset

1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel

6x USB 3.2 Gen 2 10Gbps ports (5 Type-A ports on the back panel, 1 Type-C available through the internal connector)

2x USB 3.2 Gen 1 5Gbps ports available through the internal connector

4 USB 2.0 ports on the back panel

* USB Hub-GL850G

4x USB 2.0 ports available through internal connectors

HDMI Port 1x HDMI 2.1
Display Port 1x DisplayPort 1.4
LAN Port 1x Intel® I225V 2.5Gbps LAN controller
Audio Port

7.1-Channel High Definition Audio

Supports S/PDIF output

Flash BIOS Button 1x Flash BIOS Button
Other Information
Wireless & Bluetooth

Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11.

Bluetooth 5.2 will be ready in WIN10 21H1 and Windows 11.

Special Information
LED FEATURE

1x EZ LED Control switch

4x EZ Debug LED

1x 2-Digit Debug Code LED

1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

1x 3-pin CORSAIR LED connector

Operating System
Supported OS

Support for Windows® 11 64-bit, Windows® 10 64-bit

Warranty
Warranty

03 Years Warranty

Description:


MSI MPG Z690 FORCE WIFI 12th Gen Intel ATX Motherboard


MSI MPG Z690 FORCE WIFI 12th Gen Intel ATX Motherboard is loaded with advanced features and the latest technology to overwhelm any challenge, whether you're a gamer, prosumer, or PC enthusiast. Buy MSI MPG Z690 FORCE WIFI 12th Gen Intel ATX Motherboard at the Best Price in BD.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different types of IT Product information please Click here.


MSI MPG Z690 FORCE WIFI 12th Gen Intel ATX Motherboard. Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Intel Z690 Chipset. Socket LGA1700. Form Factor ATX. MSI MPG Z690 FORCE WIFI Motherboard Memory Types DDR5 Dual-Channel. Slot 4 x DIMM. Supported Bus Speed 1DPC 1R Max speed up to 6666+ MHz, 1DPC 2R Max speeds up to 6000+ MHz, 2DPC 1R Max speeds up to 6000+ MHz, 2DPC 2R Max speeds up to 5600+ MHz. Maximum Memory 128 GB. Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz, 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz. PCI 3x PCIe x16 slots. Storage 5x M.2 slots (Key M), 4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset), 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061), Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices. USB Port 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel, 6x USB 3.2 Gen 2 10Gbps ports (5 Type-A ports on the back panel, 1 Type-C available through the internal connector), 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector, 4 USB 2.0 ports on the back panel, 1x HDMI 2.1, 1x DisplayPort 1.4, 1x Intel® I225V 2.5Gbps LAN controller, 7.1-Channel High Definition Audio, Supports S/PDIF output. Wireless & Bluetooth Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11. Bluetooth 5.2 will be ready in WIN10 21H1 and Windows 11. Supported Operating System Support for Windows® 11 64-bit, and Windows® 10 64-bit. MSI MPG Z690 CARBON WIFI 12th Gen ATX Motherboard has Three years warranty.
