| Special Price | : | ৳40,400 |
| Regular Price(EMI) | : | ৳42,700 |
| Status | : | In Stock |
| Brand | : | MSI |
| Product Code | : | MPG Z690 EDGE WIFI |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | MPG Z690 EDGE WIFI DDR4 |
|
| Brand | MSI | |
| Supported Processor | Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® Processors | |
| Chipset | Intel® Z690 Chipset | |
| Socket | LGA1700 | |
| Form Factor | ATX | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual-Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) * Max. overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz |
|
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
|
| Expansion Slots | ||
| PCI | * 3x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 5.0 x16 PCI_E3 & PCI_E4 slots (From Z690 chipset) Supports PCIe 3.0 x4 * 1x PCIe 3.0 x1 slot (From Z690 chipset |
|
| Storage Information | ||
| M.2 | 4x M.2 slots (Key M) |
|
| SATA | 6x SATA 6Gb/s ports 2 x SATA 6Gb/s ports - SATAA & SATAB |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Connector Information | ||
| Internal Connectors | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper 1x Tuning controller connector 1x TBT connector (Supports RTD3) |
|

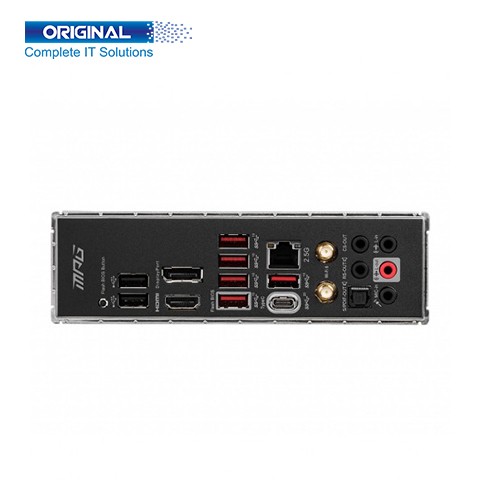

| Port Information | ||
| USB Port | * Intel® Z690 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel) 2x USB 2.0 Type-A ports on the back panel 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector * USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
|
| HDMI Port | 1x HDMI 2.1 with HDR port | |
| Display Port | 1x DisplayPort 1.4 with HBR3 | |
| LAN Port | 1x Intel I225V 2.5Gbps LAN controller | |
| Audio Port | 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Flash BIOS Button | 1x Flash BIOS Button | |
| Other Information | ||
| WIFI & BLUETOOTH | The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 |
|
| Special Information | ||
| LED FEATURE | 1x 4-pin RGB LED connector 3x 3-pin RAINBOW LED connectors 1x EZ LED Control switch 4x EZ Debug LED |
|
| Operating System | ||
| Supported OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|

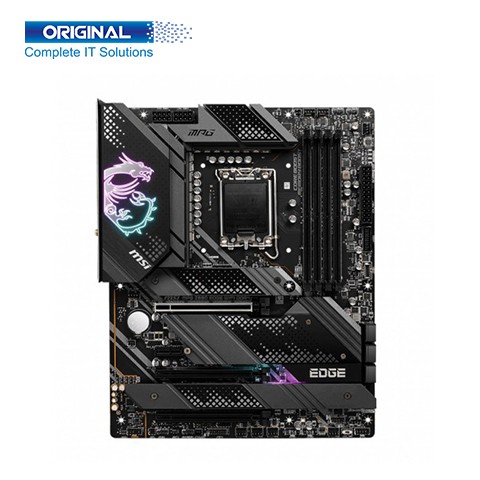

MSI MPG Z690 EDGE WIFI DDR4 12th Gen ATX Motherboard With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with MSI MPG Z690 EDGE WIFI DDR4 Motherboard.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different types of IT Product information please Click here.
MSI MPG Z690 EDGE WIFI DDR4 12th Gen ATX Motherboard. Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors. Intel® Z690 Chipset. Socket LGA1700. Form Factor ATX. MSI MPG Z690 EDGE WIFI DDR4 Memory Types DDR4 Dual-Channel. Slot 4 x DIMM. Supported Bus Speed is Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) and Max overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz, 1DPC 2R Max speed up to 4800+ MHz, 2DPC 1R Max speed up to 4400+ MHz, 2DPC 2R Max speed up to 4000+ MHz. Maximum Memory 128 GB. Graphics is 1x HDMI 2.1 with HDR port, 1x DisplayPort 1.4 port with HBR3, and supports a maximum resolution of 4K 60Hz. Storage 4x M.2 slots (Key M), 6x SATA 6Gb/s ports, 2 x SATA 6Gb/s ports - SATAA & SATAB, Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices. USB Port is Intel® Z690 Chipset: 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel, 6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel), 2x USB 2.0 Type-A ports on the back panel, 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector, USB Hub-GL850G: 4x USB 2.0 ports available through internal connectors, HDMI Port is 1x HDMI 2.1 with HDR port, Display Port is 1x DisplayPort 1.4 with HBR3, LAN Port is 1x Intel I225V 2.5Gbps LAN controller, Audio Port is 7.1-Channel High Definition Audio, Supports S/PDIF output. Supported Operating System Support for Windows® 11 64-bit, and Windows® 10 64-bit. MSI MPG Z690 EDGE WIFI DDR4 12th Gen ATX Motherboard has Three years warranty.
