| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | MPG Z590M GAMING EDGE WIFI |
| General Information | ||
| Model | MPG Z590M GAMING EDGE WIFI | |
| Brand | MSI | |
| Supported Processor | Supports 10th Gen, 11th Gen, Pentium Gold and Celeron Intel Processors | |
| Chipset | Intel Z590 Chipset | |
| Socket | LGA 1200 | |
| Form Factor | M-ATX | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-channel | |
| Slot | 4 x DDR4, up to 5333MHz | |
| Supported Bus Speed | 5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x16 slot | |
| Expansion Slots | ||
| PCI | 1x PCIe 3.0 x1 slot | |
| Storage Information | ||
| M.2 | 1x M.2 Gen4 x4 64Gb/s slot
1x M.2 Gen3 x4 32Gb/s slots |
|
| SATA | 6x SATA 6Gb/s | |
| RAID | 0/1/5/10 | |
| Connector Information | ||
| Internal Connectors | 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2-pin system fan connectors
1x Front panel audio connectors
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x Tuning Controller connector
1x TBT connector (supports RTD3) |
|

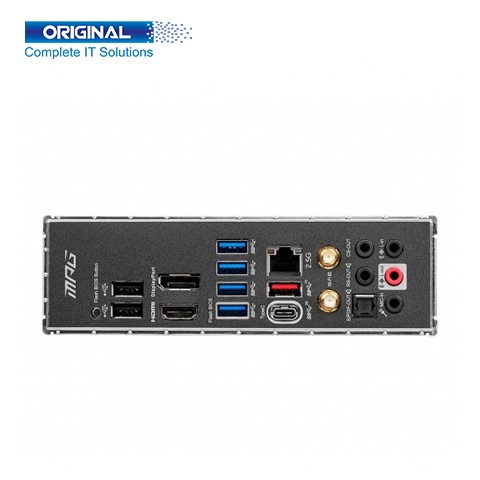

| Port Information | ||
| USB Port | 1 x USB 3.2 Gen 2 x 2 20Gbps (1 Type-C)
2 x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C)
6x USB 3.2 Gen 1 5Gbps (6 Type-A)
6 x USB 2.0 |
|
| HDMI Port | 1 x HDMI | |
| LAN Port | 1x Intel I225-V 2.5G LAN | |
| WiFi & Bluetooth | Intel Wi-Fi 6E AX210 | |
| Audio Port | 5+ Optical S/PDIF (Realtek® ALC4080 Codec) | |
| Operating System | ||
| Supported OS | Windows 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years | |

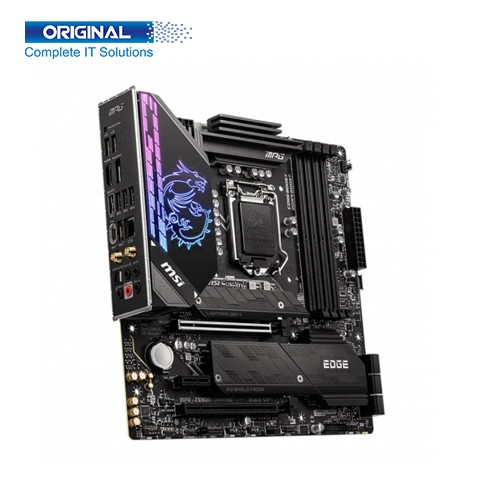

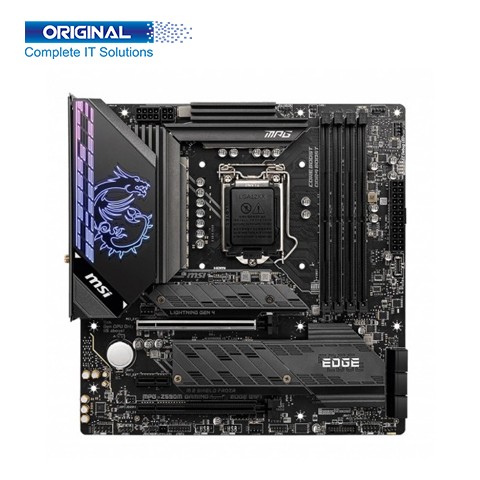

MSI MPG Z590M GAMING EDGE WIFI 10th & 11th Gen M-ATX Motherboard is loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer or enthusiast. MSI Z590 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
MSI MPG Z590M GAMING EDGE WIFI 10th & 11th Gen M-ATX Motherboard. Supports 10th Gen, 11th Gen, Pentium Gold, and Celeron Intel Processors. MSI MPG Z590M GAMING EDGE Motherboard Intel Z590 Chipset. LGA 1200 Socket. M-ATX Form Factor. Memory Types DDR4. Dual-channel. 4 x DDR4, up to 5333MHz. MSI Z590M GAMING EDGE M-ATX Motherboard Supported Memory Bus Speed 5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz.Maximum Memory 128 GB. Graphics 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x16 slot. MSI MPG Z590M GAMING EDGE M-ATX Motherboard Expansion Slots 1x PCIe 3.0 x1 slot. Storage has 1x M.2 Gen4 x4 64Gb/s slot, 1x M.2 Gen3 x4 32Gb/s slots. 6x SATA 6Gb/s. RAID 0/1/5/10. It has Internal Connectors 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector, 1x 4-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, 2x M.2 slots (M-Key), 1x USB 3.2 Gen 2 10Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 2-pin system fan connectors, 1x Front panel audio connectors, 2x System panel connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Tuning Controller connector, 1x TBT connector (supports RTD3). It has included USB Port 1 x USB 3.2 Gen 2 x 2 20Gbps (1 Type-C), 2 x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C), 6x USB 3.2 Gen 1 5Gbps (6 Type-A), 6 x USB 2.0, 1 x HDMI. 1x Intel I225-V 2.5G LAN, Intel Wi-Fi 6E AX210, 5+ Optical S/PDIF (Realtek® ALC4080 Codec). Supported Operating System Windows 10 64-bit. The MSI MPG Z590M GAMING EDGE WIFI 10th & 11th Gen M-ATX Motherboard has 03 years warranty.
