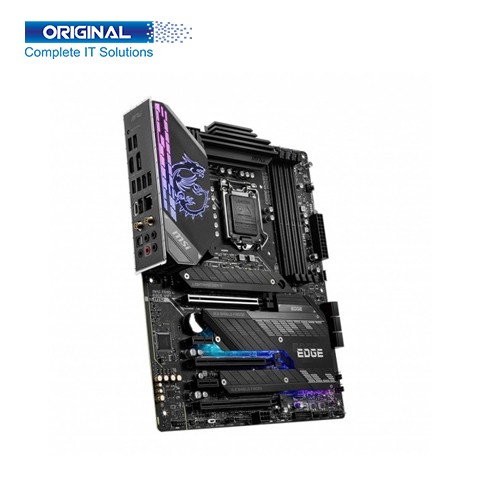

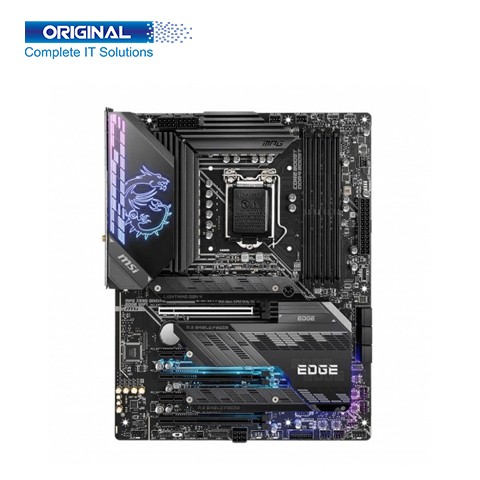

MSI MPG Z590 Gaming EDGE WIFI 10th and 11th Gen Motherboard

Special Price :           ৳35,600
Regular Price(EMI) :           ৳38,700
Status :           In Stock
Brand :           MSI
Product Code :           MPG Z590 Gaming EDGE Wi-Fi

Short Details:

  • • Model: MPG Z590 Gaming EDGE Wi-Fi
  • • Chipset: Intel Z590 Chipset
  • • Socket: LGA1200
  • • Memory Types: DDR4

See More Details

৳35,600

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model MPG Z590 Gaming EDGE Wi-Fi
Brand MSI
Supported Processor Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Chipset Intel Z590 Chipset
Socket LGA1200
Form Factor ATX Form Factor
Memory Information
Memory Types DDR4
Channel Dual Channel
Slot 4x memory slots
Supported Bus Speed 5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Maximum Memory 128GB
Graphics Information
Graphics

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

Expansion Slots
PCI

3x PCIe x16 slots

Support x16/x4/x4

PCI_E1 (From CPU)

Supports up to PCIe 4.0 for 11th Gen Intel CPU

Supports up to PCIe 3.0 for 10th Gen Intel CPU

PCI_E3 & PCI_E5 (From Z590 Chipset)

Support up to PCIe 3.0

2x PCIe 3.0 x1 slots (From Z590 Chipset)

Storage Information
M.2

3x M.2 slots (Key M)

M2_1 slot (From CPU)

Available only on 11th Gen Intel CPU

Supports PCIe 4.0 x4

Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_2 & M2_3 slot (From Z590 Chipset)

Support up to PCIe 3.0 x4 and SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

Intel Optane Memory Ready

SATA 6Gb/s
Connector Information
Internal Connectors

1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

1x 6-pin PCIE power connector

6x SATA 6Gb/s connectors

3x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TBT connector (supports RTD3)

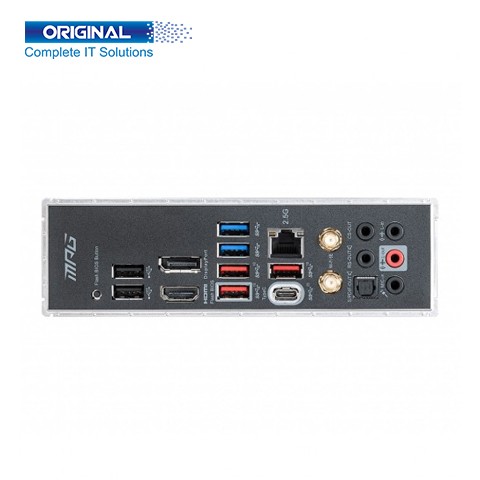

Port Information
USB Port

Intel Z590 Chipset

1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel)

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A port on the back panel and 2 ports are available through the internal connectors)

4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 3 Type-A ports on the back panel)

Hub-GL850G

6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports are available through the internal connectors)

HDMI Port 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
LAN Port 1x Intel® I225-V 2.5G LAN
Audio Port 5+ Optical S/PDIF (Realtek® ALC4080 Codec)
Display Port 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Special Features
WIFI

Intel® Wi-Fi 6E AX210

Operating Systems
Supported OS Support for Windows® 10 64-bit
Warranty
Warranty 03 Years Warranty

Descripton:


MSI MPG Z590 Gaming EDGE WIFI 10th and 11th Gen Motherboard


MSI MPG Z590 Gaming EDGE WIFI 10th and 11th Gen Motherboard. MSI MPG Z590 Gaming EDGE Motherboards come with an upgraded power solution, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming. Buy MSI MPG Z590 Gaming EDGE Motherboard at the best price in Bangladesh.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


MSI MPG Z590 Gaming EDGE WIFI 10th and 11th Gen Motherboard comes with Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors 1, Intel Z590 Chipset with ATX Form Factor and LGA 1200 socket. MSI MPG Z590 Gaming EDGE WIFI Motherboard Maximum Memory 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed Supports 1R 2133/ 2666/ 2933 MHz for Intel 10th Gen Processor (by JEDEC & POR)1, it is supported 1R 2133/ 2666/ 2933/ 3200 MHz for Intel 11th Gen Processor (by JEDEC & POR)1. MSI MPG Z590 Gaming EDGE Wi-Fi Intel Motherboard added with standard Graphics such as 1x HDMI 2.0b with HDR port, also, supports a maximum resolution of 4K 60Hz. MPG Z590 Gaming EDGE Wi-Fi MSI Motherboard Expansion PCI slot is 3x PCIe x16 slots, Supports up to PCIe 4.0 for 11th Gen Intel CPU, 6 x SATA 6 GB/s connectors, 3x M.2 slots also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x front panel audio connector, etc. The MSI MPG Z590 Gaming EDGE Wi-Fi Motherboard has 2 x USB 3.2 Gen 2 10Gbps, 6x USB 2.0 ports, and 1x DisplayPort. The MSI MPG Z590 Gaming EDGE WIFI 10th and 11th Gen Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. You can buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
