MSI MPG B550 Gaming Plus AM4 ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           MSI
Product Code :           MPG B550 Gaming Plus

Short Details:

  • • Model: MPG B550 Gaming Plus
  • • Chipset: AMD B550 Chipset
  • • Socket: AM4
  • • Memory Type: DDR4

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model MPG B550 Gaming Plus
Brand MSI
Supported Processor AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD B550 Chipset
Socket AM4
Form Factor ATX Form Factor;12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Memory Information
Memory Type DDR4
Channel Dual channel
Slot 4 x DDR4 memory slots
Supported Bus Speed

* Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

* Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE

* 1DPC 1R max speed 4400 MHz

* 1DPC 2R max speed 3866 MHz

* 2DPC 1R max speed 4000 MHz

* 2DPC 2R max speed 3600 MHz

* Supports non-ECC UDIMM memory

* Supports ECC UDIMM memory (non-ECC mode)

* Supports un-buffered memory

Maximum Memory 128GB
Graphics Information
Graphics

1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz

1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz

Supports 2-Way AMD CrossFire Technology

Expansion Slots
PCI

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)

1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed

2x PCIe 3.0 x1 slots

Storage Information
M.2

2x M.2 slots (Key M)

M2_1 slot (from AMD Processor)

Supports PCIe 4.0/ 3.0 x4

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_2 slot (from AMD B550 chipset)

Supports PCIe 3.0x4

Supports 2242/ 2260/ 2280 storage devices

SATA 6
RAID 0/1/10
Connector Information
Internal Connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

6x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

1x Clear CMOS jumper

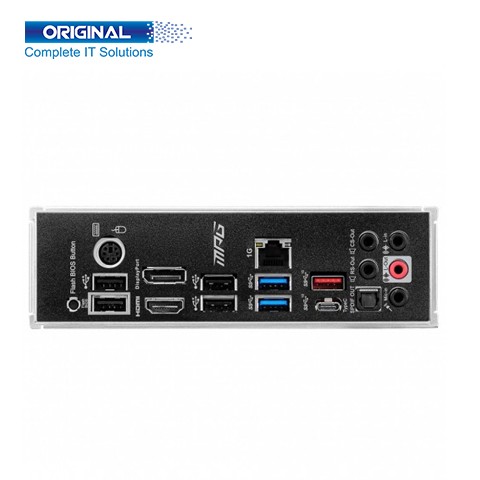

Port Information
USB Port

AMD B550 Chipset

3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)

8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)

2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

HDMI Port 1x HDMI maximum resolution of 4096x2160 @24Hz
DisplayPort 1x DisplayPort maximum resolution of 4096x2160 @60Hz
LAN Port 1x Realtek 8111H Gigabit LAN controller
Audio Port

* Realtek ALC892 Codec

* 7.1-Channel High Definition Audio

* Supports S/PDIF output

Operating Systems
Supported OS Windows® 10 64-bit
Warranty
Warranty 03 Years Warranty

Description:


MSI MPG B550 Gaming Plus AM4 ATX Motherboard


MSI MPG B550 Gaming Plus AM4 ATX Motherboard series assists clients with working more intelligently by conveying a proficient and useful experience. Including stable usefulness and top-notch get-together, PRO series motherboards give streamlined proficient work processes as well as less investigating and life span. MSI MPG B550 Gaming Plus Motherboard let you oversee paces and temperatures for all your framework and CPU fans. All out Fan Control permits you to really look at your essential framework qualities in a worked-on graphical connection point. You can likewise set up temperature focuses for the CPU and motherboard, which will change the fan speeds consequently.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


MSI MPG B550 Gaming Plus AM4 ATX Motherboard Brand is MSI, Supported Processor AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors. MSI B550 Gaming Plus Motherboard Chipset AMD B550 Chipset, Socket AM4,Form Factor ATX Form Factor;12 in. x 9.6 in. (30.5 cm x 24.4 cm),Memory Type DDR4 Channel Dual channel, Slot 4 x DDR4 memory slots, Supported Bus Speed Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz,1DPC 2R max speed 3866 MHz,2DPC 1R max speed 4000 MHz,2DPC 2R max speed 3600 MHz, Supports non-ECC UDIMM memory, Supports ECC UDIMM memory (non-ECC mode),Supports un-buffered memory, Maximum Memory 128GB,Graphics 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz,1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz,Supports 2-Way AMD CrossFire Technology, PCI 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1),1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed,2x PCIe 3.0 x1 slots,M.2 2x M.2 slots (Key M),M2_1 slot (from AMD Processor),Supports PCIe 4.0/ 3.0 x4,Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280/ 22110 storage devices,M2_2 slot (from AMD B550 chipset),Supports PCIe 3.0x4,Supports 2242/ 2260/ 2280 storage devices, SATA 6,RAID 0/1/10,Internal Connectors 1x 24-pin ATX main power connector,1x 8-pin ATX 12V power connector,6x SATA 6Gb/s connectors,2x M.2 slots (M-Key),1x USB 3.2 Gen 1 5Gbps Type-C port,1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports),2x USB 2.0 connectors (supports additional 4 USB 2.0 ports),1x 4-pin CPU fan connector,1x 4-pin water-pump fan connector,6x 4-pin system fan connectors,1x Front panel audio connector,2x System panel connectors,1x Chassis Intrusion connector,1x 4-pin RGB LED connector,2x 3-pin RAINBOW LED connectors,1x Clear CMOS jumper, USB Port AMD B550 Chipset,3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector),8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors),AMD Processor,2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel),2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel, HDMI Port 1x HDMI maximum resolution of 4096x2160 @24Hz,DisplayPort 1x DisplayPort maximum resolution of 4096x2160 @60Hz,LAN Port 1x Realtek 8111H Gigabit LAN controller, Audio Port Realtek ALC892 Codec,7.1-Channel High Definition Audio, Supports S/PDIF output. The Supported OS Windows® 10 64-bit.The MSI MPG B550 Gaming Plus AM4 ATX Motherboard 03 Years Warranty.
