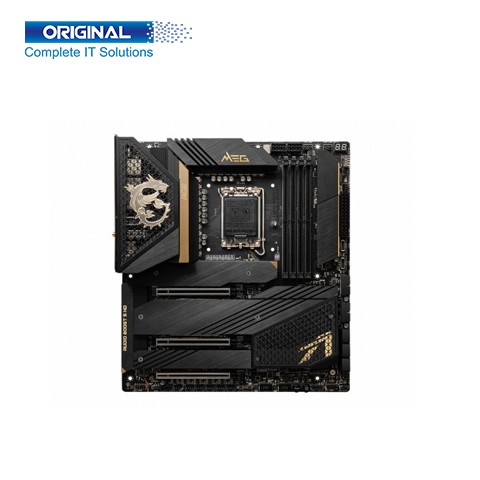

MSI MEG Z690 ACE 12th Gen Intel E-ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           MSI
Product Code :           MEG Z690 ACE

Short Details:

  • • Model: MEG Z690 ACE
  • • Chipset: Intel® Z690 Chipset
  • • Socket: LGA 1700
  • • Memory Type: DDR5

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

MEG Z690 ACE

Brand MSI
Supported Processor Supports 12th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors
Chipset Intel® Z690 Chipset
Socket LGA 1700
Bios Flash BIOS Button
Form Factor E-ATX Form Factor; 30.5 cm x 27.7 cm
Memory Information
Memory Type

DDR5

Channel Dual-channel
Slot 4x DDR5 memory slots
Supported Bus Speed

* Supports 1R 4800 MHz (by JEDEC & POR)

* Max. overclocking frequency:

1DPC 1R Max speed up to 6666+ MHz

1DPC 2R Max speed up to 5600+ MHz

2DPC 1R Max speed up to 4000+ MHz

2DPC 2R Max speed up to 4000+ MHz

* Supports Intel XMP 3.0 OC

* Supports Dual Controller Dual-Channel mode

* Supports non-ECC, un-buffered memory

Maximum Memory UP to 128 GB
Graphics Information
Graphics

1x Type-C Display port, supporting a maximum resolution of 4K 60Hz

Expansion Slots
PCI

3x PCIe x16 slots

Supports x16/x0/x4, x8/x8/x4

PCI_E1 & PCI_E2 slots (From CPU)

PCI_E1 supports up to PCIe 5.0 x16

PCI_E2 supports up to PCIe 5.0 x8

PCI_E3 1 (From Z690 chipset)

Supports up to PCIe 4.0 x4

Storage Information
M.2

5x M.2 slots (Key M)

M2_1 slot (From CPU)

Supports up to PCIe 4.0 x4

Supports 2260/ 2280/ 22110 storage devices

M2_2 & M2_3 slots (From Z690 chipset)

M2_2 slot supports up to PCIe 4.0 x4

M2_3 slot supports up to PCIe 3.0 x4

Supports 2260/ 2280 storage devices

M2_4 & M2_5 1 slots (From Z690 chipset)

Supports up to PCIe 4.0 x4

Supports up to SATA 6Gb/s

M2_4 slot supports 2280/ 22110 storage devices

M2_5 slot supports 2260/ 2280 storage devices

M2_2~5 slots support Intel® Optane™ Memory

SATA

* 6x SATA 6Gb/s ports (From Z690 chipset)

SATA5~8 (From Z690 chipset)

SATAA~B (From ASM1061)

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1

Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices

Connector Information
Internal Connectors

1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

6x SATA 6Gb/s connectors

5x M.2 slots (M-Key)

2x USB 3.2 Gen 2x2 20Gbps Type-C ports

2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x 3-pin Water Flow connector

2x 2-pin Thermal sensor connectors

1x TPM module connector

1x Tuning Controller connector

Port Information
USB Port

* 2x USB3.2 Gen2x2 20Gbps ports (2 Type-C internal connectors)

* 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C port on the back panel, 3 Type-A ports on the back panel)

* 4x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

* 4x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector

* 4x USB 2.0 Type-A ports available through the internal connectors

HDMI Port 1x HDMI 2.1
DisplayPort 1x Type-C Display port, supporting a maximum resolution of 4K 60Hz
LAN Port 2x Intel® I225V 2.5Gbps LAN controllers
Audio Port 1x Front panel audio connector
S/PDIF 1 x optical S/PDIF Out connector
Special Features
Wi-Fi

Intel Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.2 2, FIPS, FISMA

LED FEATURE

1x EZ LED Control switch

1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

1x 3-pin CORSAIR LED connector

4x EZ Debug LED

1x 2-Digit Debug Code LED

Operating Systems
Supported OS

Windows 11 64-bit

Windows 10 64-bit

Warranty
Warranty

3 Years Warranty

Description:


MSI MEG Z690 ACE 12th Gen Intel E-ATX Motherboard


MSI MEG Z690 ACE 12th Gen Intel E-ATX Motherboard. Its delivery and dominant thermal design, are glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake performance in all its gaming glory. It ensures maximum Turbo Boost and overclocking performance of Intel's new generation CPU.

For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.

MSI MEG Z690 ACE 12th Gen Intel E-ATX Motherboard, Model is MEG Z690 ACE. The Brand is MSI. The Motherboard Supported Processor 12th Generation Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors. Intel® Z690 Chipset. LGA1700 socket. Flash BIOS Button. The MSI MEG Z690 ACE E-ATX Motherboard E-ATX Form Factor; 30.5 cm x 27.7 cm. Memory Type DDR5, Channel Dual channel, Slot 4 x DDR5 Memory, Supports 1R 4800 MHz (by JEDEC & POR), 1DPC 1R Max speeds up to 6666+ MHz, 1DPC 2R Max speeds up to 5600+ MHz, 2DPC 1R Max speeds up to 4000+ MHz, 2DPC 2R Max speeds up to 4000+ MHz. Maximum Memory up to 128 GB. The MSI MEG Z690 ACE Motherboard Graphics 1x Type-C Display port, supporting a maximum resolution of 4K 60Hz, Support for 1x HDMI 2.1, 1x Type-C Display port, supporting a maximum resolution of 4K 60Hz. PCI. 3x PCIe x16 slots, Supports x16/x0/x4, x8/x8/x4, PCI_E1 & PCI_E2 slots (From CPU), PCI_E3 1 (From Z690 chipset). 5x M.2 slots (M2_1 slot (From CPU), M2_2 & M2_3 slots (From Z690 chipset), M2_4 & M2_5 1 slots (From Z690 chipset), M2_2~5 slots support Intel® Optane™ Memory). SATA 6 x SATA 6Gb/s connectors. RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10. Internal Connectors 1x 24-pin ATX main power connector,2x 8-pin ATX 12V power connectors, 6x SATA 6Gb/s connectors, 5x M.2 slots (M-Key), 2x USB 3.2 Gen 2x2 20Gbps Type-C ports, 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 6x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x 3-pin Water Flow connector, 2x 2-pin Thermal sensor connectors, 1x TPM module connector, 1x Tuning Controller connector. Wireless Communication module Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.2 2, FIPS, FISMA. LED Feature is 1x EZ LED Control switch, 1x 4-pin RGB LED connector, 2x 3-pin RAINBOW LED connectors, 1x 3-pin CORSAIR LED connector, 4x EZ Debug LED, 1x 2-Digit Debug Code LED. 2x USB3.2 Gen2x2 20Gbps ports (2 Type-C internal connectors), 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C port on the back panel, 3 Type-A ports on the back panel), 4x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel, 4x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connectors, 4x USB 2.0 Type-A ports available through the internal connectors, 1 x HDMI port, 1 x DisplayPort, 2x Intel I225V 2.5Gbps LAN controllers, 1 x optical S/PDIF Out connector, 71x Front panel audio connector. Support for Windows 11 64-bit, and Windows 10 64-bit. MSI MEG Z690 ACE 12th Gen Intel E-ATX Motherboard has Three years warranty.
