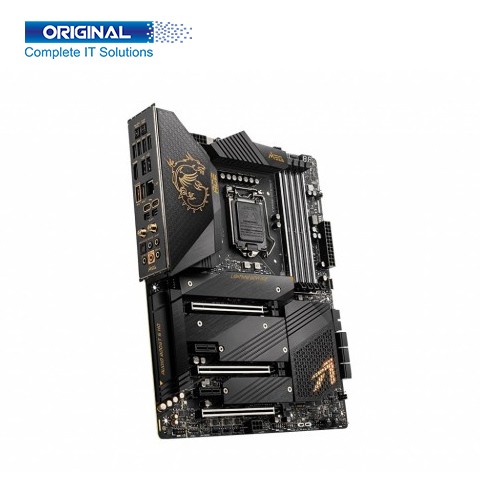

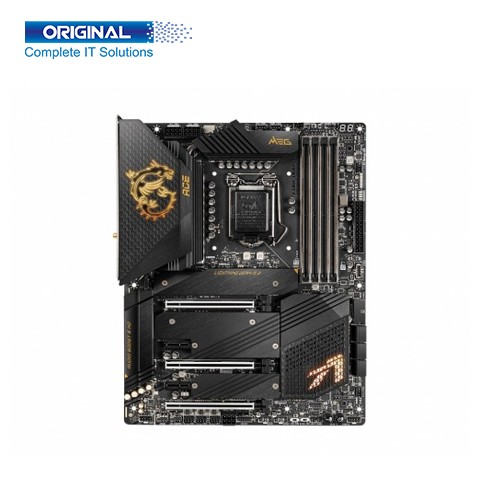

MSI MEG Z590 ACE Gaming 10th & 11th Gen ATX Motherboard

Special Price :           ৳53,200
Regular Price(EMI) :           ৳55,500
Status :           In Stock
Brand :           MSI
Product Code :           MEG Z590 ACE

Short Details:

  • • Model: MSI MEG Z590 ACE
  • • Chipset: Intel Z590 Chipset
  • • Socket: LGA 1200
  • • Memory Types: DDR4

See More Details

৳53,200

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model MSI MEG Z590 ACE
Brand MSI
Supported Processor Supports 10th/11th Gen Intel® Core, Pentium® Gold and Celeron® Processors
Chipset Intel® Z590 Chipset
Socket LGA1200
Form Factor ATX Form Factor
Memory Information
Memory Types DDR4
Channel Dual-Channel
Slot 4x DDR4 memory slots
Supported Bus Speed

* Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1

* Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR

Maximum Memory 128GB
Graphics Information
Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1
Expansion Slots
PCI

* 3x PCIe x16 slots

* Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4

* PCI_E1 & PCI_E3 slots (From CPU)

* Support up to PCIe 4.0 for 11th Gen Intel® CPU

* Support up to PCIe 3.0 for 10th Gen Intel® CPU

* PCI_E5 slot (From Z590 chipset)

* Supports up to PCIe 3.0

* 2x PCIe 3.0 x1 slots (From Z590 chipset)

Storage Information
M.2

* M2_1 slot (from CPU)

* Available only on 11th Gen Intel® CPU

* M2_21, M2_32, M2_4 slots (from Z590 chipset)

* M2_2 , M2_3 & M2_4 support up to PCIe 3.0 x43

* M2_2 & M2_3 support up to SATA 6Gb/s

* M2_4 slot supports PCIe only.

* Supports 2242/ 2260/ 2280 storage devices

SATA 6x SATA 6Gb/s ports (from Z590 chipset)
RAID

* Intel® Optane™ Memory Ready4

* Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Connector Information
Internal Connectors

* 1x 24-pin ATX main power connector

* 2x 8-pin ATX 12V power connectors

* 1x 6-pin PCIE power connector

* 6x SATA 6Gb/s connectors

* 4x M.2 slots (M-Key)

* 1x USB 3.2 Gen 2 10Gbps Type-C connector

* 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

* 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

* 1x 4-pin CPU fan connector

* 1x 4-pin water-pump fan connector

* 6x 4-pin system fan connectors

* 1x Front panel audio connector

* 2x System panel connectors

* 1x Chassis Intrusion connector

* 1x TPM module connector

* 1x Tuning Controller connector

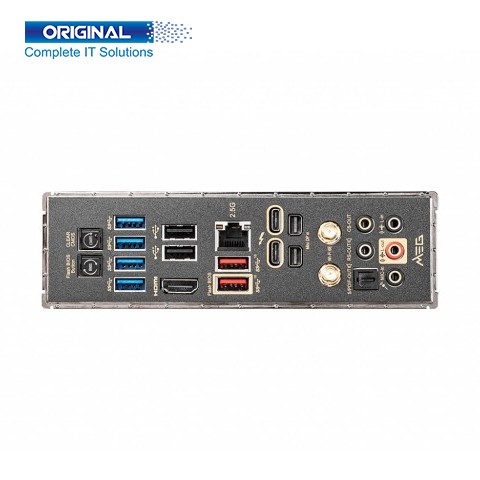

Port Information
USB Port

* Intel® Z590 Chipset

* 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector)

* 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector)

* 2x USB 2.0 Type-A ports on the back panel

* Hub-GL850G

* 4x USB 2.0 ports through internal USB connectors

HDMI Port 1x HDMI
LAN Port 1x Intel® I225V 2.5Gbps LAN controller
Audio Port 1x Front panel audio connector
Special Features
Led Feature

* 1x EZ LED Control switch

* 1x 2-Digit Debug Code LED

* 4x EZ Debug LED

* 1x 4-pin RGB LED connector

* 2x 3-pin RAINBOW LED connectors

* 1x 3-pin JCORSAIR LED connector

WIFI Intel Wi-Fi 6E AX210
Operating Systems
Supported OS Support for Windows® 10 64-bit
Warranty
Warranty 03 Years Warranty

Descripton:


MSI MEG Z590 ACE Gaming 10th & 11th Gen ATX Motherboard


MSI MEG Z590 ACE Gaming 10th & 11th Gen ATX Motherboard. MSI MEG Z590 ACE Series Motherboards come with an upgraded power solution, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming. Buy MSI MEG Z590 ACE Gaming ATX Motherboard at the best price in BD.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


MSI MEG Z590 ACE Gaming 10th & 11th Gen ATX Motherboard comes with Supports 10th/11th Gen Intel Core, Pentium Gold and Celeron Processors, Intel Z590 Chipset with ATX Form Factor, and LGA 1200 socket. MSI MEG Z590 ACE ATX Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed Supports 1R 2133/ 2666/ 2933 MHz for Intel 10th Gen Processor (by JEDEC & POR)1, Also, It supports 1R 2133/ 2666/ 2933/ 3200 MHz for Intel 11th Gen Processor (by JEDEC & POR). MSI MEG Z590 ACE Motherboard comes with standard Graphics such as 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz. MEG Z590 ACE MSI Motherboard Expansion PCI Slots is 3x PCIe x16 slots, Supports up to PCIe 4.0 for 11th Gen Intel CPU, 6 x SATA 6 GB/s connectors and  M2_21, M2_32, M2_4 slots (from Z590 chipset), M2_2 , M2_3 & M2_4 support up to PCIe 3.0 x43, M2_2 & M2_3 support up to SATA 6Gb/s. Support for RAID 0, RAID 1, RAID 10 devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x front panel audio connector, 1 x 4 pin CPU fan header, etc. The MSI MEG Z590 ACE Motherboard has 2 x USB 3.2 Gen 2 10Gbps, 6x USB 2.0 ports, and 1x DisplayPort. The MSI MEG Z590 ACE Motherboard Support for Windows 10 64-bit. You can enjoy a 03 Years Warranty. You can buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
