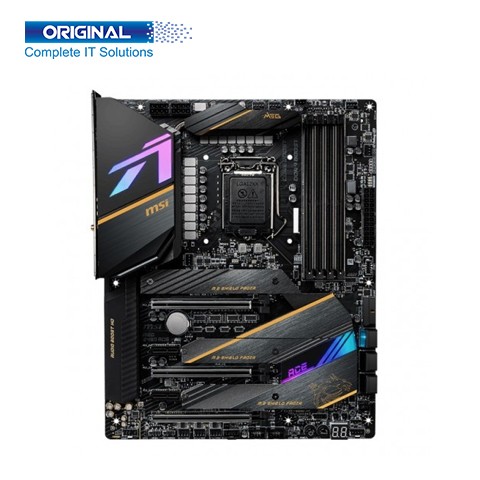

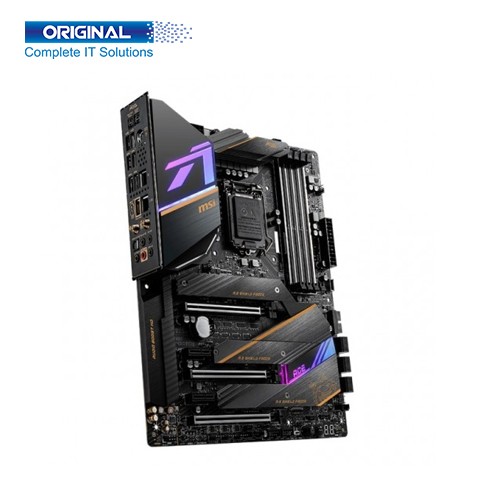

MSI MEG Z490 ACE 10th Gen ATX Gaming Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           MSI
Product Code :           MEG Z490 ACE

Short Details:

  • • Model: MSI MEG Z490 ACE
  • • Chipset: Intel® Z490 Chipset
  • • Socket: LGA1200
  • • Memory Types: DDR4

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

MSI MEG Z490 ACE

Brand MSI
Supported Processor Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
Chipset Intel® Z490 Chipset
Socket LGA1200
Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

ATX Form Factor

Memory Information
Memory Types

DDR4

Channel Dual Channel
Slot 4x DDR4 memory slots
Supported Bus Speed

Supports 1R 2133/2666/2933 MHz

1DPC 1R Max speed up to 5000+ MHz

1DPC 2R Max speed up to 4500+ MHz

2DPC 1R Max speed up to 4400+ MHz

2DPC 2R Max speed up to 4000+ MHz

Maximum Memory up to 128GB
Graphics Information
Graphics

Supports 2-Way NVIDIA® SLI™ Technology

Supports 3-Way AMD® CrossFire™ Technology

Expansion Slots
PCI

3x PCIe 3.0 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4)

PCI_E1 & PCI_E3 slots (From CPU)

Support up to PCIe 4.0 for 11th Gen Intel® CPU

Support up to PCIe 3.0 for 10th Gen Intel® CPU

PCI_E5 slot (From chipset)

Supports up to PCIe 3.0

2x PCIe x1 slots (from chipset)

Storage Information
M.2

3x M.2 slots (Key M)

SATA 6x SATA 6Gb/s ports
RAID

Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices

Connector Information
Internal Connectors

1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

6x SATA 6Gb/s connectors

3x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump connector

6x 4-pin system fan connectors

1x front panel audio connector

2x system panel connectors

1x Chassis Intrusion connector

1x slow mode jumper

1x power button

1x reset button

1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

1x 3-pin CORSAIR LED connector

1x RTD3 connector

1x TBT connector

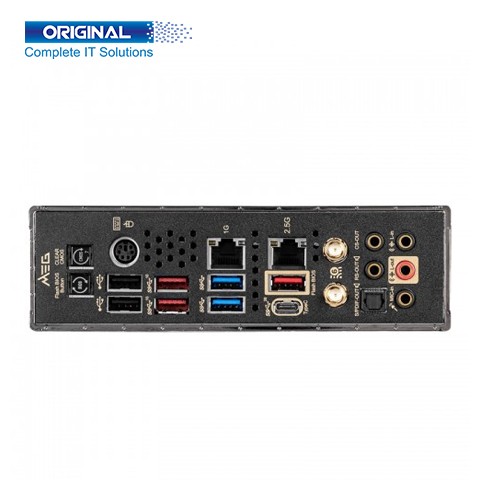

Port Information
PS/2 Port

PS/2 Keyboard / Mouse Port

USB Port

4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector)

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector)

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

ASMedia® 3241 chipset

1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

LAN Port

1x Realtek® 8125B 2.5G LAN controller

1x Intel® I219V 1G LAN controller

Audio Port

7.1-Channel High Definition Audio

Supports Optical S/PDIF output

CMOS Button Clear CMOS Button
Wi-Fi /Bluetooth Antenna

Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps

WiFi 6

Supports Bluetooth® 5.1 , FIPS, FISMA

The Wireless module is pre-install in the M2 (Key-E) slot

BIOS Button Flash BIOS Button
S/PDIF-Out Optical S/PDIF-Out
Operating Systems
Supported OS

Support for Windows® 10 64-bit

Warranty
Warranty

03 Years Warranty

Description:


MSI MEG Z490 ACE 10th Gen ATX Gaming Motherboard


MSI MEG Z490 ACE 10th Gen ATX Gaming Motherboard. MSI MEG Z490 ACE Series Motherboards come with an upgraded power solution, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming. Buy MSI MEG Z490 Gaming DDR4 10th Gen  ATX Motherboard at the best price in BD.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


MSI MEG Z490 ACE 10th Gen ATX Gaming Motherboard comes with 10th Gen Intel Core, 11th Gen Intel Core Pentium Gold and Celeron processors, Intel Z490 Chipset with 30.5 cm x 24.4 cm ATX Form Factor. MSI MEG Z490 ACE AMD Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 memory slots, Supported Bus Speed Supports 1R 2133/2666/2933 MHz, 1DPC 1R Max speed up to 5000+ MHz, 1DPC 2R Max speeds up to 4500+ MHz, 2DPC 1R Max speeds up to 4400+ MHz, 2DPC 2R Max speeds up to 4000+ MHz. It is MSI MEG Z490 ACE Motherboard comes with standard Graphics such as Supports 2-Way NVIDIA SLI Technology, Supports 3-Way AMD CrossFire Technology. MSI MEG Z490 ACE DDR4 Motherboard Expansion PCI slot is 1x PCIe 3.0 x1 slot 1, 1x PCIe 4.0/3.0 x16 slot,64 x SATA 6 GB/s connectors and 3 x M.2 connector, Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x front panel audio connector, etc. MEG Z490 ACE MSI Motherboard has 2 x USB 3.2 Gen 2 10Gbps, 6x USB 2.0 ports, 1 x Display port maximum resolution of 4096x2160 @60Hz, 1x Realtek RTL8111H LAN controller, and High Definition Audio with 7.1-Channel High Definition Audio also Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6, Supports Bluetooth® 5.1, FIPS, FISMA, The Wireless module is pre-install in the M2 (Key-E) slot. The MSI MEG Z490 ACE 10th Gen ATX Gaming Motherboard Support for Windows 10 64-bit. You can enjoy a 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
