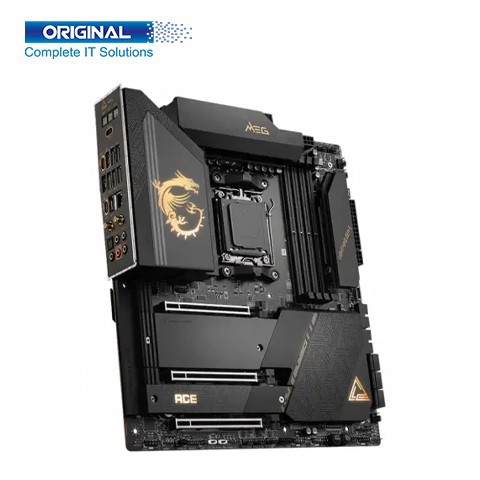

MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard

Special Price :           ৳97,000
Regular Price(EMI) :           ৳104,500
Status :           In Stock
Brand :           MSI
Product Code :           MEG X670E ACE

Short Details:

  • • Model: MSI MEG X670E ACE
  • • Socket: AM5
  • • Memory Types: DDR5
  • • Maximum Memory: 128GB

See More Details

৳97,000

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model MSI MEG X670E ACE
Brand MSI
Supported Processor Supports AMD Ryzen 7000 Series Desktop Processors
Chipset AMD X670
Socket AM5
Form Factor E-ATX 277mmx304.8mm
Memory Information
Memory Types DDR5
Channel Dual-Channel
Slot 4x DDR5
Supported Bus Speed

Memory Support DDR5 6666+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6666+ MHz

• 1DPC 2R Max speed up to 6000+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 4000+ MHz

Maximum Memory 128GB
Graphics Information
Graphics

1x Type-C DisplayPort

Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz*

Expansion Slots
PCI

3x PCI-E x16 slot
Supports x16/x0/x4, x8/x8/x4
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 PCIe 5.0 supports up to x4 (From CPU)

Storage Information
M.2

4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices

SATA 6x SATA 6G port
RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*

Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

Connector Information
Internal Connectors

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Front Type-C Quick Charge Connector(PD_PWR1)

1x CPU Fan

2x Pump Fan

5x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Water Flow connector

1x Slow Mode Booting Jumper(JSLOW)

1x Front Audio (JAUD)

2x Thermal Sensor connectors(T_SEN)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0

4x USB 3.2 Gen1 Type A

1x USB 3.2 Gen2 Type C

1x USB 3.2 Gen 2x2 Type-C

1x USB 3.2 Gen 2x2 Type C

V-check point

Port Information
USB Port

4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Front)
8x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
2x USB 3.2 Gen2x2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Front)

LAN Port 10G Super LAN
Audio Port

Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA

7.1-Channel High Definition Audio

Flashback Button Flash BIOS Button
SPDIF Out Port 1x S/PDIF-Out
Clear CMOS Button 1x Clear CMOS Button
Smart Button 1X Smart Button
Wi-Fi Information
WIRELESS / BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2**

Others Information
LED FEATURE

1x EZ LED Control switch

4x EZ Debug LED

1x 2-Digit Debug Code LED

Operating System
Supported OS Support for Windows 11 64-bit, Windows 10 64-bit
Warranty
Warranty 03 Years Warranty

Descripton:


MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard


MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the AMD X670 chipset by combining elite hardware system support and premium durability.


MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard. The Model is MSI MEG X670E ACE, Brand MSI, Supported Processor Supports AMD Ryzen 7000 Series Desktop Processors, Chipset AMD X670, Socket AM5, Form Factor E-ATX 277mmx304.8mm, Memory Types DDR5, Channel Dual-Channel, Slot 4x DDR5, Supported Bus Speed Memory Support DDR5 6666+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz, Max. overclocking frequency:, • 1DPC 1R Max speed up to 6666+ MHz• 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 4000+ MHz, Maximum Memory 128GB, Graphics 1x Type-C DisplayPort, Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz*, PCI 3x PCI-E x16 slot, Supports 16/x0/x4, x8/x8/x4, PCI_E1 PCIe 5.0 supports up to x16 (From CPU), PCI_E2 PCIe 5.0 supports up to x8 (From CPU), PCI_E3 PCIe 5.0 supports up to x4 (From CPU), M.2 4x M.2 slot, M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices, SATA 6x SATA 6G port, RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*, Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices, USB Port 4x USB 2.0 (Front), 4x USB 3.2 Gen1 Type A (Front), 8x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Rear), 1x USB 3.2 Gen2 Type C (Front), 2x USB 3.2 Gen2x2 Type C (Rear), 1x USB 3.2 Gen2x2 Type C (Front), WIRELESS / BLUETOOTH AMD Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.2. The MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard has a 03 Years Warranty.
