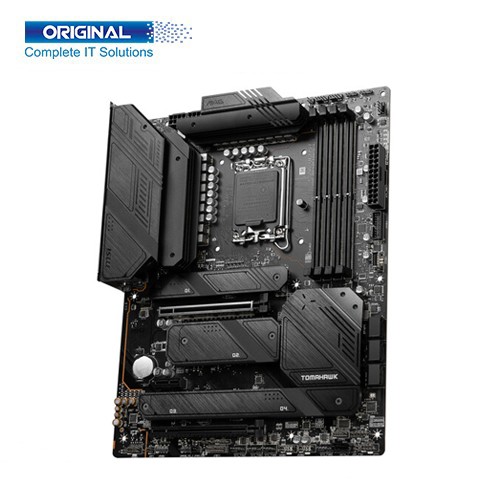

MSI MAG Z790 TOMAHAWK WIFI DDR4 12th & 13th Gen Motherboard

Description:

MSI MAG Z790 TOMAHAWK WIFI DDR4 12th & 13th Gen Motherboard

MSI MAG Z790 TOMAHAWK WIFI DDR4 12th & 13th Gen Motherboard. This is designed to support the most popular All-In-One & customized water-cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed.

MSI MAG Z790 TOMAHAWK WIFI DDR4 12th & 13th Gen Motherboard. The Model is MSI MAG Z790 TOMAHAWK WIFI DDR4, Brand MSI, Supported Processor Supports 12th/13th Gen Intel Core Pentium Gold and Celeron Processors, Chipset INTEL Z790, Socket LGA1700, Form Factor ATX Form Factor 243.84mmx304.8mm, Memory Types DDR4, Channel Dual-Channel, Slot 4x DDR4, Supported Bus Speed Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR), Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz, • 1DPC 2R Max speed up to 4800+ MHz, • 2DPC 1R Max speed up to 4400+ MHz, • 2DPC 2R Max speed up to 4000+ MHz, Maximum Memory 128GB, Graphics, 1x HDMI 1x DisplayPort, Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*, Support DP 1.4, the maximum resolution of 8K 60Hz*, PCI 2x PCI-E x16 slot, Supports x16/x4, 1x PCI-E x1 slot, PCI_E1 PCIe 5.0 supports up to x16 (From CPU), PCI_E2 PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 PCIe 4.0 supports up to x4 (From Chipset), M.2 4x M.2 slot, M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2110/2280/2260 devices, M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, SATA 7x SATA 6G port, RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices. It is Internal Connectors 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2),1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0, 2x USB 3.2 Gen1 Type, 1x USB 3.2 Gen2 Type C, HDMI Port HDMI™ 2.1 Port, USB Port USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-C, USB 3.2 Gen 2x2 20Gbps Type-C, Display Port DisplayPort 1.4, LAN Port 2.5G LAN Port, Audio Port 7.1-Channel USB High Performance Audio, HD Audio Connectors Antenna Wi-Fi / Bluetooth Antenna, Flashback Button 1x Flash BIOS Button, SPDIF Out Port Optical S/PDIF OUT, Clear CMOS Button 1x Clear CMOS Button. This WIRELESS / BLUETOOTH Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax. The MSI MAG Z790 TOMAHAWK WIFI DDR4 12th & 13th Gen Motherboard has a 03 Years Warranty.
