| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | MAG Z590 Tomahawk WIFI |
| General Information | ||

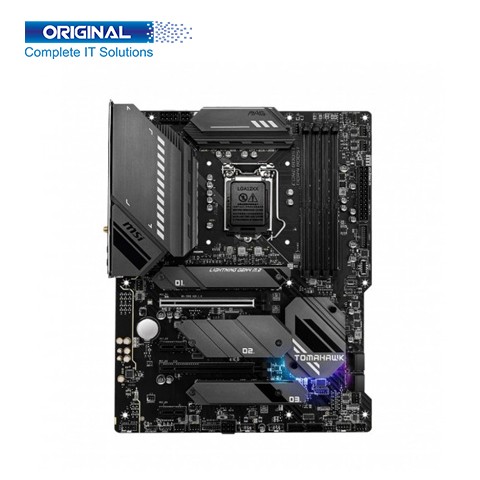

| Model | MSI MAG Z590 Tomahawk WIFI |
|
| Brand | MSI | |
| Supported Processor | Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors Processor socket LGA1200 | |
| Chipset | Intel Z590 Chipset | |
| Socket | LGA 1200 | |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4x memory slots | |
| Supported Bus Speed | 5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz | |
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
|
| Expansion Slots | ||
| PCI | 2x PCIe x16 slots 1x PCIe 3.0 x16 slot (from CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU PCI_E3 (From Z590 chipset) Support up to PCIe 3.0 x4 2x PCIe 3.0 x1 slots (From Z590 chipset) |
|
| Storage Information | ||
| M.2 | 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slot (From Z590 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
|
| SATA | up to 6Gb/s | |
| Connector Information | ||
| Internal Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
|
| Port Information | ||
| USB Port | Intel Z590 Chipset 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector) 1x USB 2.0 Type-A port on the back panel Hub-GL850G 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors) |
|
| HDMI Port | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz | |
| LAN Port | 1x Intel I225-V 2.5Gbps LAN controller | |
| Audio Port | Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Display Port | 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz | |
| Special Features | ||
| WIFI | 1x Intel Wi-Fi 6E AX210 1x Intel The Wireless module is pre-installed in the M.2 (Key-E slot) Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA |
|
| Operating Systems | ||
| Supported OS | Support for Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
MSI MAG Z590 Tomahawk WIFI 11th Gen Intel Motherboard helps users work smarter by delivering an efficient and productive experience. It is MSI MAG Z590 Tomahawk WIFI Motherboard that let you manage speeds and temperatures for all your system and CPU fans.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
MSI MAG Z590 Tomahawk WIFI 11th Gen Intel Motherboard comes with Supports 10th Gen, 11th Gen Intel Core, Pentium Gold and Celeron processors, Intel Z590 Chipset with 30.5 cm x 24.4 cm ATX Form Factor and LGA 1200 socket. MSI MAG Z590 Tomahawk WIFI DDR4 Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 5333(OC)/ 5200(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz. MSI MAG Z590 Tomahawk WIFI Motherboard comes with standard Graphics such as 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz, 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz. MAG Z590 Tomahawk WIFI MSI Motherboard Expansion PCI Slots is 2 x PCIe x16 slots, Supports up to PCIe 3.0, 6 x SATA 6 GB/s connectors, 3 x M.2 slots also various Internal Connectors such as 1 x 24-pin ATX main power connector,1 x 4 pin CPU fan header, 1 x front panel audio connector, etc. MSI MAG Z590 Tomahawk WIFI Motherboard has 2 x USB 3.2 Gen 2 10Gbps, 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz, 5x USB 2.0 ports, and 1x DisplayPort, 7.1-Channel High Definition Audio. The MSI MAG Z590 Tomahawk WIFI 11th Gen Intel Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
