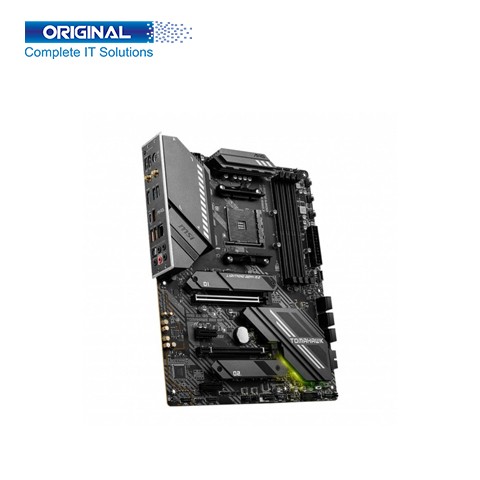

MSI MAG X570S TOMAHAWK MAX WiFi AMD AM4 ATX Motherboard

Special Price :           ৳28,600
Regular Price(EMI) :           ৳30,500
Status :           In Stock
Brand :           MSI
Product Code :           MAG X570S

Short Details:

  • • Model: MAG X570S TOMAHAWK MAX WiFi
  • • Chipset: AMD X570 Chipset
  • • Socket: AM4
  • • Form Factor: 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

See More Details

৳28,600

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model MAG X570S TOMAHAWK MAX WiFi
Brand MSI
Supported Processor Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Chipset AMD X570 Chipset
Socket AM4
Form Factor ATX
Memory Information
Memory Type DDR4
Channel Dual Channel
Slot 4 x DDR4 memory slots
Supported Bus Speed

* Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1

* Max overclocking frequency by A-XMP OC mode:

For Ryzen 5000 G-Series & 4000 G-Series processors

* 1DPC 1R Max speed up to 5100 MHz

* 1DPC 2R Max speed up to 4000 MHz

* 2DPC 1R Max speed up to 4266 MHz

* 2DPC 2R Max speed up to 3600 MHz

For Ryzen 5000 Series & 3000 Series processors

* 1DPC 1R Max speed up to 5100 MHz

* 1DPC 2R Max speed up to 3866 MHz

* 2DPC 1R Max speed up to 4000 MHz

* 2DPC 2R Max speed up to 3600 MHz

Maximum Memory Up to 128GB
Graphics Information
Graphics

1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz

Supports AMD CrossFire Technology

Expansion Slots
PCI

Supports PCIe 4.0 / PCIe 3.0 specification

PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors

1x PCIe x16 slot (From processor)

PCI_E1 supports PCIe 4.0/ 3.0 x16

1x PCIe x16 slot (From X570 chipset)

PCI_E3 supports PCIe 4.0/ 3.0 x4

2x PCIe 3.0 x1 slots (From X570 chipset)

Storage Information
M.2 2x M.2 slots (Key M)
SATA 6x SATA 6Gb/s ports (from AMD X570 Chipset)
RAID 0/1/10
Connector Information
Internal Connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x 4-pin ATX 12V power connector

6x SATA 6Gb/s connectors

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)

1x USB 3.2 Gen 2 10Gbps Type-C port

1x 4-pin CPU fan connector

1x 4-pin water-pump connector

4x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x TPM module connector

1x Serial port connector

1x Chassis Intrusion connector

Port Information
USB Port

AMD X570 Chipset

3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)

4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD Processor

2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A & Type-C)

2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

HDMI Port 1 x HDMI 2.1
LAN Port 1x Realtek 8125B 2.5Gbps LAN Controller
Audio Port Realtek® ALC4080 Codec
Special Features
Warless Lan & Bluetooth

Intel® Wi-Fi 6E AX210

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.2, FIPS, FISMA

Operating Systems
Supported OS Support for Windows® 10 64-bit
Warranty
Warranty 3 Years

Descripton:


MSI MAG X570S TOMAHAWK MAX WiFi AMD AM4 ATX Motherboard


MSI MAG X570S TOMAHAWK MAX WiFi AMD AM4 ATX Motherboard series assists clients with working more intelligently by conveying a proficient and useful experience. Including stable usefulness and top-notch get-together, PRO series motherboards give streamlined proficient work processes as well as less investigating and life span. MSI motherboards let you oversee paces and temperatures for all your framework and CPU fans. All out Fan Control permits you to really look at your essential framework qualities in a worked-on graphical connection point. You can likewise set up 4 temperature focuses for the CPU and motherboard, which will change the fan speeds consequently. MSI PRO Series motherboards support all the most recent stockpiling norms, which permits clients to interface with any super quick stockpiling gadget. Higher effectiveness makes your work more straightforward.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


MSI MAG X570S TOMAHAWK MAX WiFi AMD AM4 ATX Motherboard Brand is MSI, Supported Processor Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors, Chipset AMD X570 Chipset, Socket AM4, Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm). MSI MAG X570S TOMAHAWK MAX ATX Motherboard Memory Type DDR4 Channel Dual Channel, Slot 4 x DDR4 memory slots Supported Bus Speed Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1,Max overclocking frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors,1DPC 1R Max speed up to 5100 MHz,1DPC 2R Max speed up to 4000 MHz,2DPC 1R Max speed up to 4266 MHz, 2DPC 2R Max speed up to 3600 MHz, For Ryzen 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz,1DPC 2R Max speed up to 3866 MHz,2DPC 1R Max speed up to 4000 MHz,2DPC 2R Max speed up to 3600 MHz, Maximum Memory Up to 128GB,Graphics 1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz,PCI Supports PCIe 4.0 / PCIe 3.0 specification, PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors,1x PCIe x16 slot (From processor),PCI_E1 supports PCIe 4.0/ 3.0 x16,1x PCIe x16 slot (From X570 chipset),PCI_E3 supports PCIe 4.0/ 3.0 x4,2x PCIe 3.0 x1 slots (From X570 chipset),Supports AMD CrossFire Technology,M.2 2x M.2 slots (Key M),SATA 6x SATA 6Gb/s ports (from AMD X570 Chipset),RAID 0/1/10,Internal Connectors 1x 24-pin ATX main power connector,1x 8-pin ATX 12V power connector,1x 4-pin ATX 12V power connector,6x SATA 6Gb/s connectors,2x USB 2.0 connectors (supports additional 4 USB 2.0 ports),2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports),1x USB 3.2 Gen 2 10Gbps Type-C port,1x 4-pin CPU fan connector,1x 4-pin water-pump connector,4x 4-pin system fan connectors,1x Front panel audio connector,2x System panel connectors,1x Chassis Intrusion connector,1x TPM module connector,1x Serial port connector,1x Chassis Intrusion connector, USB Port AMD X570 Chipset,3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector),4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors,6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors),AMD Processor,2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A & Type-C),2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel, HDMI Port 1 x HDMI 2.1,LAN Port 1x Realtek 8125B 2.5Gbps LAN Controller, Audio Port Realtek® ALC4080 Codec, Warless Lan & Bluetooth Intel® Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth 5.2, FIPS, FISMA. MSI X570S TOMAHAWK MAX ATX Motherboard Supported OS Support for Windows® 10 64-bit.MSI MAG X570S TOMAHAWK MAX WiFi AMD AM4 ATX Motherboard 3 Years Warranty.
