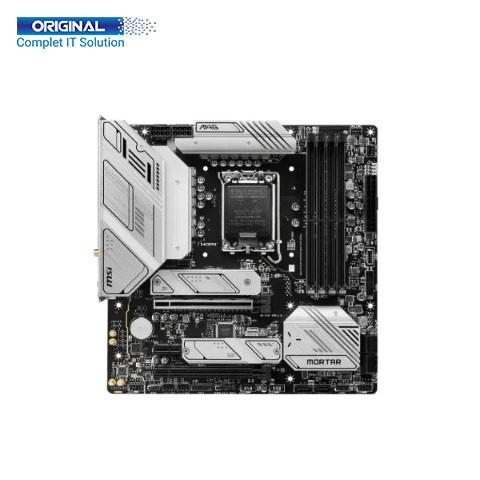

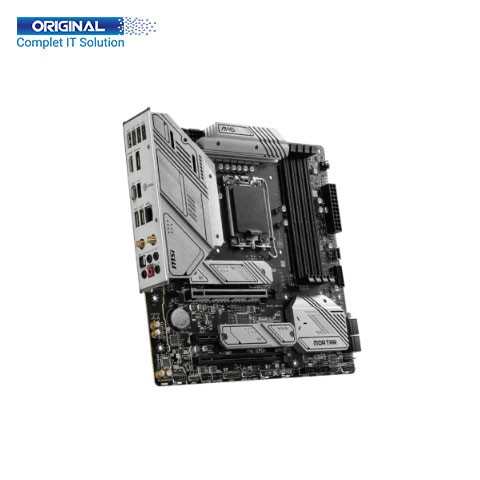

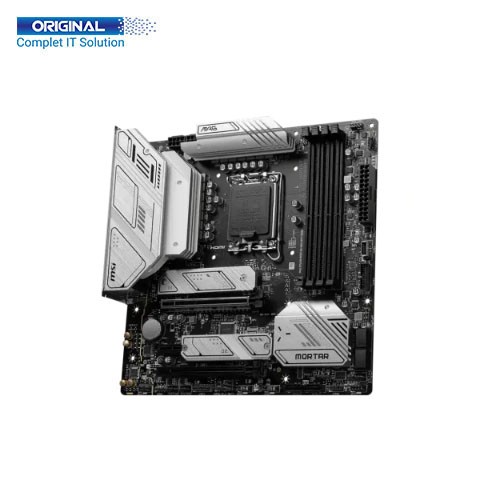

MSI MAG B760M MORTAR MAX WIFI DDR4 12th & 13th Gen mATX Motherboard

Special Price :           ৳26,200
Regular Price(EMI) :           ৳27,600
Status :           In Stock
Brand :           MSI
Product Code :           MAG B760M MORTAR MAX WIFI

Short Details:

  • • Model: MAG B760M MORTAR MAX WIFI DDR4
  • • Socket: LGA1700
  • • Memory Types: DDR4
  • • Maximum Memory: 128GB

See More Details

৳26,200

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model MAG B760M MORTAR MAX WIFI DDR4
Brand MSI
Supported Processor Supports 12th/13th Gen Intel Core Pentium Gold and Celeron Processors
Chipset INTEL B760
Socket LGA1700
Form Factor mATX 243.84mmx243.84mm
Memory Information
Memory Types DDR4
Channel Dual-Channel
Slot 4 Slot
Supported Bus Speed

Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)

Max. overclocking frequency:

• 1DPC 1R Max speed up to 5333+ MHz

• 1DPC 2R Max speed up to 4800+ MHz

• 2DPC 1R Max speed up to 4400+ MHz

• 2DPC 2R Max speed up to 4000+ MHz

Maximum Memory 128GB
Graphics Information
Graphics

1x HDMI
Support HDMITM 2.1 with HDR, the maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, the maximum resolution of 8K 60Hz*

Expansion Slots
PCI

2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Storage Information
M.2

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

SATA 6x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*
Connector Information
Internal Connectors

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

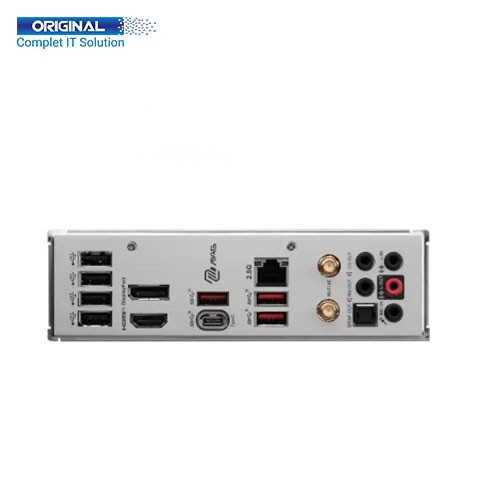

Port Information
USB Port

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

HDMI Port 1x HDMI 2.1 Port
Display Port 1x DisplayPort 1.4
LAN Port Realtek® 2.5Gbps LAN
Audio Port

Realtek ALC897 Codec

7.1-Channel USB High-Performance Audio

Optical S/PDIF 1x Optical S/PDIF OUT
Wi-Fi / Bluetooth 1x Wi-Fi / Bluetooth Antenna
Others Information
WIRELESS / BLUETOOTH

Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA

LED FEATURE 4x EZ Debug LED
Operating System
Supported OS Support for Windows 11 64-bit, Windows 10 64-bit
Warranty
Warranty 03 Years Warranty

Description:


MSI MAG B760M MORTAR MAX WIFI DDR4 12th & 13th Gen mATX Motherboard


MSI MAG B760M MORTAR MAX WIFI DDR4 12th & 13th Gen mATX Motherboard. This MAG series Motherboard fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.


MSI MAG B760M MORTAR MAX WIFI DDR4 12th & 13th Gen mATX Motherboard. It is Model MAG B760M MORTAR MAX WIFI DDR4, Brand MSI, Supported Processor Supports 12th/13th Gen Intel Core Pentium Gold and Celeron Processors, Chipset INTEL B760, Socket LGA1700, Form Factor mATX 243.84mmx243.84mm, Memory Types DDR4, Channel Dual-Channel, Slot 4 Slot, Supported Bus Speed Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC), Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz, • 1DPC 2R Max speed up to 4800+ MHz, • 2DPC 1R Max speed up to 4400+ MHz, • 2DPC 2R Max speed up to 4000+ MHz, Graphics 1x HDMI, Support HDMITM 2.1 with HDR, the maximum resolution of 4K 60Hz, 1x DisplayPort, Support DP 1.4, the maximum resolution of 8K 60Hz, PCI 2x PCI-E x16 slot, Supports x16/x4, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), M.2 2x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, SATA 6x SATA 6G, RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices. This Laptop Internal Connectors 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 4x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports, 1x USB 3.2 Gen2 Type C ports, USB Port 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Front), 3x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Front), 1x USB 3.2 Gen2x2 Type C (Rear), WIRELESS / BLUETOOTH Intel Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA. MSI MAG B760M MORTAR MAX WIFI DDR4 12th & 13th Gen mATX Motherboard comes with 03 Years Warranty.
