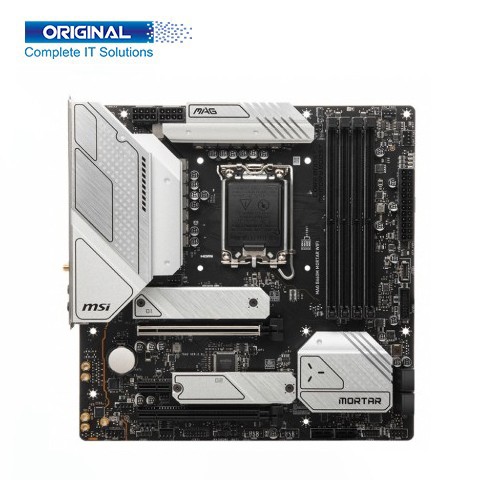

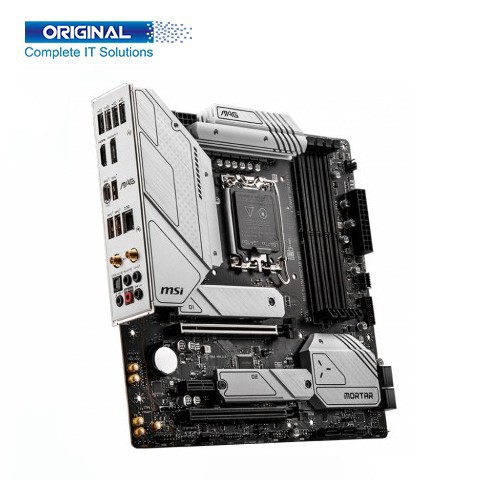

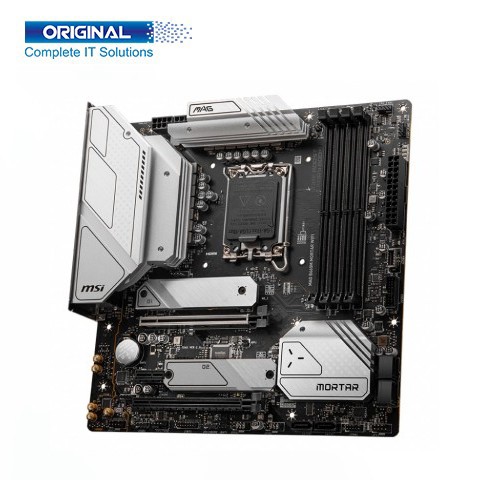

MSI MAG B660M MORTAR WIFI DDR5 12th Gen mATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           MSI
Product Code :           MAG B660M MORTAR WIFI

Short Details:

  • • Model: MSI MAG B660M MORTAR WIFI
  • • Socket: LGA1700
  • • Memory Types: DDR5
  • • Maximum Memory: 128GB

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model MSI MAG B660M MORTAR WIFI
Brand MSI
Supported Processor Supports 12th/ 13th Gen Intel Core, Pentium Gold, and Celeron processors
Chipset Intel B660 Chipset
Socket LGA1700
Form Factor

- Micro-ATX Form Factor

- 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Memory Information
Memory Types DDR5
Channel Dual-Channel
Slot 4x DDR5 memory slots
Supported Bus Speed

* Supports 1R 4800 MHz (by JEDEC & POR)

- Max overclocking frequency:

- 1DPC 1R Max speed up to 6200+ MHz

- 1DPC 2R Max speed up to 6000+ MHz

- 2DPC 1R Max speed up to 5600+ MHz

- 2DPC 2R Max speed up to 5600+ MHz

- Supports Intel® XMP 3.0 OC

Maximum Memory 128GB
Graphics Information
Graphics

<P>- 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz<P>

<P>- 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz<P>

Expansion Slots
PCI

<P>- 2x PCIe x16 slots<P>

<P>- PCI_E1 slot (From CPU)<P>

<P>- Supports PCIe 4.0 x16<P>

<P>- PCI_E3 slot (From B660 Chipset)<P>

<P>- Supports PCIe 3.0 x4<P>

<P>- 1x PCIe 3.0 x1 slot<P>

Storage Information
M.2

- 2x M.2 slots (Key M)

- M2_1 slot (From CPU)

- M2_2 slot (From B660 Chipset)

SATA

- 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)

- 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM106

- Supports SATA 6Gb/s

RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Connector Information
Internal Connectors

- 1x 24-pin ATX main power connector

- 2x 8-pin ATX 12V power connectors

- 6x SATA 6Gb/s connectors

- 2x M.2 slots (M-Key)

- 1x USB 3.2 Gen 2 10Gbps Type-C connector

- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

- 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

- 1x 4-pin CPU fan connector

- 1x 4-pin water-pump fan connector

- 2x 4-pin system fan connectors

- 1x Front panel audio connector

- 2x System panel connectors

- 1x Chassis Intrusion connector

- 1x Clear CMOS jumper

- 1x TPM module connector

- 1x TBT connector (supports RTD3)

- 1x Tuning Controller connector

Port Information
HDMI Port 1x HDMI 2.1 Port
USB Port

- Intel® B660 Chipset

- 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel

- 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector

- 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector

- 4x USB 2.0 ports on the back panel

- USB Hub-GL3590

- 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

- USB Hub-GL850G

- 4x USB 2.0 ports available through internal connectors

Display Port 1x Display Port 1.4
LAN Port 1x Realtek® 8125BG 2.5Gbps LAN controller
Audio Port 7.1-Channel High Definition Audio
Optical S/PDIF OUT 1x Optical S/PDIF OUT
Wi-Fi / Bluetooth Antenna 1x Wi-Fi / Bluetooth Antenna
Others Information
WIRELESS LAN & BLUETOOTH®

Intel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1

(160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.22, FIPS, FISMA

LED FEATURE

- 4x EZ Debug LED

- 1x 4-pin RGB LED connector

- 2x 3-pin RAINBOW LED connectors

Operating Systems
Supported OS Support for Windows 10
Warranty
Warranty 03 Years Warranty

Description:


MSI MAG B660M MORTAR WIFI DDR5 12th Gen mATX Motherboard


MSI MAG B660M MORTAR WIFI DDR5 12th Gen mATX Motherboard. This motherboard comes with Premium Thermal Solution so that Extended Heatsink Design and M.2 Shield Frozr are built for a high-performance system and non-stop works also this motherboard has 2.5G LAN and Intel Wi-Fi 6E Solution, which helps to Upgraded network solution for professional and multimedia use.


MSI MAG B660M MORTAR WIFI DDR5 12th Gen mATX Motherboard. The Model is MAG B660M MORTAR WIFI DDR5, Brand MSI, Supported Processor Supports 12th/ 13th Gen Intel Core, Pentium Gold, and Celeron processors, Chipset Intel B660 Chipset, Socket LGA1700, Form Factor - Micro-ATX Form Factor, - 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm). It is Memory Types DDR5, Channel Dual-Channel, Slot 4x DDR5 memory slots, Supported Bus Speed, - Supports 1R 4800 MHz (by JEDEC & POR), - Max overclocking frequency: - 1DPC 1R Max speed up to 6200+ MHz, - 1DPC 2R Max speed up to 6000+ MHz, - 2DPC 1R Max speed up to 5600+ MHz, - 2DPC 2R Max speed up to 5600+ MHz, - Supports Intel® XMP 3.0 OC, Maximum Memory 128GB. This Graphics - 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1, - 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz, M.2 - 2x M.2 slots (Key M), - M2_1 slot (From CPU), - M2_2 slot (From B660 Chipset), SATA - 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset), - 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1, - Supports SATA 6Gb/s, RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Internal Connectors - 1x 24-pin ATX main power connector, - 2x 8-pin ATX 12V power connectors, - 6x SATA 6Gb/s connectors, - 2x M.2 slots (M-Key), - 1x USB 3.2 Gen 2 10Gbps Type-C connector, - 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), - 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports), - 1x 4-pin CPU fan connector, - 1x 4-pin water-pump fan connector, - 2x 4-pin system fan connectors, - 1x Front panel audio connector, - 2x System panel connectors, - 1x Chassis Intrusion connector, - 1x Clear CMOS jumper, - 1x TPM module connector, - 1x TBT connector (supports RTD3), - 1x Tuning Controller connector, HDMI Port 1x HDMI 2.1 Port, USB Port- Intel® B660 Chipset, - 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel, - 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector, - 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector, - 4x USB 2.0 ports on the back panel, - USB Hub-GL3590, - 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel, - USB Hub-GL850G, - 4x USB 2.0 ports available through internal connectors, Display Port 1x Display Port 1.4, LAN Port 1x Realtek® 8125BG 2.5Gbps LAN controller, Audio Port 7.1-Channel High-Definition Audio, Optical S/PDIF OUT 1x Optical S/PDIF OUTIntel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1, (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.22, FIPS, FISMA. The MSI MAG B660M MORTAR WIFI DDR5 12th Gen mATX Motherboard has a 03 Years Warranty.
