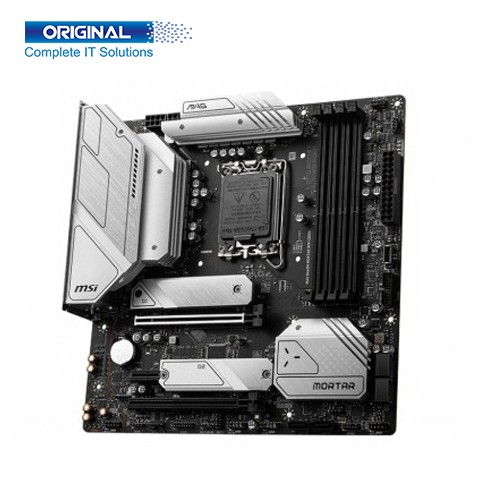

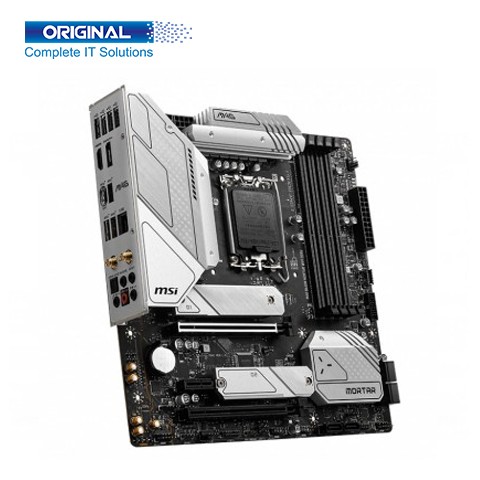

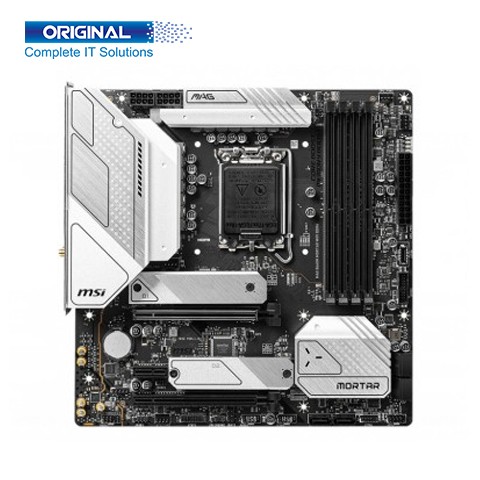

MSI MAG B660M MORTAR WIFI 12th Gen DDR4 Motherboard

Special Price :           ৳25,700
Regular Price(EMI) :           ৳28,500
Status :           In Stock
Brand :           MSI
Product Code :           MAG B660M MORTAR

Short Details:

  • • Model: Gigabyte B660M Aorus Pro AX
  • • Chipset: Intel B660 Express Chipset
  • • Socket: LGA1700
  • • Channel: Dual Channel

See More Details

৳25,700

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model MSI MAG B660M MORTAR WIFI
Brand MSI
Supported Processor Supports 12th Gen Intel Core Pentium Gold and Celeron Processor socket LGA1700
Chipset Intel B660 Chipset
Socket LGA1700
Form Factor Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Memory Information
Memory Types DDR4
Channel Dual-Channel
Slot 4x DDR4 memory slots
Supported Bus Speed

* Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)

* 1DPC 1R Max speed up to 4800+ MHz

* 1DPC 2R Max speed up to 4000+ MHz

* 2DPC 1R Max speed up to 4000+ MHz

* 2DPC 2R Max speed up to 3600+ MHz

* Supports non-ECC, un-buffered memory

* Supports Intel® Extreme Memory Profile (XMP)

Maximum Memory 128GB
Graphics Information
Graphics

* 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

* 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

Expansion Slots
PCI

* 2x PCIe x16 slots

* PCI_E1 slot (From CPU)

* Supports PCIe 4.0 x16

* PCI_E3 slot (From B660 Chipset)

* Supports PCIe 3.0 x4

* 1x PCIe 3.0 x1 slot

Storage Information
M.2

* 2x M.2 slots (Key M)

* M2_1 slot (From CPU)

SATA

* Supports SATA 6Gb/s

* 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)

* 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)

RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Connector Information
Internal Connectors

* 1x 24-pin ATX main power connector

* 2x 8-pin ATX 12V power connectors

* 6x SATA 6Gb/s connectors

* 2x M.2 slots (M-Key)

* 1x USB 3.2 Gen 2 10Gbps Type-C connector

* 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

* 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

* 1x 4-pin CPU fan connector

* 1x 4-pin water-pump fan connector

* 2x 4-pin system fan connectors

* 1x Front panel audio connector

* 2x System panel connectors

* 1x Chassis Intrusion connector

* 1x Clear CMOS jumper

* 1x TPM module connector

* 1x TBT connector (supports RTD3)

* 1x Tuning Controller connector

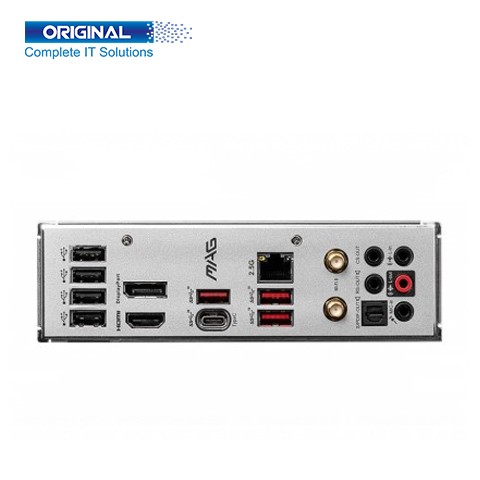

Port Information
USB Port

* USB 2.0 Port

* USB 3.2 Gen 2 10Gbps Type-A

* USB 3.2 Gen 2x2 20Gbps Type-C

HDMI Port HDMI 2.1 Port
Display Port DisplayPort 1.4
Wi-Fi Wi-Fi / Bluetooth Antenna
S/PDIF Optical S/PDIF OUT
LAN Port

* 1x Realtek® 8125BG 2.5Gbps LAN controller

* 2.5G LAN Port

Audio Port

* 7.1-Channel High Definition Audio

* HD Audio Connectors

Special Features
Wi-Fi

* The Wireless module is pre-installed in the M.2 (Key-E) slot

* Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps

* Supports 802.11 a/ b/ g/ n/ ac/ ax

* Supports Bluetooth® 5.2

LED FEATURE

* 4x EZ Debug LED

* 1x 4-pin RGB LED connector

* 2x 3-pin RAINBOW LED connectors

Operating Systems
Supported OS Support for Windows® 11 64-bit, Windows® 10 64-bit
Warranty
Warranty 3 Years Warranty

Descripton:


MSI MAG B660M MORTAR WIFI 12th Gen DDR4 Motherboard


MSI MAG B660M MORTAR WIFI 12th Gen DDR4 Micro ATX Motherboard With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. Supports 12th Gen Intel Core, Pentium Gold, and Celeron processor socket LGA1700. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU runs at full speed with MSI B660M MORTAR Motherboard.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


MSI MAG B660M MORTAR WIFI 12th Gen DDR4 Micro ATX Motherboard. Its Supported Processor Supports 12th Gen Intel Core Pentium Gold and Celeron Processor socket LGA1700 with Chipset Intel B660 Chipset, Socket LGA1700, and Form Factor Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm). This is MSI MAG B660M MORTAR WIFI Motherboard Memory Types DDR4, Channel Dual-Channel, Slot 4x DDR4 memory slots, Supported Bus Speed * Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR),* 1DPC 1R Max speed up to 4800+ MHz, * 1DPC 2R Max speed up to 4000+ MHz,* 2DPC 1R Max speed up to 4000+ MHz, * 2DPC 2R Max speed up to 3600+ MHz, * Supports non-ECC, un-buffered memory,* Supports Intel® Extreme Memory Profile (XMP), Maximum Memory 128GB. It is Graphics * 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz, * 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz,PCI * 2x PCIe x16 slots,* PCI_E1 slot (From CPU),* Supports PCIe 4.0 x16,* PCI_E3 slot (From B660 Chipset),* Supports PCIe 3.0 x4,* 1x PCIe 3.0 x1 slot, Internal Connectors * 1x 24-pin ATX main power connector,* 2x 8-pin ATX 12V power connectors,* 6x SATA 6Gb/s connectors,* 2x M.2 slots (M-Key),* 1x USB 3.2 Gen 2 10Gbps Type-C connector,* 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports),* 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports), * 1x 4-pin CPU fan connector, * 1x 4-pin water-pump fan connector, * 2x 4-pin system fan connectors, * 1x Front panel audio connector, * 2x System panel connectors, * 1x Chassis Intrusion connector, * 1x Clear CMOS jumper, * 1x TPM module connector, * 1x TBT connector (supports RTD3), * 1x Tuning Controller connector, USB Port* USB 2.0 Port, * USB 3.2 Gen 2 10Gbps Type-A, * USB 3.2 Gen 2x2 20Gbps Type-C, HDMI Port HDMI 2.1 Port, Display Port DisplayPort 1.4,  Wi-Fi Wi-Fi / Bluetooth Antenna, S/PDIF Optical S/PDIF OUT, LAN Port * 1x Realtek® 8125BG 2.5Gbps LAN controller, * 2.5G LAN Port, Audio Port * 7.1-Channel High Definition Audio, * HD Audio Connectors. The MSI MAG B660M MORTAR WIFI 12th Gen DDR4 Micro ATX Motherboard has a 3 Years Warranty.
