MSI MAG B660M MORTAR MAX WIFI 12th Gen DDR4 Motherboard

Special Price :           ৳23,950
Regular Price(EMI) :           ৳26,000
Status :           In Stock
Brand :           MSI
Product Code :           MAG B660M MORTAR MAX WIFI

Short Details:

  • • Model: MSI MAG B660M MORTAR MAX WIFI
  • • Chipset: Intel B660 Chipset
  • • Socket: LGA1700
  • • Memory Types: DDR4

See More Details

৳23,950

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model MSI MAG B660M MORTAR MAX WIFI
Brand MSI
Supported Processor Supports 12th/ 13th Gen Intel Core Pentium Gold and Celeron processors
Chipset Intel B660 Chipset
Socket LGA1700
Form Factor

Micro-ATX Form Factor

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Memory Information
Memory Types DDR4
Channel Dual-Channel
Slot 4x DDR4 memory slots
Supported Bus Speed

Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 5333+ MHz

1DPC 2R Max speed up to 4000+ MHz

2DPC 1R Max speed up to 4000+ MHz

2DPC 2R Max speed up to 3600+ MHz

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Maximum Memory 128GB
Graphics Information
Graphics

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

Expansion Slots
PCI

2x PCIe x16 slots

PCI_E1 slot (From CPU)

Supports PCIe 5.0 x16

PCI_E3 slot (From B660 Chipset)

Supports PCIe 3.0 x4

1x PCIe 3.0 x1 slot

Storage Information
M.2

2x M.2 slots (Key M)

M2_1 slot (From CPU)

M2_2 slot (From B660 Chipset)

SATA

4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)

2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)

RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Connector Information
Internal Connectors


1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

6x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C connector

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

2x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TPM module connector

1x TBT connector (supports RTD3)

1x Tuning Controller connector

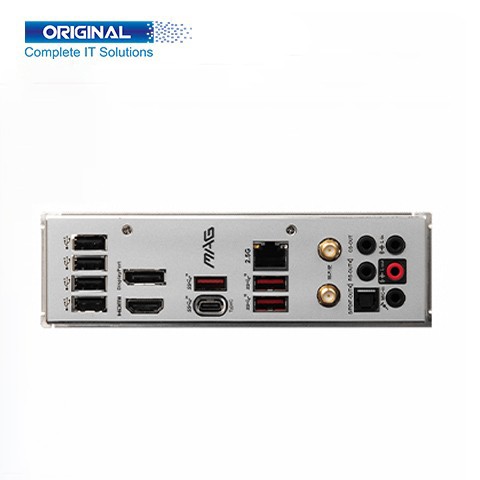

Port Information
USB Port

Intel® B660 Chipset

1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel

1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector

2x USB 3.2 Gen 1 5Gbps ports available through the internal connector

4x USB 2.0 ports on the back panel

USB Hub-GL3590

3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

USB Hub-GL850G

4x USB 2.0 ports available through internal connectors

HDMI Port HDMI 2.1 Port
Display Port DisplayPort 1.4
LAN Port

2.5G LAN Port

1x Realtek® 8125BG 2.5Gbps LAN controller

Audio Port

7.1-Channel High-Definition Audio

1x HD Audio Connectors

Wi-Fi Port 1x Wi-Fi / Bluetooth Antenna
Optical SPDIF 1x Optical S/PDIF OUT
Others Information
WIRELESS LAN & BLUETOOTH

Intel Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.32, FIPS, FISMA

LED FEATURE

4x EZ Debug LED

1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

Operating System
Supported OS Microsoft Windows 10
Warranty
Warranty 03 Years Warranty

Description:


MSI MAG B660M MORTAR MAX WIFI 12th Gen DDR4 Motherboard


MSI MAG B660M MORTAR MAX WIFI 12th Gen DDR4 Motherboard constructed around the latest Intel B660 chipset that balances value with cutting-edge hardware.  With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPUs run at full speed with MSI motherboards.


MSI MAG B660M MORTAR MAX WIFI 12th Gen DDR4 Motherboard. This Model MSI MAG B660M MORTAR MAX WIFI, Brand MSI, Supported Processor Supports 12th/ 13th Gen Intel Core Pentium Gold and Celeron processors, Chipset Intel B660 Chipset, Socket LGA1700, Form Factor Micro-ATX Form Factor, 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm), Memory Types DDR4, Channel Dual-Channel, Slot 4x DDR4 memory slots, Supported Bus Speed, Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR), Max overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz, 1DPC 2R Max speed up to 4000+ MHz, 2DPC 1R Max speed up to 4000+ MHz, 2DPC 2R Max speed up to 3600+ MHz, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile (XMP), Maximum Memory 128GB, Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz, 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz, PCI 2x PCIe x16 slots, PCI_E1 slot (From CPU), Supports PCIe 5.0 x16, PCI_E3 slot (From B660 Chipset), Supports PCIe 3.0 x4, 1x PCIe 3.0 x1 slot, M.2 , 2x M.2 slots (Key M), M2_1 slot (From CPU), M2_2 slot (From B660 Chipset), SATA 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset), 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061), RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Internal Connectors 1x 24-pin ATX main power connector, 2x 8-pin ATX 12V power connectors, 6x SATA 6Gb/s connectors, 2x M.2 slots (M-Key), 1x USB 3.2 Gen 2 10Gbps Type-C connector, 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 2x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x TPM module connector, 1x TBT connector (supports RTD3), 1x Tuning Controller connector, USB Port Intel® B660 Chipset, 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel, 1x USB 3.2 Gen 2 10Gbps Type-C port, vailable through the internal connector, 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector, 4x USB 2.0 ports on the back panel, USB Hub-GL3590, 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel, USB Hub-GL850G, 4x USB 2.0 ports available through internal connectors, WIRELESS LAN & BLUETOOTH Intel Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.32, FIPS, FISMA, LED FEATURE 4x EZ Debug LED, 1x 4-pin RGB LED connector, 2x 3-pin RAINBOW LED connectors. The MSI MAG B660M MORTAR MAX WIFI 12th Gen DDR4 Motherboard has a 03 Years Warranty.
