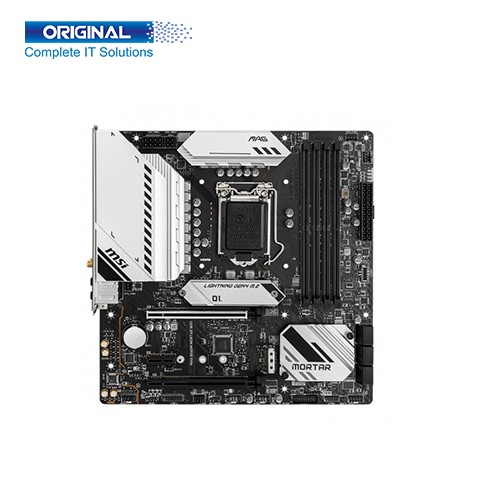

MSI MAG B560M MORTAR WIFI 10th &11th Gen Motherboard

Special Price :           ৳18,400
Regular Price(EMI) :           ৳19,100
Status :           In Stock
Brand :           MSI
Product Code :           MAG B560M MORTAR WIFI

Short Details:

  • • Model: MSI MAG B560M MORTAR WIFI
  • • Chipset: Intel B560 Chipset
  • • Socket: LGA1200
  • • Form Factor: Micro ATX Form Factor

See More Details

৳18,400

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model MSI MAG B560M MORTAR WIFI
Brand MSI
Supported Processor Supports 10th, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processor
Chipset Intel B560 Chipset
Socket LGA1200 socket
Form Factor Micro ATX Form Factor
Memory Information
Memory Type DDR4
Channel Dual-channel
Slot 4 x DIMM slots
Supported Bus Speed 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Maximum Memory Up to 128GB
Graphics Information
Graphics

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

Supports 2-Way AMD CrossFire Technology

Expansion Slots
PCI

*2x PCIe x16 slots

Support x16/ x4


*PCI E1 (from CPU)

Support up to PCIe 4.0 for 11th Gen Intel CPU

Support up to PCIe 3.0 for 10th Gen Intel CPU


*PCI E3 (From B560 chipset)

Support up to PCIe 3.0


*1x PCIe 3.0 x1 slot

PCI E2 (From B560 chipset)


*PCI E3 will be unavailable when installing M.2 SSD in M2 2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI E3 and set x2 for M2 2 in BIOS.

Storage Information
M.2 2x M.2 slots (Key M)
SATA 6x SATA 6Gb/s ports (from B560 chipset)
Connector Information
Internal Connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x 4-pin ATX 12V power connector

6x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

2x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x Tuning Controller Connector

1x TBT connector (Supports RTD3)

Port Information
USB Port

Intel B560 Chipset:

1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)

1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)

2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector

4x USB 2.0 ports on the back panel

USB Hubs ASM1074:

3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Hub-GL850G:

4x USB 2.0 ports are available through the internal USB 2.0 connectors

HDMI Port 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Display Port 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
LAN Port 1x Realtek RTL8125B 2.5Gbps LAN controller
Audio Jack 1x Front panel audio connector
Clear CMOS Button 1x Clear CMOS jumper
Operating System
Supported OS Support for Windows® 10 64-bit
Warranty
Warranty 3 Years Warranty

Descripton:


MSI MAG B560M MORTAR WIFI 10th &11th Gen Motherboard


MSI MAG B560M MORTAR WIFI 10th &11th Gen Motherboard accompanies MSI lightning Gen 4 PCI-E which is the most recent and the quickest PCI-E information move arrangement with 64GB/s of move data transmission that has multiplied contrasted with its past age. PCIe 4.0 keeps up with both in reverse and forward similarity with more established and fresher determinations. It upholds tenth Gen Intel Core Processors, eleventh Gen Intel Core Processors, Pentium Gold, and Celeron Processors (attachment LGA1200). With more centers' processors, warm and drive configuration is more vital to ensure the temperature keeps lower. An upgraded PCB plan with 2oz thickened copper builds conductivity, further developing hotness dispersal and execution unwavering quality particularly during overclocking. It has 4 x DDR4 memory spaces and it upholds up to 128GB. It additionally upholds double mode. It includes a 2.5G LAN and Intel Wi-Fi 6E Solution. Updated network answer for expert and media use.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


MSI MAG B560M MORTAR WIFI 10th &11th Gen Motherboard Supported Processor Supports 10th, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processor, Chipset Intel B560 Chipset, Socket LGA1200 socket Form Factor Micro ATX Form Factor, Memory Type DDR4,Channel Dual-channel, Slot 4 x DIMM slots Supported Bus Speed 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz, Maximum Memory Up to 128GB. The Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz,1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology, PCI 2x PCIe x16 slots, Support x16/ x4, PCI E1 (from CPU), Support up to PCIe 4.0 for 11th Gen Intel CPU, Support up to PCIe 3.0 for 10th Gen Intel CPU PCI E3 (From B560 chipset), Support up to PCIe 3.0,1x PCIe 3.0 x1 slot, PCI E2 (From B560 chipset), PCI E3 will be unavailable when installing M.2 SSD in M2 2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI E3 and set x2 for M2 2 in BIOS. This motherboard M.2 2x M.2 slots (Key M),SATA 6x SATA 6Gb/s ports (from B560 chipset),Internal Connectors 1x 24-pin ATX main power connector,1x 8-pin ATX 12V power connector,1x 4-pin ATX 12V power connector,6x SATA 6Gb/s connectors,2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port,1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports),2x USB 2.0 connectors (supports additional 4 USB 2.0 ports),1x 4-pin CPU fan connector,1x 4-pin water-pump fan connector,2x 4-pin system fan connectors,1x Front panel audio connector,2x System panel connectors 1x Chassis Intrusion connector.1x Clear CMOS jumper,1x Tuning Controller Connector,1x TBT connector (Supports RTD3), USB Port Intel B560 Chipset:1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel),1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector),2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector,4x USB 2.0 ports on the back panel, USB Hubs ASM1074:3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel, Hub-GL850G:4x USB 2.0 ports are available through the internal USB 2.0 connectors, HDMI Port 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz, Display Port 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz, LAN Port 1x Realtek RTL8125B 2.5Gbps LAN controller, Audio Jack 1x Front panel audio connector, Clear CMOS Button 1x Clear CMOS jumper. The Supported OS Support for Windows® 10 64-bit. The MSI MAG B560M MORTAR WIFI 10th &11th Gen Motherboard 03 years Warranty.
