| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | MAG B560 Tomahawk WIFI |
| General Information | ||
| Model | MSI MAG B560 Tomahawk WIFI |
|
| Brand | MSI | |
| Supported Processor | Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® | |
| Chipset | Intel® B560 Chipset | |
| Socket | LGA 1200 | |
| Form Factor | ATX | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual-Channel | |
| Slot | 4 x DDR4 memory slots | |
| Supported Bus Speed | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
|
| Maximum Memory | up to 128GB | |
| Graphics Information | ||
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
|
| Expansion Slots | ||
| PCI | 2x PCIe x16 slots PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel ® CPU PCI_E2 (from B560 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (from B560 chipset) |
|
| Storage Information | ||
| M.2 | 3x M.2 slots (Key M) |
|
| SATA | 6x SATA 6Gb/s ports (from B560 chipset) | |
| Connector Information | ||
| Internal Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
|

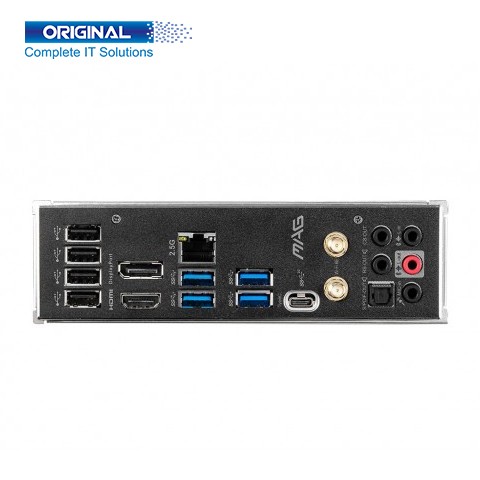

| Port Information | ||
| USB Port | 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) 4x USB 2.0 ports on the back panel 4x USB 2.0 ports available through the internal connectors |
|
| HDMI Port | 1x HDMI | |
| LAN Port | 1x Realtek® RTL8125B 2.5Gbps LAN controller | |
| Audio Port | Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Display Port | 1x DisplayPort | |
| Antenna | 1x Wi-Fi / Bluetooth Antenna | |
| S/PDIF OUT | Optical S/PDIF OUT | |
| Special Features | ||
| WIFI | Intel®Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 [Key-E] slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.22, FIPS, FISMA |
|
| Operating Systems | ||
| Supported OS | Support for Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|

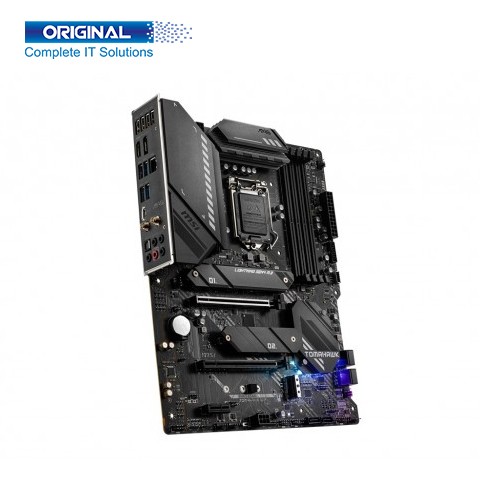

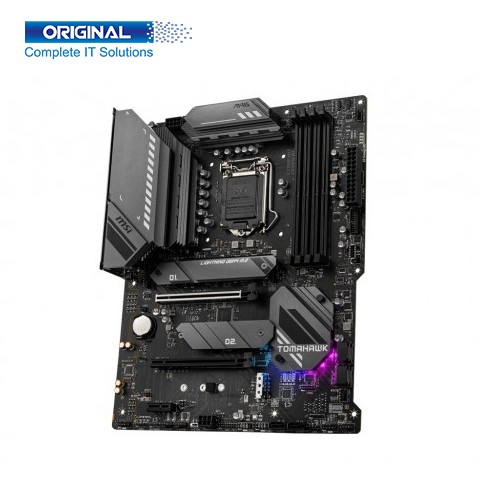

MSI MAG B560 Tomahawk WIFI 11th Gen ATX Motherboard. MSI MAG B560 Tomahawk Series Motherboards come with an upgraded power solution, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming. Buy MSI MAG B560 Tomahawk Motherboard at the best price in BD.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
MSI MAG B560 Tomahawk WIFI Motherboard comes with Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors, Intel B560 Chipset with ATX Form Factor, and LGA 1200 socket. MSI MAG B560 Tomahawk WIFI Intel Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed Supports 1R 2133/ 2666/ 2933 MHz for Intel 10th Gen CPU (by JEDEC & POR), Supports 1R 2133/ 2666/ 2933/ 3200 MHz for Intel 11th Gen CPU (by JEDEC & POR), The max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz, 1DPC 2R Max speed up to 4600+ MHz, 2DPC 1R Max speed up to 4266+ MHz, 2DPC 2R Max speed up to 4000+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, It supports Intel® Extreme Memory Profile (XMP). MSI MAG B560 Tomahawk WIFI Motherboard comes with standard Graphics such as 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz, 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz. MAG B560 Tomahawk WIFI MSI Motherboard Expansion PCI slot is 1x PCIe 3.0 x1 slot 1, 1x PCIe 4.0/3.0 x16 slot, 6 x SATA 6 GB/s connectors and 3 x M.2 connector, Support for RAID 0, RAID 1, and RAID 5 devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x front panel audio connector, etc. The MSI MAG B560 Tomahawk WIFI Motherboard has 2 x USB 3.2 Gen 2 10Gbps, and 6x USB 2.0 ports. The MSI MAG B560 Tomahawk WIFI Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
