| Price | : | To be announced |
| Status | : | Up Comming |
| Brand | : | MSI |
| Product Code | : | H110M Pro-VH Plus |
| General Information | ||
| Model | MSI H110M Pro-VH Plus |
|
| Supported Processor | 6th Gen Intel Core / Pentium / Celeron processors | |
| Chipset | Intel® H110 Chipset | |
| Socket | LGA1151 | |
| Form Factor | 22.6 cm x 17.3 cm; Micro-ATX Form Factor | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-Channel | |
| Slot | 2 x DDR4 memory | |
| Supported Bus Speed | DDR4 2133 MHz | |
| Maximum Memory | 32GB | |
| Graphics Information | ||
| Graphics | * 1 x HDMI™ ports support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz - Support for HDMI™ 1.4 version. |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 3.0 x16 slot |
|
| Storage Information | ||
| SATA | 4 x SATA 6Gb/s ports |
|
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector |
|
| Port Information | ||
| PS/2 | * 1 x PS/2 mouse port |
|
| USB Port | * 2 x USB 2.0 ports |
|
| HDMI Port | 1 x HDMI™ port |
|
| VGA Port | 1 x VGA port | |
| LAN Port | 1 x Realtek RTL8111H Gigabit LAN controller | |
| Audio Port | * Realtek® ALC887 Codec * 7.1-Channel High Definition Audio |
|
| Operating System | ||
| Supported OS | Support for Windows 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |

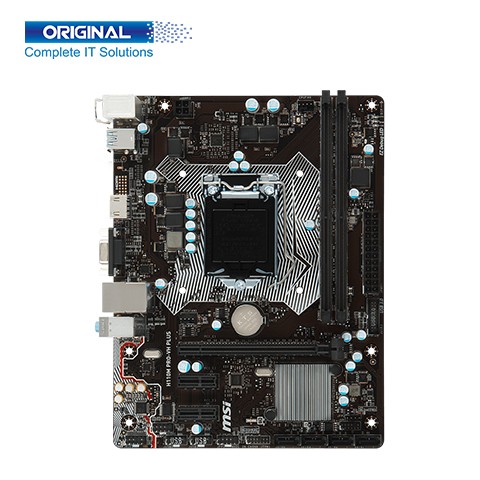

This MSI H110M Pro-VH Plus Motherboard comes with Supports 6th Gen Intel Core / Pentium / Celeron processors, Intel H110 Chipset with 23.6 cm x 20.0 cm ATX Form Factor, and LGA1151 socket. MSI H110M Pro-VH Plus AMD Motherboard Maximum 32 GB DDR4 Dual Channel Memory, 2 x DDR4 DIMM sockets, Supported Bus Speed DDR4 2133 MHz.
MSI H110M Pro-VH Plus Motherboard comes with standard Graphics such as 1 x HDMI ports that support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz - Support for HDMI 1.4 version, 1 x VGA port, it supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz in this motherboard. H110M Pro-VH Plus MSI Motherboard Expansion PCI Slots is 1 x PCIe 3.0 x16 slots, 4 x SATA 6 GB/s connectors, 1x M.2 slot also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x front panel audio connector, etc. The MSI H110M Pro-VH Plus DDR4 Motherboard has 2 x USB 3.1 Gen 1 10Gbps, 2x USB 2.0 ports, etc more. The MSI H110M Pro-VH Plus Motherboard has a 1x Realtek R1111H Gigabit LAN controller, 7.1-Channel High Definition Audio.
This MSI H110M Pro-VH Plus Motherboard Support for Windows 7 64-bit, 10 64-bit. You can enjoy 03 Years Warranty. You can buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
