| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | B560M PRO-VDH |
| General Information | ||
| Model | B560M PRO-VDH | |
| Brand | MSI | |
| Supported Processor | Supports 10th, 11th Gen Intel Processors, Pentium Gold and Celeron Processor | |
| Chipset | Intel B560 Chipset | |
| Socket | LGA 1200 | |
| Form Factor | M-ATX | |
| Memory Information | ||
| Memory Type | DDR4 | |
| Channel | Dual-Channel | |
| Slot | 4 x DIMMs, up to 5066MHz (OC) | |
| Supported Bus Speed | 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz | |
| Maximum Memory | Up to 128GB | |
| Graphics Information | ||
| Graphics | 1x PCIe 4.0 x16 slot | |
| Expansion Slots | ||
| PCI | 2x PCIe 3.0 x1 slots | |
| Storage Information | ||
| M.2 | 1x M.2 Gen4 x4 64Gb/s slot
1x M.2 Gen3 x4 32Gb/s slot |
|
| SATA | 6x SATA 6Gb/s ports | |
| Connector Information | ||
| Internal Connectors | 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x Serial port connector
1x Tuning Controller Connector |
|
| Port Information | ||
| USB Port | 2x USB3.2 Gen 2 10Gbps (2 Type-A)
4x USB 3.2 Gen 1 5Gbps (4 Type-A)
6x USB 2.0 |
|
| HDMI Port | 1 x HDMI Port | |
| VGA Port | 1 x VGA Port | |
| Display Port | 1 x Display Port | |
| LAN Port | 1x Realtek 8125B 2.5Gbps LAN controller | |
| Audio Jack | 8-Channel (7.1) HD Audio with Audio Boost | |
| Operating System | ||
| Supported OS | Windows 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years | |

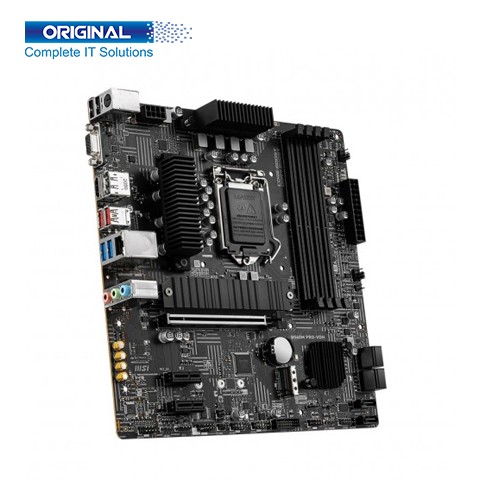

MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard is loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer or enthusiast. MSI motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard. Supports 10th Gen, 11th Gen, Pentium Gold, and Celeron Intel Processors. Intel B560 Chipset. LGA 1200 Socket. M-ATX Form Factor. It is MSI B560M PRO-VDH Motherboard Memory Types DDR4, Dual-channel, 4 x DIMMs, up to 5066MHz (OC). Supported Memory Bus Speed 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz. Maximum Memory 128 GB. Graphics 1x PCIe 4.0 x16 slot. Expansion Slots 2x PCIe 3.0 x1 slots. Storage has 1x M.2 Gen4 x4 64Gb/s slot, 1x M.2 Gen3 x4 32Gb/s slots, 6x SATA 6Gb/s. It has Internal Connectors 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector, 1x 4-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, 2x M.2 slots (M-Key), 1x USB 3.2 Gen 2 10Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 2-pin system fan connectors, 1x Front panel audio connectors, 2x System panel connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Tuning Controller connector, 1x TBT connector (supports RTD3). It has included USB Port 12x USB3.2 Gen 2 10Gbps (2 Type-A), 4x USB 3.2 Gen 1 5Gbps (4 Type-A), 6x USB 2.0, 1 x HDMI, 1 x VGA Port, 1 x Display Port, LAN Port Realtek 8125B 2.5G LAN, Audio Jack 8-Channel (7.1) HD Audio with Audio Boost. Supported Operating System Windows 10 64-bit. The MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard has 03 years warranty.
