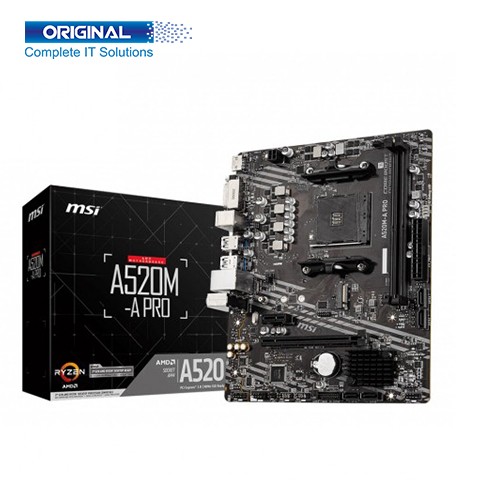

MSI A520M-A Pro DDR4 AMD AM4 Micro-ATX Motherboard

Special Price :           ৳8,450
Regular Price(EMI) :           ৳9,200
Status :           In Stock
Brand :           MSI
Product Code :           A520M-A Pro

Short Details:

  • • Model: MSI A520M-A Pro
  • • Chipset: AMD® A520 Chipset
  • • Socket: AMD Socket AM4
  • • Form Factor:Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)

See More Details

৳8,450

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model MSI A520M-A Pro
Brand MSI
Supported Processor Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
Chipset AM4
Socket AMD Socket AM4
Form Factor Micro-ATX Form Factor9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Memory Information
Memory Type DDR4
Channel Dual-channel memory architecture
Slot 2x DDR4 memory slots
Supported Bus Speed Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDECSupports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode
Maximum Memory 64GB
Graphics Information
Graphics

1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz

1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

Expansion Slots
PCI

1x PCIe 3.0 x1 slot

1x PCIe x16 slot

Storage Information
M.2 1x M.2 slot (Key M) (from AMD Processor)
SATA 6Gb/s
RAID 0/1/10
Connector Information
Internal Connectors

1x 24-pin ATX main power connector

1x 4-pin ATX 12V power connector

4x SATA 6Gb/s connectors

1x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

Port Information
USB Port

AMD A520 Chipset

2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

HDMI Port 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
LAN Port 1x Realtek RTL8111H Gigabit LAN controller
Audio Jack

* Realtek ALC892 Codec

* 7.1-Channel High Definition Audio

Clear CMOS Button 1x Clear CMOS jumper
Operating System
Supported OS Support for Windows® 10 64-bit
Warranty
Warranty 03 Years Warranty

Description:


MSI A520M-A Pro DDR4 AMD AM4 Micro-ATX Motherboard


MSI A520M-A Pro DDR4 AMD AM4 Micro-ATX Motherboard PRO series assists clients with working more intelligently by conveying a proficient and useful experience. Including stable usefulness and top-notch get-together, PRO series motherboards give streamlined proficient work processes as well as less investigating and life span. MSI A520M-A Pro DDR4 Motherboard let you oversee paces and temperatures for all your framework and CPU fans. All out Fan Control permits you to really look at your essential framework qualities in a worked-on graphical connection point. You can likewise set up 4 temperature focuses for the CPU and motherboard, which will change the fan speeds consequently. MSI PRO Series motherboards support all the most recent stockpiling norms, which permits clients to interface with any super quick stockpiling gadget. Higher effectiveness makes your work more straightforward.

For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.

MSI A520M-A Pro DDR4 AMD AM4 Micro-ATX Motherboard Supported Processor Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors, Chipset AM4, Socket AMD Socket AM4, Form Factor Micro-ATX Form Factor9.3 in. x 7.9 in. (23.6 cm x 20 cm), Memory Type DDR4, Channel Dual-channel memory architecture, Slot 2x DDR4 memory slots, Supported Bus Speed Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode, Maximum Memory 64GB. MSI A520M-A Pro AM4 Motherboard Graphics 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz,1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz, PCI 1x PCIe 3.0 x1 slot,1x PCIe x16 slot, M.2 1x M.2 slot (Key M) (from AMD Processor), SATA 6Gb/s, RAID 0/1/10.Internal Connectors 1x 24-pin ATX main power connector,1x 4-pin ATX 12V power connector,4x SATA 6Gb/s connectors 1x M.2 slots (M-Key),1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports),2x USB 2.0 connectors (supports additional 4 USB 2.0 ports),1x 4-pin CPU fan connector,1x 4-pin system fan connectors,1x Front panel audio connector,2x System panel connectors,1x Chassis Intrusion connector,1x Clear CMOS jumper. The USB Port AMD A520 Chipset,2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector,6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors), AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel, HDMI Port 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz LAN Port 1x Realtek RTL8111H Gigabit LAN controller Audio Jack Realtek ALC892 Codec, 7.1-Channel High Definition Audio Clear CMOS Button 1x Clear CMOS jumper. The Supported OS Support for Windows® 10 64-bit.MSI A520M-A Pro DDR4 AMD AM4 Micro-ATX Motherboard 03 Years Warranty.
