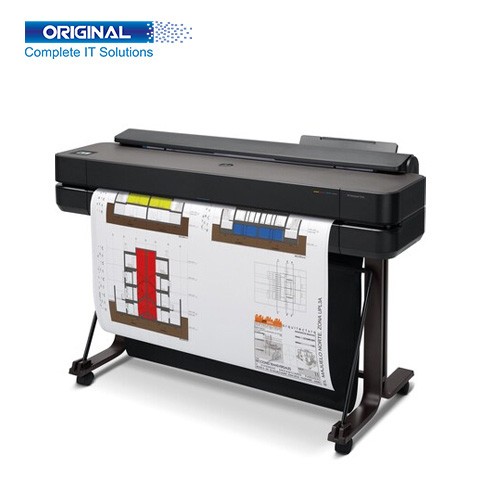

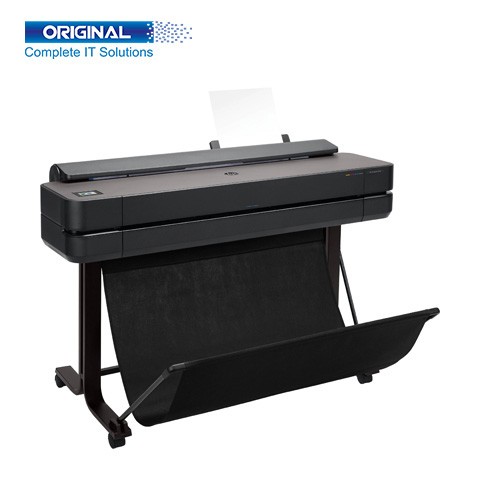

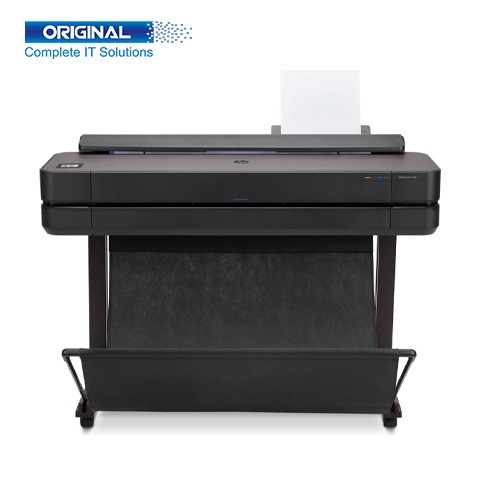

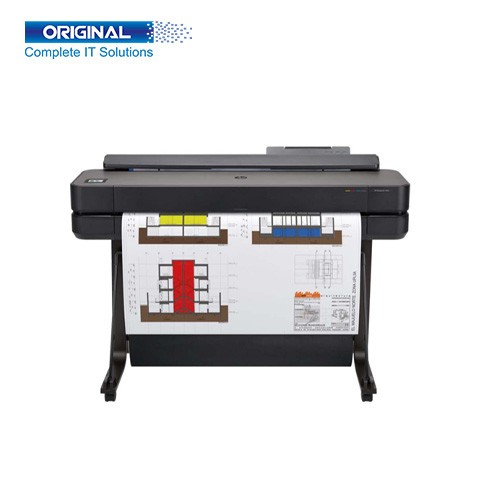

HP DesignJet T650 36-in Wireless Plotter Printer

Price :           To be announced
Status :           Up Comming
Brand :           HP
Product Code :           5HB10A

Short Details:

  • • Model: HP DesignJet T650 36-in
  • • Print Resolution: 2400 x 1200dpi
  • • Print Memory: 1GB
  • • Functions: Print Only

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
General Information

HP DesignJet T650 36-in

Brand HP
Functions Print Only
Part Number 5HB10A
Print Technology Thermal Inkjet,
Body Color


Print Information
Print Speed

* 25spp(black)
* 25spp (Color)

Print Resolution 2400 x 1200dpi
Print Memory 1GB
Duplex Printing Manual

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11

Wireless Capability Yes
Network Capabilities Yes
Media Handling
Media Sizes

11 to 36 in; Sheets: 210 x 279 to 914 x 1897 mm (8.3 x 11 to 36 x 74.7 in)Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)

Media Weight/Capacity 60 to 280 g/m² (roll/manual feed) ; 60 to 220 g/m² (auto sheet feeder)
Media Thickness Up to 0.3 mm (11.8 mil)
Line Accuracy -0.001
Paper Type Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypro
Power Information
Power Requirement

100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 1.2 A max

Power Consumption 35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)
Dimensions and Weight
Dimensions (W x D x H)

1317 x 605 x 932mm

Weight 35.4Kg
Operating Systems
Supported OS

Windows and MacOS

Supplies Information

HP 712B 38-ml Black DesignJet Ink Cartridge, HP 712B 80-ml Black DesignJet Ink Cartridge, HP 712 29-ml Cyan DesignJet Ink Cartridge, HP 712 29-ml Magenta DesignJet Ink Cartridge, HP 712 29-ml Yellow DesignJet Ink Cartridge

Page Yield

20 ml of ink yields 101 A1/D pages


01 Year


HP Designjet T650 36-in Wireless Plotter Printer

The HP DesignJet T650 36-in Wireless Plotter Printer, Functions Print Only. Printer Type Single Function DesignJet Printer. Output type Color. Print Speed (Black) 25spp. Print Speed (Color) 25spp. Print Resolution (Pixel) 2400 x 1200dpi. Duplex Print Manual. Paper Size Minimum A4. Print Paper Size A4, A3, A2, A1, A0. Paper Weight 60 to 220 g/m2 (Auto Sheet Feeder), 60 to 280 g/m2 (Roll/Manual Feed).

The HP DesignJet T650 36-in Wireless Plotter Printer. Paper Type Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter. Printer Memory 1GB. Interface (Built-in) USB, LAN, WiFi. Power Source/ Power Consumption 100-240 V (+-10%), 50/60 Hz (+-3 Hz), 1200 mA max, <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby). Supported Operating System Windows and MacOS. Printer Driver Language HP-GL/2, HP-RTL, CALS G4, JPEG, URF. Body Color Black. Print Technology: HP Thermal Inkjet, Roll Margins: 5 x 5 x 5 x 5 mm, Sheet Margins: 5 x 5 x 5 x 5 mm, Ink types: Dye-based (C, M, Y), pigment-based (K), Page Yield: 20 ml of ink yields 101 A1/D pages, taking into account maintenance routines, Ink drop: 5.5 pl (C, M, Y); 12 pl (K), Printheads: 1 (cyan, magenta, yellow, black), Printhead nozzles: 1376, Minimum line width: 0.02 mm, Roll size: 279 to 914 mm, Thickness: Up to 0.3 mm, Remote print enabled: Yes, One-click multi-size printing: Yes, Recycled plastic in printer: 30%, Operating temperature: 5 to 40 degree C, Operating humidity: 20 to 80% RH, Operating altitude: Up to 3000 m, Storage temperature: -25 to 55 degree C, Sound pressure: 42 dB(A) (operating), <16 dB(A) (idle), Sound power: 5.8 B(A). Simply the world's easiest large-format plotters -affordability without tradeoffs, Print multi-size A3/B and A1/D or A0/E projects automatically, without manually switching the media source, Save time with the world's easiest job submission-send multiple files in one click with HP Click software (operating), <3.4 B(A) (idle). Dimensions 1317 x 605 x 932mm. Weight (Kg) 35.4Kg.
