ORIGINAL STORE LTD.

Fiber-Link 1ge Epon Bosa ONU

Special Price :           ৳1,200
Regular Price(EMI) :           ৳1,350
Status :           In Stock
Brand :           Fiber-Link
Product Code :           Fiber-Link 1ge Epon

Short Details:

  • • Model: Fiber-Link 1ge Epon
  • • Power Supply: 12V 0.5A
  • • Transmission distance: 20KM

See More Details

৳1,200

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

Fiber-Link 1ge Epon

Brand Fiber-Link
Type of the optical interface SC/UPC connector
Operating Temperature -30ºC~+70ºC
Operating Humidity 10%~90%(non-condensing)
Wavelength Tx1310nm,Rx 1490nm
Receiving saturation ≥-8dBm
Receiving sensitivity ≤-30dBm
Transmitting optical power 0~+4dBm
Transmission distance 20KM
Power Supply 12V 0.5A
Dimension 110mm(L) x100mm(W) x23mm (H)
Net weight 0.22kg
Warranty 1 Year Warranty

Descripton:

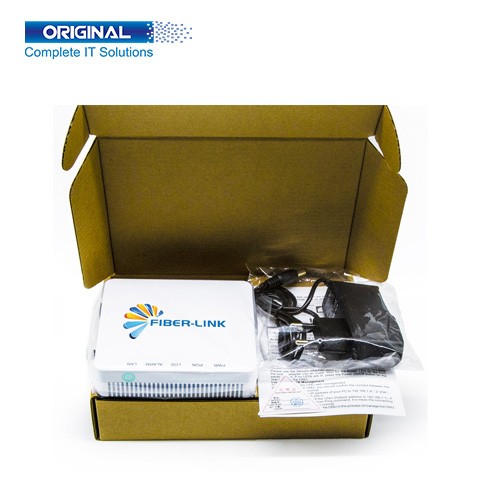

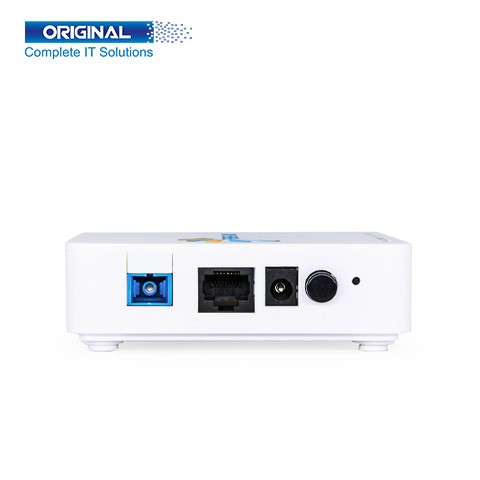

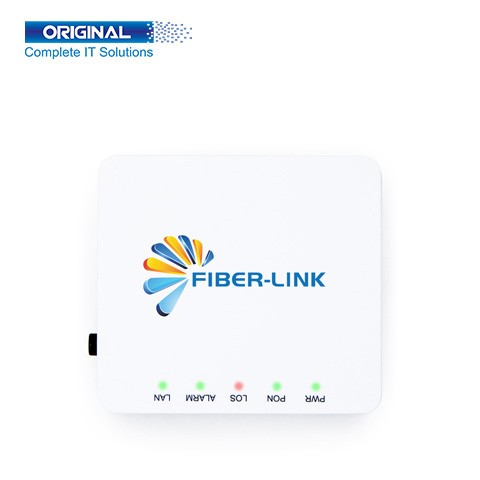

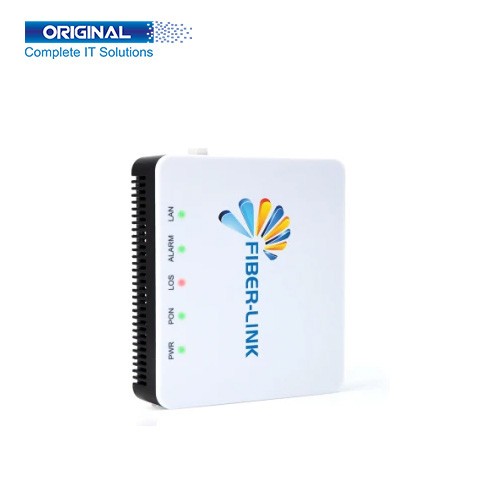

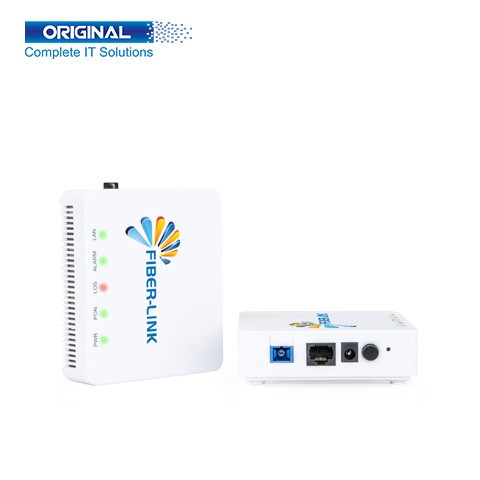

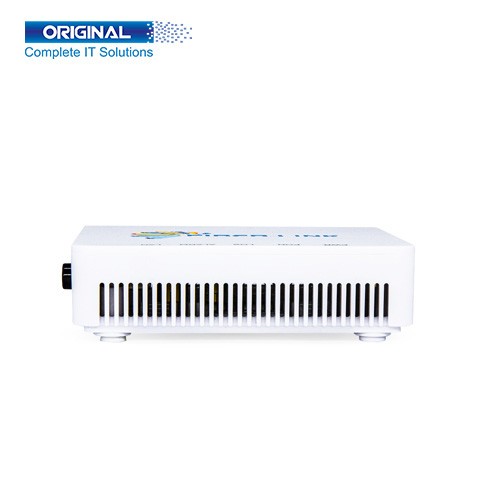

Fiber-Link 1ge Epon Bosa ONU


The Fiber-Link 1ge Epon Bosa ONU. EPON ONU is one of the EPON optical network unit plans that meet the necessities of broadband access networks. It is utilized in FTTH/FTTO for information and video administrations in view of EPON networks. EPON is the most recent age of access network technology. Based on ZTE's superior execution EPON access chipset. Give 1 GE versatile Ethernet port. Support span and directing mode, These highlights include superior execution sending to guarantee an incredible Internet and HD video administration experience. Therefore, it gives the ideal terminal arrangement and future-evidence administration support for FTTH organization.


The Fiber-Link 1ge Epon Bosa ONU. PON interface 1 EPON port (PX20+). Wavelength Tx1310nm,Rx 1490nm. SC/UPC connector. Receiving saturation ≥-8dBm. Receiving sensitivity ≤-30dBm. Transmitting optical power 0~+4dBm. Transmission distance 20KM. LAN interface 1*10/100/1000M Full/Half, RJ45 connector. Operating condition Temperature -30ºC~+70ºC, Humidity 10%~90%(non-condensing). Storing condition Temperature -30ºC~+70ºC, Humidity 10%~90%(non-condensing). Power supply DC 12V/0.5A. Power consumption ≤4W. Dimension 110mm(L) x100mm(W) x23mm (H). Net  weight 0.22kg. With 1 Year Warranty.
