| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | Z590 |
| General Information | ||

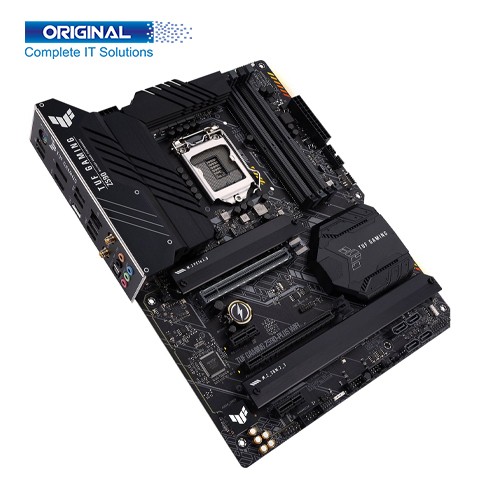

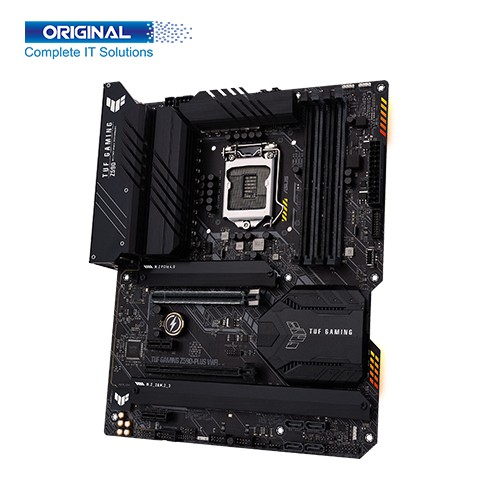

| Model | Asus TUF Gaming Z590-Plus Wi-Fi | |
| Brand | ASUS | |
| Supported Processor | Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors | |
| Chipset | Intel Z590 Chipset | |
| Socket | LGA1200 | |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 5133/ 5000/ 4800/ 4700/ 4600/ 4500/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3400/ 3333/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 | |
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | * 1 x DisplayPort 1.4** * 1 x HDMITM 2.0*** * Graphics specifications may vary between CPU types. * Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. * Only Intel® 11th processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update. * VGA resolution support depends on processors' or graphic cards' resolution. |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 4.0/3.0 x16 slot* * Intel® 11th processors support PCIe 4.0 x16 * Intel®10th processors support PCIe 3.0 x16 * Intel® Z590 Chipset * 1 x PCIe 3.0 x16 slot (supports x4 mode) * 2 x PCIe 3.0 x1 slots |
|
| Storage Information | ||
| M.2 | * Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
* M.2_1 slot (Key M), type 2242/2260/2280/22110
* M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
* M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
* M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
* M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled. |
|
| SATA | 6 x SATA 6Gb/s ports | |
| RAID | * Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. | |
| Connector Information | ||
| Internal Connectors | * Fan and Cooling related * 1 x 4-pin CPU Fan header * 1 x 4-pin CPU OPT Fan header * 1 x 4-pin AIO Pump header * 3 x 4-pin Chassis Fan headers * Power related * 1 x 24-pin Main Power connector * 1 x 8-pin +12V Power connector * 1 x 4-pin +12V Power connector * Storage related * 3 x M.2 slots (Key M) * 6 x SATA 6Gb/s ports * USB * 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) * 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports * 2 x USB 2.0 headers support additional 4 USB 2.0 ports * Miscellaneous * 2 x AURA Addressable Gen 2 headers * 2 x AURA RGB headers * 1 x Clear CMOS header * 1 x COM Port header * 1 x Front Panel Audio header (AAFP) * 1 x 20-3 pin System Panel header with Chassis intrude function * 1 x Thunderbolt™ header |
|
| Port Information | ||
| PS/2 Port | * 1 x PS/2 Keyboard/Mouse combo port |
|
| USB Port | * 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
* 2 x USB 3.2 Gen 2 ports (2 x Type-A)
* 2 x USB 3.2 Gen 1 ports (2 x Type-A)
* 2 x USB 2.0 ports (2 x Type-A) |
|
| HDMI Port | * 1 x HDMI™ port | |
| DisplayPort | * 1 x DisplayPort | |
| LAN Port | * 1 x Intel® I225-V 2.5Gb Ethernet port* 1 x Intel® I225-V 2.5Gb Ethernet* TUF LANGuard | |
| Audio Port | * 5 x Audio jacks | |
| Wi-Fi Module | WiFi 6 and 2.5 Gb | |
| Operating System | ||
| Supported OS | Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 3 Years |
|
Asus TUF Z590-Plus Wi-Fi motherboards provide the solid foundation needed for your first build, plus elasticity to grow with your ambitions. We have melded all the good stuff that is packed into the latest Build in Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors with the necessary design and engineering, so you advantage from industry-leading technologies, extensive cooling controls, including automated system tuning, and immersive onboard audio.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus TUF Z590-Plus Wi-Fi motherboards provide the solid foundation needed for your first build, plus elasticity to grow with your ambitions. We have melded all the good stuff that is packed into the latest Build in Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors with the necessary design and engineering, so you advantage of industry-leading technologies, extensive cooling controls, including automated system tuning, and immersive onboard audio. Asus TUF Z590-Plus Wi-Fi Motherboard comes with 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors with Intel Socket LGA1200, Build in Intel Z590 Chipset with 192 (128+64) Mb Flash ROM, UEFI AMI BIOS, 30.5 cm x 24.4 cm ATX Form Factor. Asus TUF Z590-Plus Wi-Fi Gaming Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 5133/ 5000/ 4800/ 4700/ 4600/ 4500/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3400/ 3333/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133. Asus TUF Z590-Plus Wi-Fi Motherboard comes with standard Graphics such as 1 x DisplayPort 1.4, 1 x HDMI 2.0, and Support DisplayPort 1.4 with max. Resolution of 4096 x 2304 @60Hz. TUF Z590-Plus Wi-Fi Asus Motherboard Expansion PCI Slots is 1 x PCIe 3.0/4.0 x 16 slots, 6 x SATA 6 GB/s, 1 x M.2_1 socket 3, 1 x M.2_2 socket 3, Supported Raid 0, 1, 5, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, etc. The Asus TUF Z590-Plus Wi-Fi ATX Motherboard has 1 x LAN (RJ45) port, 2 USB 3.2 Gen 1, 2 USB 2.0 ports, 1x Display Port, 5 x Audio jack(s), etc many others. This Asus TUF Z590-Plus Wi-Fi LAG 1200 Motherboard has some special features like Intel Wi-Fi 6 and 2.5 Gb support, 1 x Intel I225-V 2.5Gb Ethernet port 1 x Intel I225-V 2.5Gb Ethernet TUF LANGuard. Asus TUF Z590-Plus Wi-Fi Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty.
