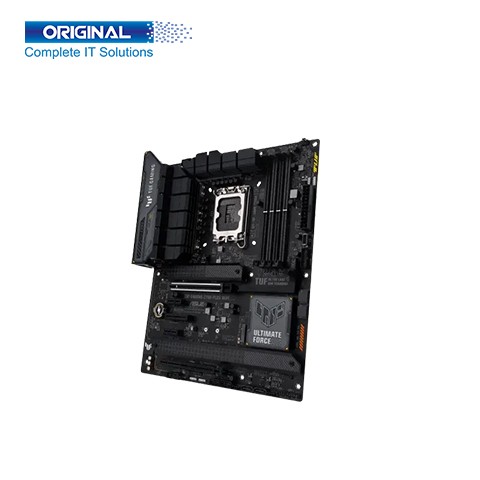

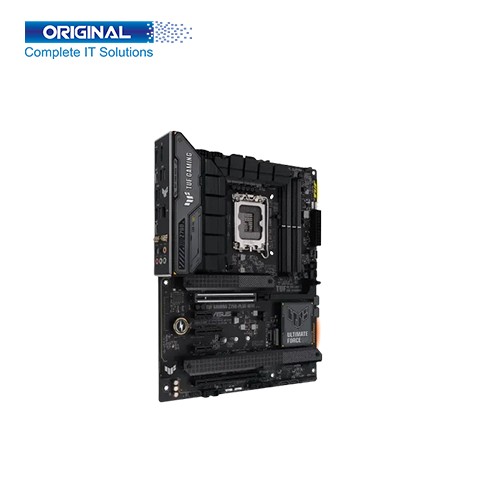

ASUS TUF GAMING Z790-PLUS Wi-Fi 13th & 12th Gen ATX Motherboard

Special Price :           ৳47,500
Regular Price(EMI) :           ৳49,200
Status :           In Stock
Brand :           Asus
Product Code :           TUF GAMING Z790-PLUS Wi-Fi

Short Details:

  • • Model: TUF GAMING Z790-PLUS Wi-Fi
  • • Chipset: Intel Z790 Chipset
  • • Memory Types: DDR5
  • • Maximum Memory ;128GB

See More Details

৳47,500

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model TUF GAMING Z790-PLUS Wi-Fi
Brand ASUS
Supported Processor

Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset Intel Z790 Chipset
Socket LGA1700
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory Information
Memory Types DDR5
Channel Dual Channel
Slot 4 x DIMM
Supported Bus Speed

7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem II

Maximum Memory 128GB
Graphics Information
Graphics

1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4)

1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)

Expansion Slots
PCI

Intel 13th & 12th Gen Processors

1 x PCIe 5.0 x16 slot

Intel Z790 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 4.0 x4 slot

2 x PCIe 3.0 x1 slots

Storage Information
M.2 4 x M.2 slots
SATA 4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Connector Information
Internal Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers


Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connectors

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports


USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ (USB4®) header


Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Wi-Fi Module

1 x Intel 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

Port Information
USB Port

Rear USB (Total 8 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

HDMI Port 1 x HDMI® port
Display Port 1 x DisplayPort
LAN Port

1 x Intel 2.5Gb Ethernet

TUF LANGuard

Audio Jack 5 x Audio jacks
Operating System
Supported OS Windows 11, Windows 10 64-bit
Others
Special Features

ASUS TUF PROTECTION

- DIGI+ VRM (- Digital power design with DrMOS)

- ESD Guards

- TUF LANGuard

- Overvoltage Protection

- Safeslot

- Stainless-Steel Back I/O


ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot


ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design


ASUS EZ DIY

- CPU Socket lever protector

- ProCool

- Pre-mounted I/O shield

- SafeDIMM


AURA Sync

- Aura RGB header

- Addressable Gen 2 headers

Warranty
Warranty 3 years

Description:


ASUS TUF GAMING Z790-PLUS Wi-Fi 13th & 12th Gen ATX Motherboard


ASUS TUF GAMING Z790-PLUS Wi-Fi 13th & 12th Gen ATX Motherboard with more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus GAMING Z790-PLUS Motherboard.


ASUS TUF GAMING Z790-PLUS Wi-Fi 13th & 12th Gen ATX Motherboard Brand is ASUS, Supported Processor Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, Chipset Intel Z790 Chipset, Socket LGA1700, BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS, Form Factor ATX 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Memory Types DDR5, Channel Dual Channel, Slot 4 x DIMM, Supported Bus Speed 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel Extreme Memory Profile (XMP), OptiMem II, Maximum Memory 128GB. ASUS TUF GAMING Z790-PLUS Wi-Fi Motherboard Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4), 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1), PCI  Intel 13th & 12th Gen Processors, 1 x PCIe 5.0 x16 slot, Intel Z790 Chipset, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x4 slot, 2 x PCIe 3.0 x1 slots. ASUS 13th & 12th Gen ATX Motherboard M.2 4 x M.2 slots, SATA 4 x SATA 6Gb/s ports, RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, Internal Connectors Fan and Cooling related 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors, Storage related 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Miscellaneous 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header,1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt™ (USB4®) header, Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C), 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi Module, 1 x Intel 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port. ASUS TUF GAMING 12th Gen ATX Motherboard USB Port Rear USB (Total 8 ports), 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C), 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C), 4 x USB 3.2 Gen 1 ports (4 x Type-A), Front USB (Total 7 ports), 1 x USB 3.2 Gen 2 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, HDMI Port 1 x HDMI® port, Display Port 1 x DisplayPort, LAN Port 1 x Intel 2.5Gb Ethernet, TUF LANGuard, Audio Jack 5 x Audio jacks, Supported OS Windows 11, Windows 10 64-bit also Special Features ASUS TUF PROTECTION DIGI+ VRM (- Digital power design with DrMOS), ESD Guards, TUF LANGuard, Overvoltage Protection, Safeslot, Stainless-Steel Back I/O, ASUS Q-Design M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot, ASUS Thermal Solution M.2 heatsink, VRM heatsink design, ASUS EZ DIY, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, Safe DIMM, AURA Sync, Aura RGB header Addressable Gen 2 headers. ASUS TUF GAMING Z790-PLUS Wi-Fi 13th & 12th Gen ATX Motherboard 3 years Warranty.
