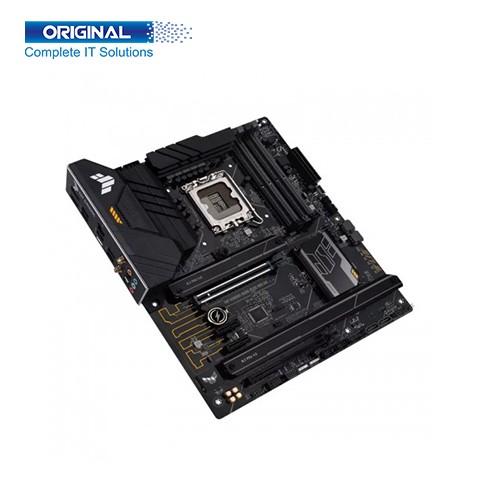

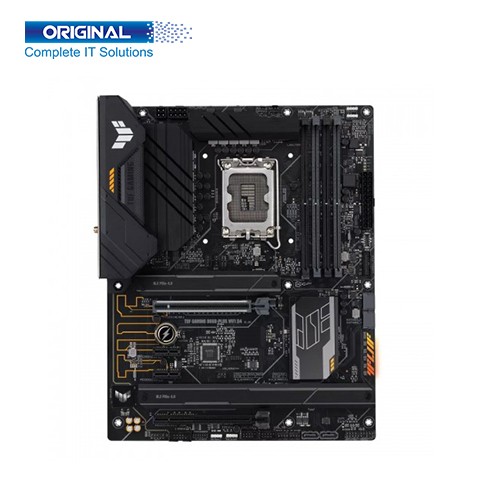

Asus TUF GAMING B660-PLUS WIFI D4 12th Gen ATX Motherboard

Price :           To be announced
Status :           Up Comming
Brand :           Asus
Product Code :           TUF GAMING B660-PLUS WIFI D4

Short Details:

  • • Model: TUF GAMING B660-PLUS WIFI D4
  • • Socket: LGA1700
  • • Form Factor: ATX; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • • Memory Types: DDR4

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

TUF GAMING B660-PLUS WIFI D4

Brand Asus
Supported Processor

Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset Intel® B660 Chipset
Socket LGA1700
BIOS 128 Mb ROM, UEFI AMI BIOS
Form Factor ATX; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory Information
Memory Types

DDR4

Channel Dual Channel
Slot 4 x DIMM
Supported Bus Speed Support for DDR4 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory
Maximum Memory 128 GB
Graphics Information
Graphics

1 x DisplayPort (Supports [email protected] as specified in DisplayPort 1.4)

1 x HDMI port (Supports [email protected] as specified in HDMI 2.1)

Expansion Slots
PCI

* Intel® 13th & 12th Gen Processors

1 x PCIe 5.0/4.0/3.0 x16 slot(s)


* Intel® B660 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x1 slots

Storage Information
M.2

3 x M.2 slots

SATA 4 x SATA 6Gb/s ports
RAID Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
Connector Information
Internal Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)


Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector


Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports


USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports


Miscellaneous

3 x Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header

Port Information
USB Port

Rear USB (Total 6 ports)

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

3 x USB 3.2 Gen 1 port(s) (3 x Type-A)

1 x USB 2.0 port(s) (1 x Type-A)


Front USB (Total 7 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

HDMI Port 1 x HDMI® port
Display Port 1 x DisplayPort
LAN Port 1 x Intel® 2.5Gb Ethernet
Audio Jack 5 x Audio jacks
Other Information
WIFI & BLUETOOTH

Wi-Fi 6

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2

Operating System
Supported OS

Windows® 11 64-bit, Windows® 10 64-bit

Warranty
Warranty

3 Years Warranty

Descripton:


Asus TUF GAMING B660-PLUS WIFI D4 12th Gen ATX Motherboard


Asus TUF GAMING B660-PLUS WIFI D4 12th Gen ATX Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus TUF GAMING B660-PLUS WIFI D4 Motherboard.


Asus TUF GAMING B660-PLUS WIFI D4 12th Gen ATX Motherboard. Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Intel® B660 Chipset. Socket LGA1700. Form Factor ATX; 12 inch x 9.6 inches ( 30.5 cm x 24.4 cm ). Asus TUF GAMING B660-PLUS WIFI D4 Memory Types DDR4, Dual-Channel. Slot 4 x DIMM. Support for DDR4 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory. Maximum Memory 128 GB. Graphics is 1 x DisplayPort (Supports [email protected] as specified in DisplayPort 1.4), and 1 x HDMI port (Supports [email protected] as specified in HDMI 2.1). PCI is Intel® 13th & 12th Gen Processors: 1 x PCIe 5.0/4.0/3.0 x16 slot(s), Intel® B660 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots. Storage Supports 3 x M.2 slots, 4 x SATA 6Gb/s ports. USB Port is Rear USB (Total 6 ports): 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port(s) (1 x Type-A), 3 x USB 3.2 Gen 1 port(s) (3 x Type-A), 1 x USB 2.0 port(s) (1 x Type-A), Front USB (Total 7 ports): 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports, Display Port is 1 x DisplayPort, HDMI Port is 1 x HDMI port, LAN Port is 1 x Intel® 2.5Gb Ethernet, Audio Port is 5 x Audio jacks. Supported Operating System Support for Windows® 11, and Windows® 10 64-bit. Asus TUF GAMING B660-PLUS WIFI D4 12th Gen ATX Motherboard has Three years warranty.
