| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | TUF GAMING B560M-E |
| General Information | ||
| Model | TUF GAMING B560M-E |
|
| Brand | ASUS | |
| Supported Processor | Support for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors | |
| Chipset | B560 | |
| Socket | LGA1200 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX; 24.4cm x 23.4cm | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | Support for DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
|
| Max Memory Size | 128 GB | |
| Graphics Information | ||
| Graphics | 1 x DP1.4** * Graphics specifications may vary between CPU types. ** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. *** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. |
|
| Expansion Slots | ||
| PCI | * Intel® 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 - Intel®10th Gen processors support PCIe 3.0 x16 * Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slots |
|
| Storage Information | ||
| M.2 | 2 x M.2 slots |
|
| SATA | 6 x SATA 6Gb/s ports | |
| Connector Information | ||
| Internal Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 Keyboard/Mouse combo port |
|

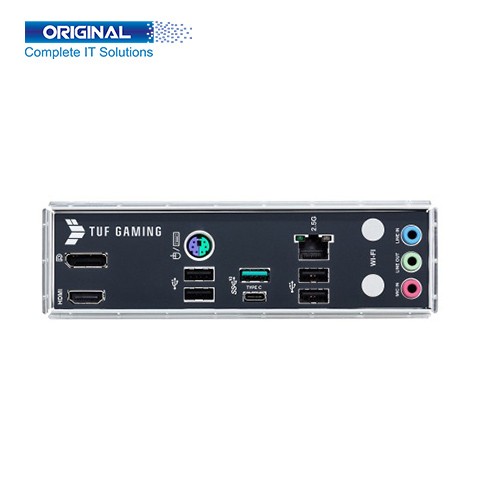

| USB Port | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports |
|
| HDMI Port | 1 x HDMI™ port | |
| Display Port | 1 x DisplayPort | |
| LAN Port | 1 x Realtek 2.5Gb Ethernet port | |
| Audio Jack | 3 x Audio jacks | |
| Other Information | ||
| WIFI & BLUETOOTH | V-M.2 slot only (Key E, CNVi & PCIe) |
|
| Operating System | ||
| Supported OS | Windows® 10 - 64 bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|

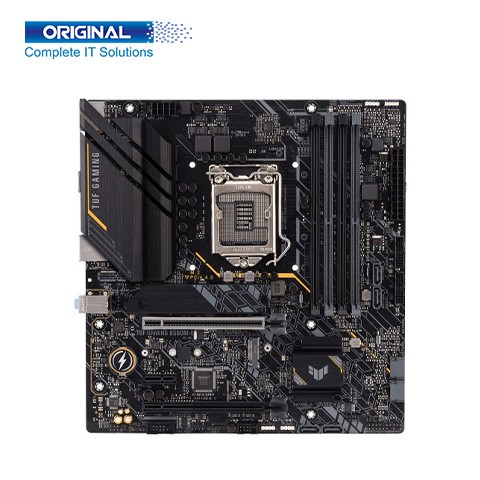

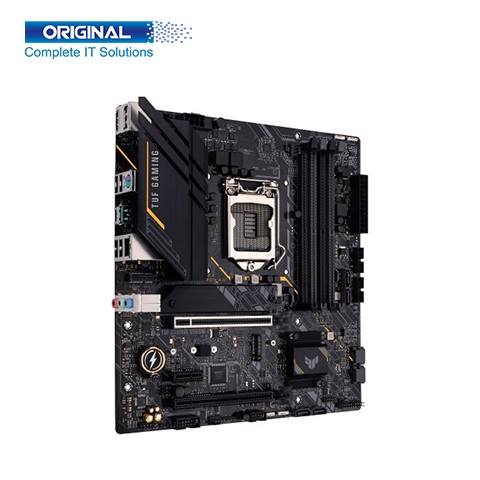

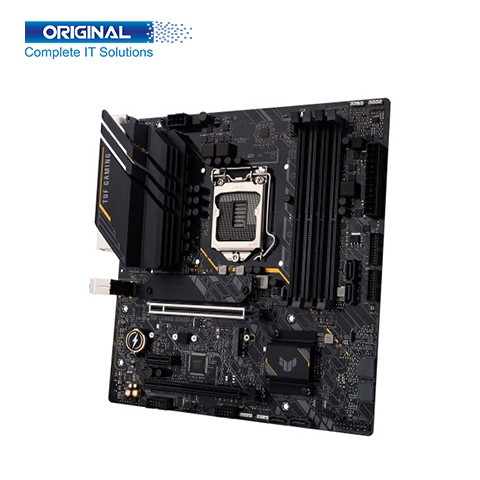

ASUS TUF GAMING B560M-E Intel mATX Motherboard With more cores’ processors, thermal and power design is more critical to ensure the temperature keeps lower. Support for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus TUF GAMING B560M-E Motherboard.
ASUS TUF GAMING B560M-E Intel mATX Motherboard. Support for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors. Intel® B560 Chipset. Socket LGA1200. Form Factor microATX; 24.4cm x 23.4cm. Asus TUF GAMING B560M-E Memory Types DDR4, Dual-Channel. Slot 4 x DIMM. Max Memory Size is 128 GB. Graphics is 1 x DP1.4, Graphics specifications may vary between CPU types. Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. PCI is Intel® 11th &10th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot, - Intel® 11th Gen processors support PCIe 4.0 x16, - Intel®10th Gen processors support PCIe 3.0 x16, Intel® B560 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slots. Storage is 2 x M.2 slots, 6 x SATA 6Gb/s ports. PS/2 Port is 1 x PS/2 Keyboard/Mouse combo port, USB Port is Rear USB (Total 6 ports): 2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C®), 4 x USB 2.0 port(s) (4 x Type-A), Front USB (Total 7 ports): 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports, 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports, 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports, Display Port is 1 x DisplayPort, HDMI Port is 1 x HDMI™ port, LAN Port is 1 x Realtek 2.5Gb Ethernet port, Audio Port is 3 x Audio jacks. Supported Operating System Support for Windows® 10 - 64 bit. ASUS TUF GAMING B560M-E Intel mATX Motherboard has Three years warranty.
