| Price | : | To be announced |
| Status | : | Up Comming |
| Brand | : | Asus |
| General Information | ||
| Model | TUF GAMING B550M-E WIFI | |
| Brand | Asus | |
| Supported Processor | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | AMD B550 | |
| Socket | AM4 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX: 24.4cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/ 4400(OC)/4333(OC)/4266(OC)/4200(OC)/ 4133(OC)/4000(OC)/3866(OC)/3733(OC)/ 3600(OC)/3466(OC)/3400(OC)/3333(OC)/ 3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory |
|
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | 1 x DisplayPort 1.2 1 x D-Sub 1 x HDMI 2.1 ([email protected]) |
|
| Expansion Slots | ||
| PCI | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD B550 Chipset 2 x PCIe 3.0 x1 slots |
|
| Storage Information | ||
| M.2 | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 4000 G-Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
|
| SATA | 4 x SATA 6Gb/s ports | |
| Raid | Support RAID 0, 1, 10 | |
| Connector Information | ||
| Internal Connector | Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related: 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous: 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 Keyboard/Mouse combo port | |
| USB Port | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x USB 3.2 Gen 1 connector (supports USB Type C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) |
|
| LAN Port | TUF LAN Guard 1 x Realtek 1Gb Ethernet port |
|
| HDMI Port | 1 x HDMI™ port | |
| D-Sub Port | 1 x D-Sub port | |
| Display Port | 1 x DisplayPort | |
| Audio Jack | 3 x Audio jacks | |
| Flash Back Button | 1 x BIOS FlashBack™ button | |
| Wi-Fi Module | 1 x ASUS Wi-Fi Module | |
| Other Information | ||
| Wireless & Bluetooth | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.1 * Bluetooth v5.1 function will be ready in Windows 10 build 19041 or later. |
|
| Operating System | ||
| Supported OS | Windows 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years | |

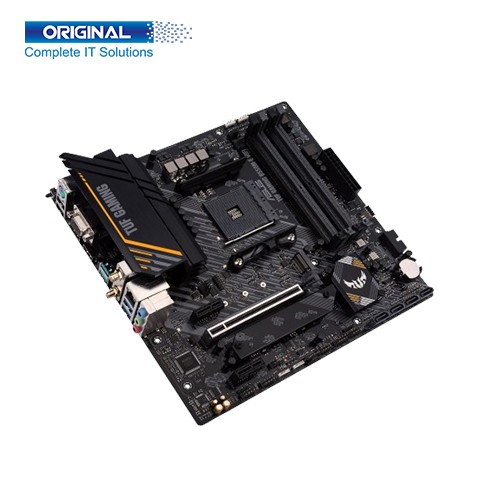

Asus TUF GAMING B550M-E WIFI AMD Micro ATX Motherboard. As a gaming motherboard with elegant aesthetics and for high-end computers and CPUs, it will undoubtedly be a very good option. It also introduces a few new features. These B550 boards are introducing updates in the BIOS.
Asus TUF GAMING B550M-E WIFI AMD Micro ATX Motherboard. The Motherboard Model is TUF GAMING B550M-E WIFI. The Brand Asus. Supported Processor AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors. Chipset AMD B550. Socket AM4. BIOS 256 Mb Flash ROM, UEFI AMI BIOS. Form Factor microATX: 24.4cm x 24.4cm. Memory Types DDR4, Dual Channel, 4 x DIMM. Maximum Memory 128 GB. Graphics 1 x DisplayPort 1.2, 1 x D-Sub, 1 x HDMI 2.1 ([email protected]). PCI AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode). AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors: 1 x PCIe 3.0 x16 slot (supports x16 mode). AMD B550 Chipset: 2 x PCIe 3.0 x1 slots. M.2 AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes). AMD Ryzen™ 4000 G-Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes). AMD B550 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes). 4 x SATA 6Gb/s ports. Support RAID 0, 1, 10. 1 x PS/2 Keyboard/Mouse combo port. 2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 3.2 Gen 1 port (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x USB 3.2 Gen 1 connector (supports USB Type C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 port, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, 2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 3.2 Gen 1 port (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A). LAN Port TUF LAN Guard. 1 x Realtek 1Gb Ethernet port. 1 x HDMI™ port. 1 x D-Sub port. 1 x DisplayPort. 3 x Audio jacks. 1 x BIOS FlashBack™ button. 1 x ASUS Wi-Fi Module. 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.1. Bluetooth v5.1 function will be ready in Windows 10 build 19041 or later. Supported Operating System Windows 10 64-bit. Asus TUF GAMING B550M-E WIFI AMD Micro ATX Motherboard comes with 03 years warranty.
