| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| General Information | ||
| Model | TUF GAMING A520M-PLUS WIFI | |
| Brand | Asus | |
| Supported Processor | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | AMD A520 | |
| Socket | AM4 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro ATX: 24.4cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU |
|
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | 1 x DisplayPort 1.2 1 x HDMITM 2.1(4K@60Hz) 1 x D-Sub |
|
| Expansion Slots | ||
| PCI | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots |
|
| Storage Information | ||
| M.2 | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset |
|
| SATA | 4 x SATA 6Gb/s ports | |
| Raid | Support RAID 0, 1, 10 | |
| Connector Information | ||
| Internal Connector | Fan and cooling related: 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related: 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous: 2 x AURA Addressable Gen 2 header neous2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
|

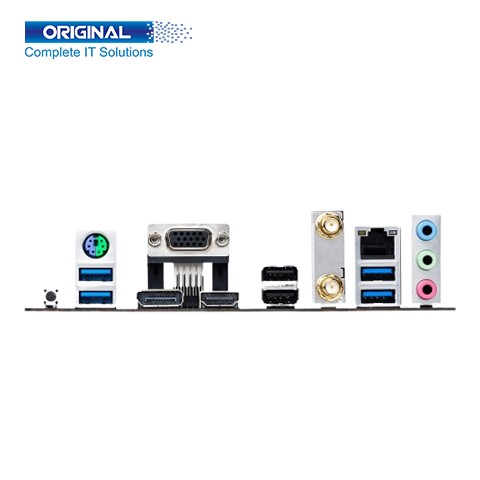

| Port Information | ||
| PS/2 Port | 1 x PS/2 Keyboard/Mouse combo port |
|
| USB Port | Rear USB: Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports |
|
| HDMI Port | 1 x HDMI port | |
| Display Port | 1 x DisplayPort | |
| D-Sub Port | 1 x D-Sub | |
| LAN Port | 1 x Realtek 1Gb Ethernet TUF LANGuard 1 x Realtek 1Gb Ethernet TUF LANGuard |
|
| Audio Jack | 3 x Audio jacks | |
| Flash Back Button | 1 x BIOS FlashBack™ button | |
| Wi-Fi Module | 1 x ASUS Wi-Fi Module | |
| Other Information | ||
| Wireless & Bluetooth | Realtek Wi-Fi 5 8821CE 1x1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO Supports dual frequency band 2.4/5GHz Supports channel bandwidth: HT20/HT40/HT80 Bluetooth v5.0 |
|
| Operating System | ||
| Supported OS | Windows 10 64 bit | |
| Warranty | ||
| Warranty | 03 Years | |
Asus TUF GAMING A520M-PLUS WIFI AMD Motherboard. As a gaming motherboard with elegant aesthetics and for high-end computers and CPUs, it will undoubtedly be a very good option. It also introduces a few new features. These A520 boards are introducing updates in the BIOS.
Asus TUF GAMING A520M-PLUS WIFI AMD Motherboard. The Motherboard Model is TUF GAMING A520M-PLUS WIFI. The Brand Asus. Supported Processor AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors. Chipset AMD A520. Socket AM4. 128 Mb Flash ROM, UEFI AMI BIOS. micro ATX: 24.4cm x 24.4cm. Memory Types DDR4, Dual Channel, 4 x DIMM. Maximum Memory 128 GB. Graphics 1 x DisplayPort 1.2, 1 x HDMITM 2.1(4K@60Hz), 1 x D-Sub. PCI AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors. 1 x PCIe 3.0 x16 slot (supports x16 mode). AMD A520 Chipset 2 x PCIe 3.0 x1 slots. Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports. AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors. M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes). AMD A520 Chipset. 4 x SATA 6Gb/s ports. Support RAID 0, 1, 10. 1 x PS/2 Keyboard/Mouse combo port. Rear USB: Total 6 ports: 4 x USB 3.2 Gen 1 ports (4 x Type-A). 2 x USB 2.0 ports (2 x Type-A). 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support additional 3 USB 2.0 ports. 1 x HDMI port. 1 x DisplayPort. 1 x D-Sub. 1 x Realtek 1Gb Ethernet. TUF LANGuard. 1 x Realtek 1Gb Ethernet. TUF LANGuard. 3 x Audio jacks. 1 x BIOS FlashBack™ button. 1 x ASUS Wi-Fi Module. Realtek Wi-Fi 5 8821CE. 1x1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO. Supports dual-frequency band 2.4/5GHz. Supports channel bandwidth: HT20/HT40/HT80. Bluetooth v5.0. Supported Operating System Windows 10 64-bit. Asus TUF GAMING A520M-PLUS WIFI AMD Motherboard comes with 03 years warranty.
