| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | B550M |
| General Information | ||

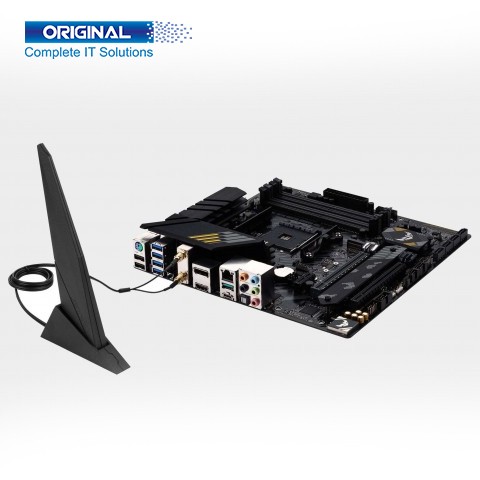

| Model | Asus TUF B550M-Plus Wi-Fi | |
| Brand | Asus | |
| Supported Processor | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series | |
| Chipset | AMD B550 | |
| Socket | AM4 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DDR4 DIMM | |
| Supported Bus Speed | 4600/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | * 1 x DisplayPort 1.2 * 1 x HDMI 2.1(4K@60HZ) |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 4.0 x16 (x16 mode) * 1 x PCIe 3.0 x16 (x16 mode) * 1 x PCIe 3.0 x16 (x4 mode) *1 * 1 x PCIe 3.0 x1 *1 |
|
| Storage Information | ||
| M.2 | * 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) * 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) * 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) |
|
| SATA | 4 x SATA 6Gb/s port(s), | |
| RAID | Support Raid 0, 1, 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x CPU Fan connector(s) * 1 x CPU OPT Fan connector(s) * 2 x Chassis Fan connector(s) * 2 x Aura RGB Strip Headers * 1 x Addressable Gen 2 header(s) * 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) * 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) * 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) * 1 x SPI TPM header * 4 x SATA 6Gb/s connector(s) * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin EATX 12V Power connectors * 1 x Front panel audio connector(s) (AAFP) * 1 x Clear CMOS jumper(s) * 1 x System panel connector * 1 x COM port header * 1 x Speaker connector |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse combo port(s) | |
| USB Port | * 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) * 2 x USB 2.0 * 4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™) |
|
| HDMI Port | 1 x HDMI | |
| DisplayPort | 1 x DisplayPort | |
| LAN Port | * 1 x LAN (2.5G) port(s) * Realtek RTL8125B 2.5Gb Ethernet |
|
| Audio Port | 5 x Audio jack(s) | |
| Optical S/PDIF | 1 x Optical S/PDIF out | |
| FlashBack™ Button | 1 x BIOS FlashBack™ Button(s) | |
| ASUS Wi-Fi Module | 1 x ASUS Wi-Fi Module | |
| Operating System | ||
| Supported OS | Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years | |
Asus TUF B550M-Plus Wi-Fi motherboard gives you the strong foundation you expect in your first form, in addition to the versatility of developing with your aspirations. We've put together all the cool stuff with basic planning and design in the latest AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series support, so you can benefit from industry-driven advances, including tuning of mechanical structures. Extensive cooling control, and lively locally available sound.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus TUF B550M-Plus Wi-Fi motherboard comes with AMD AM4 Socket for AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series, 256 Mb Flash ROM, UEFI AMI BIOS, mATX Form Factor (24.4 cm x 24.4 cm), Chipset AMD B550, Dual Channel 4 x DIMM DDR4 Maximum Memory 128GB, Supported Bus Speed 4600/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-cradled Memory.. In this Asus TUF B550M-Plus Wi-Fi motherboard, 1 x DisplayPort 1.2, 1 x HDMI 2.1(4K@60HZ), Expansion Slots are 1 x PCIe 3.0 x16 (x16 mode), 1 x PCIe 4.0 x16 (x16 mode), and in motherboard 1 x PCIe 3.0 x16 (x4 mode) *1, 1 x PCIe 3.0 x1 *1. Also in this motherboard, Internal Connectors are 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes), 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes), 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes), 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10. Moreover in this B550M-Plus Wi-Fi motherboard 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 2 x Chassis Fan connector(s), 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), Moreover internal Connector, 1 x SPI TPM header, 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Front panel audio connector(s) (AAFP), 1 x COM port header, 1 x Speaker connector, 1 x PS/2 keyboard/mouse combo port(s), 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®), 2 x USB 2.0, 4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack), 1 x LAN (2.5G) port(s), Realtek RTL8125B 2.5Gb Ethernet, 5 x Audio jack(s), 1 x ASUS Wi-Fi Module.
Asus TUF B550M-Plus Wi-Fi motherboard OS Support Windows® 10 64-bit. You can enjoy a 03 Years Warranty. Purchase Motherboard from Original Store Ltd and get online conveyance at any side of Bangladesh.
