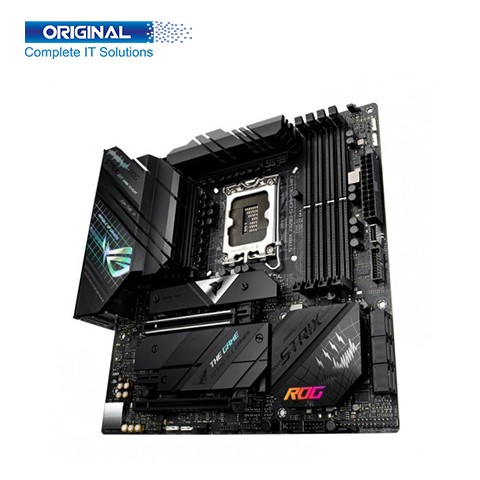

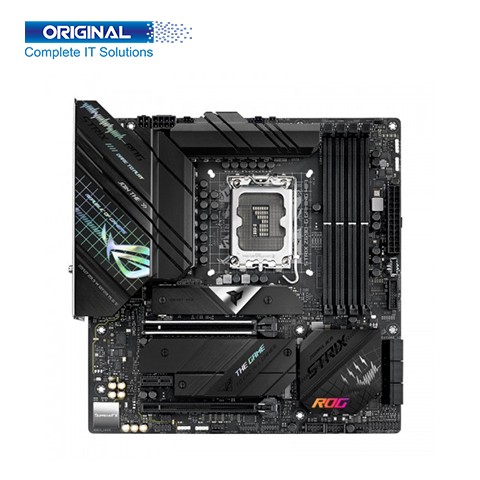

Asus ROG STRIX Z690-G GAMING WIFI Micro ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Asus
Product Code :           ROG STRIX Z690-G GAMING WIFI

Short Details:

  • • Model: ROG STRIX Z690-G GAMING WIFI
  • • Socket: LGA1700
  • • Form Factor: microATX; 24.4cm x 24.4cm
  • • Memory Types: DDR5

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

ROG STRIX Z690-G GAMING WIFI

Brand Asus
Supported Processor Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset Z690
Socket LGA1700
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX; 24.4cm x 24.4cm
Memory Information
Memory Types

DDR5

Channel Dual Channel
Slot 4 x DIMM
Supported Bus Speed Support for DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory
Maximum Memory 128 GB
Graphics Information
Graphics

1 x DisplayPort (Support max. [email protected] as specified in DisplayPort 1.4)

1 x HDMI port (Supports [email protected] as specified in HDMI 2.1)

Expansion Slots
PCI

* Intel 12th Gen Processor

1 x PCIe 5.0 x16 slot (supports x16 mode)

* Intel Z690 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slot

Storage Information
M.2

Supports 3 x M.2 slots

SATA 6 x SATA 6Gb/s ports
Connector Information
Internal Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers


Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector


Storage related

3 x M.2 slots (Key M)

6 x SATA 6Gb/s ports


USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-5 pin System Panel header

1 x Thermal Sensor header

1 x Thunderbolt™ header

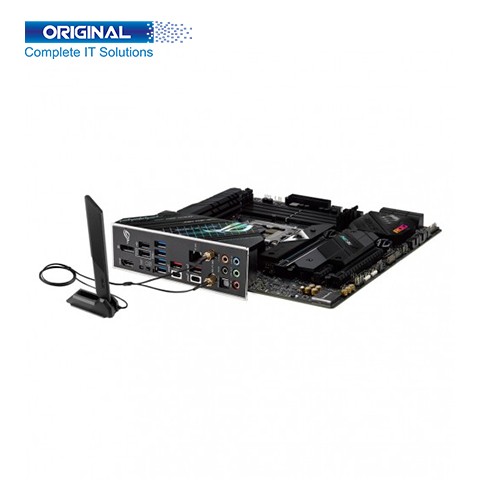

Port Information
USB Port

Rear USB: Total 10 ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)


Front USB: Total 7 ports

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

HDMI Port 1 x HDMI port
Display Port 1 x DisplayPort
LAN Port 1 x Intel 2.5Gb Ethernet
Audio Jack 1 x Front Panel Audio header (AAFP)
BIOS button 1 x BIOS FlashBack™ button
CMOS button 1 x Clear CMOS button
Other Information
WIFI & BLUETOOTH

Intel Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band

Bluetooth v5.2

Operating System
Supported OS

Windows® 11, Windows® 10 64-bit

Warranty
Warranty

3 Years Warranty

Descripton:


Asus ROG STRIX Z690-G GAMING WIFI Micro ATX Motherboard


Asus ROG STRIX Z690-G GAMING WIFI Micro ATX Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus ROG STRIX Z690-G GAMING WIFI Motherboard.


Asus ROG STRIX Z690-G GAMING WIFI Micro ATX Motherboard. Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Z690 Chipset. Socket LGA1700. Form Factor microATX; 24.4cm x 24.4cm. Asus ROG STRIX Z690-G GAMING WIFI Memory Types DDR5, Dual-Channel. Slot 4 x DIMM. Support for DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory. Maximum Memory 128 GB. Graphics is 1 x DisplayPort (Support max. [email protected] as specified in DisplayPort 1.4), and 1 x HDMI port (Supports [email protected] as specified in HDMI 2.1). PCI is Intel 12th Gen Processor: 1 x PCIe 5.0 x16 slot (supports x16 mode), Intel Z690 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slot. Storage Supports 3 x M.2 slots, 6 x SATA 6Gb/s ports. USB Port is Rear USB: Total 10 ports, 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB: Total 7 ports, 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Display Port is 1 x DisplayPort, HDMI Port is 1 x HDMI port, LAN Port is 1 x Intel 2.5Gb Ethernet, Audio Port is 1 x Front Panel Audio header (AAFP). Supported Operating System Support for Windows® 11 64-bit, and Windows® 10 64-bit. Asus ROG STRIX Z690-G GAMING WIFI Micro ATX Motherboard has Three years warranty.
