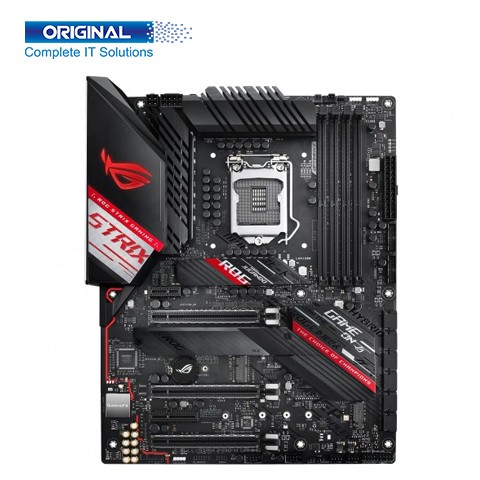

Asus ROG STRIX Z490-H GAMING DDR4 Intel 10th Gen Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Asus
Product Code :           Z490-H

Short Details:

  • • Model: Asus ROG STRIX Z490-H
  • • Chipset: Intel® Z490
  • • Socket: Intel® Socket 1200
  • • Memory Types: DDR4

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

Asus ROG STRIX Z490-H

Brand Asus
Supported Processor

Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors

Supports Intel 14 nm CPU

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset Intel® Z490
Socket Intel® Socket 1200
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory Information
Memory Types

DDR4

Channel Dual Channel
Slot 4 x DIMM
Supported Bus Speed

4600(O.C) / 4500(O.C) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory

OptiMem II

10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively

Maximum Memory 128GB
Graphics Information
Graphics

Integrated Graphics Processor

* 1 x DisplayPort 1.4

* 1 x HDMI 1.4b

Supports AMD 2-Way CrossFireX Technology

Expansion Slots
PCI

* 3 x PCIe 3.0 x16 (x16 or x8+x4+x4)

* 1 x PCIe 3.0 x4 (max at x2 mode)

* 1 x PCIe 3.0 x1

Storage Information
M.2

* 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

* 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

SATA 6 x SATA 6Gb/s port(s)
RAID Support Raid 0, 1, 5, 10
Connector Information
Internal Connectors

* 1 x M.2_FAN connector

* 1 x CPU Fan connector(s)

* 1 x CPU OPT Fan connector(s)

* 2 x Chassis Fan connector(s)

* 1 x AIO_PUMP connector

* 1 x Addressable RGB header

* 1 x AAFP connector

* 2 x Aura RGB Strip Headers

* 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)

* 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

* 1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)

* 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

* 1 x M.2 with E key for Wi-Fi module

* 6 x SATA 6Gb/s connector(s)

* 1 x Thunderbolt header(s)

* 1 x 24-pin EATX Power connector(s)

* 1 x 8-pin ATX 12V Power connector(s)

* 1 x 4-pin ATX 12V Power connector(s)

* 1 x System panel(s) (Chassis intrusion header is inbuilt)

* 1 x Thermal sensor connector(s)

* 1 x Clear CMOS jumper(s)

* 1 x CPU_OV jumper

* 1 x VRM_HS_FAN Header

Port Information
USB Port

Rear USB Port ( Total 7 )

* 2 x USB 3.2 Gen 2 port(s)(1 x Type-A + USB Type-C)

* 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

* 1 x USB 2.0 port(s)

Front USB Port ( Total 8 )

* 4 x USB 3.2 Gen 1 port(s)

* 4 x USB 2.0 port(s)

HDMI Port 1 x HDMI Port
Display Port 1 x Display Port
LAN Port 1 x Intel® I225-V 2.5Gb Ethernet
Audio Port 5 x Gold-plated audio jacks
S/PDIF Port 1 x Optical S/PDIF out
BIOS Button 1 x USB BIOS FlashBack™ Button(s)
Other Information
Special Features

Wireless Data Network

M.2 slot only (Key E) (Support CNVI & PCIe interface)*

*Wi-Fi module is sold separately.


ROG Exclusive Software

- RAMCache III

- ROG CPU-Z

- GameFirst VI

- Sonic Studio III + Sonic Studio Virtual Mixer

- Sonic Radar III

- DTS® Sound Unbound

- Overwolf

- Anti-virus software

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

AI Suite 3

-5-way Optimization with AI Overclocking.

 TPU

 EPU

 Digi+ VRM

 Fan Xpert 4

 Turbo app

 -EZ update

WinRAR

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

FlexKey


ASUS Special Features

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [ yellow green])

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum M.2 heatsink

ASUS EZ DIY

- BIOS Flashback™ button

-BIOS FlashBackTM LED

- Procool II

- Pre- mounted I/O shield

- SafeSlot

AURA Sync

- 2 x Standard RGB headers

- Addressable Gen 2 RGB header

Onboard red LED lighting accent

Operating System
Supported OS

Windows® 10 64-bit

Warranty
Warranty

03 Years Warranty

Description:


Asus ROG STRIX Z490-H GAMING DDR4 Intel 10th Gen Motherboard


Asus ROG STRIX Z490-H Motherboard comes with Intel Core 10th Gen, Celeron Processors, and Pentium Gold, Tt is Intel 14 nm CPU, Moreover, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, Intel Z490 Chipset with 192 (128+64) Mb Flash ROM, UEFI AMI BIOS, 30.5 cm x 24.4 cm ATX Form Factor and Intel 1200 socket. Asus ROG STRIX Z490-H Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory, 10th Gen Intel® Core™i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Asus ROG STRIX Z490-H gaming Motherboard with standard Graphics such as 1x Display port 1.4, 1 x HDMI 1.4b Supports AMD 2-Way CrossFireX Technology. ROG STRIX Z490-H Asus Motherboard Expansion PCI Slots is 3 x PCIe 3.0/4.0 x 16 slots, 6 x SATA 6 GB/s, 1 x M.2_1 socket 3 and 1 x M.2_2 socket 3, Supports RAID 0, 1, 5, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, etc. ROG STRIX Z490-H Asus Motherboard has 2 x Intel® I225-V 2.5Gb Ethernet LAN controller, 4 USB 3.2 Gen 1, 5 USB 2.0 ports, 1x Display Port, 5 x Gold-plated audio jacks, etc many others. The Asus ROG STRIX Z490-H DDR4 Motherboard has some special features like Wireless  Data Network M.2 slot only, ROG Exclusive Software like Anti-virus software, ROG CPU-Z also some are ASUS Exclusive Software.


Asus ROG STRIX Z490-H Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty, You can buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
