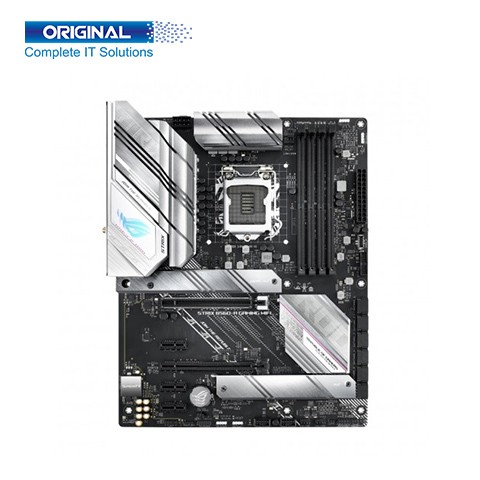

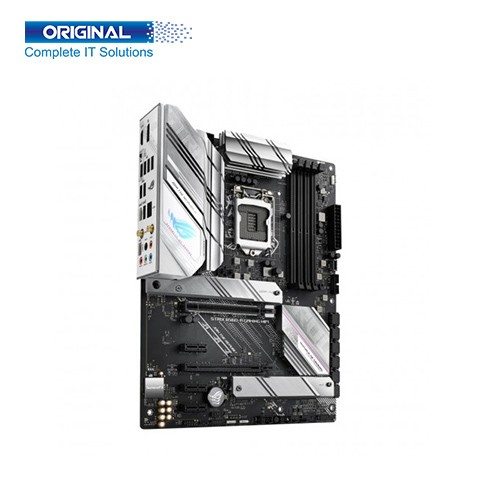

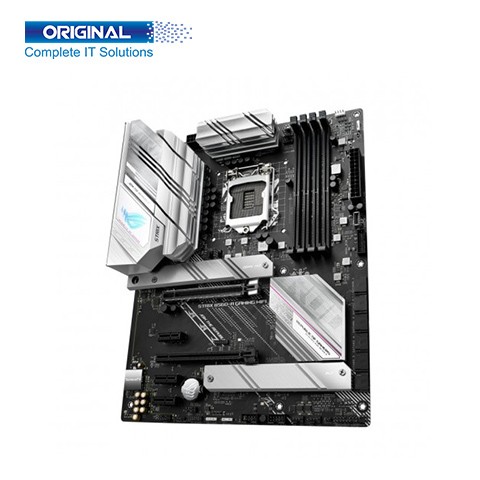

ASUS ROG STRIX B560-A GAMING WIFI ATX Motherboard

Special Price :           ৳22,650
Regular Price(EMI) :           ৳23,850
Status :           In Stock
Brand :           Asus
Product Code :           ROG STRIX B560-A GAMING WIFI

Short Details:

  • • Model: ROG STRIX B560-A GAMING WIFI
  • • Socket: LGA1200
  • • Form Factor: ATX; 30.5cm x 24.4cm
  • • Memory Types: DDR4

See More Details

৳22,650

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

ROG STRIX B560-A GAMING WIFI

Brand ASUS
Supported Processor Support for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors
Chipset B560
Socket LGA1200
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX; 30.5cm x 24.4cm
Memory Information
Memory Types

DDR4

Channel Dual Channel
Slot 4 x DIMM
Supported Bus Speed

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem II

* 10th Gen Intel i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively.

Graphics Information
Graphics

1 x DisplayPort 1.4

1 x HDMI 2.0

Expansion Slots
PCI

* Intel® 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot(s)

- Intel® 11th processors support PCIe 4.0 x16 mode

- Intel®10th processors support PCIe 3.0 x16 mode


* Intel® B560 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)*

3 x PCIe 3.0 x1 slots

Storage Information
M.2

2 x M.2 slots

SATA 6 x SATA 6Gb/s ports
Connector Information
Internal Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)


Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector


Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports


USB

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports


Miscellaneous

2 x AURA Addressable Gen 2 header(s)

2 x AURA RGB header(s)

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-5 pin System Panel heade

1 x Thunderbolt™ header

1 x S/PDIF Out header

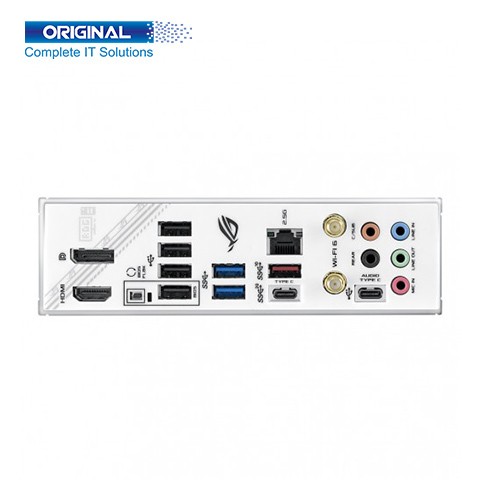

Port Information
USB Port

Rear USB (Total 9 ports)

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

2 x USB 3.2 Gen 1 port (2 x Type-A)

5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C®)


Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 connector(s) (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

HDMI Port 1 x HDMI™ port
Display Port 1 x DisplayPort
LAN Port 1 x Realtek 2.5Gb Ethernet
Audio Jack 5 x Audio jacks
BIOS Button 1 x BIOS FlashBack™ button
Other Information

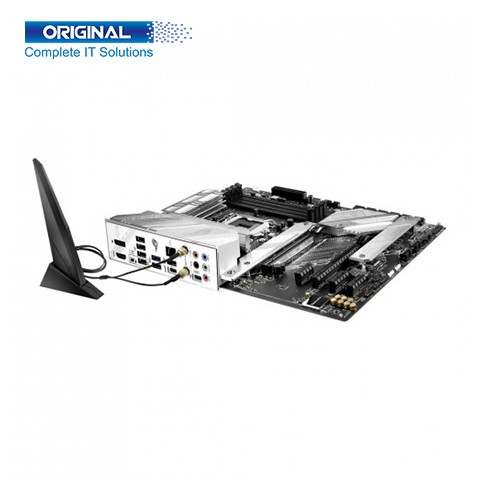

WIFI & BLUETOOTH

Intel Wi-Fi 6

Operating System
Supported OS

Windows® 11 64-bit, Windows® 10 64-bit

Warranty
Warranty

3 Years Warranty

Descripton:


ASUS ROG STRIX B560-A GAMING WIFI ATX Motherboard


ASUS ROG STRIX B560-A GAMING WIFI ATX Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus ROG STRIX B560-A GAMING WIFI Motherboard.


ASUS ROG STRIX B560-A GAMING WIFI ATX Motherboard. Support for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors. B560 Chipset. Socket LGA1200. Form Factor ATX; 30.5cm x 24.4cm. Asus ROG STRIX B560-A GAMING WIFI Memory Types DDR4, Dual-Channel. Slot 4 x DIMM. Support for DDR4 3200/2933/2800/2666/2400/2133/2666MHz. Graphics is 1 x DisplayPort 1.4, and 1 x HDMI 2.0. PCI is Intel® 11th &10th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot(s), - Intel® 11th processors support PCIe 4.0 x16 mode, - Intel®10th processors support PCIe 3.0 x16 mode, Intel® B560 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode)*, 3 x PCIe 3.0 x1 slots. Storage is 2 x M.2 slots, 6 x SATA 6Gb/s ports. USB Port is Rear USB (Total 9 ports): 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 port (2 x Type-A), 5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C®), Front USB (Total 7 ports): 1 x USB 3.2 Gen 1 connector(s) (support(s) USB Type-C®), 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports, Display Port is 1 x DisplayPort, HDMI Port is 1 x HDMI™ port, LAN Port is 1 x Realtek 2.5Gb Ethernet, Audio Port is 5 x Audio jacks, and BIOS Button is 1 x BIOS FlashBack™ button. Supported Operating System Support for Windows® 11, and Windows® 10 64-bit. ASUS ROG STRIX B560-A GAMING WIFI ATX Motherboard has Three years warranty.
