| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | B550-F |
| General Information | ||

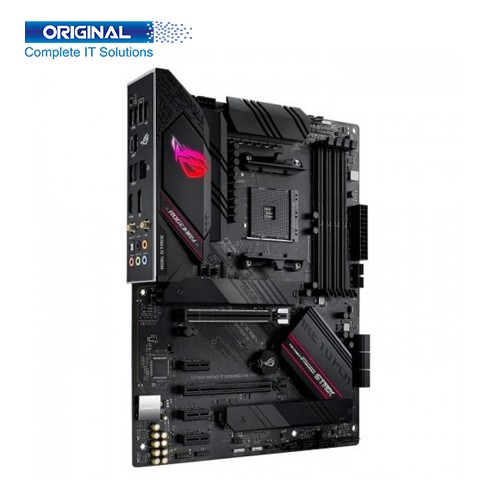

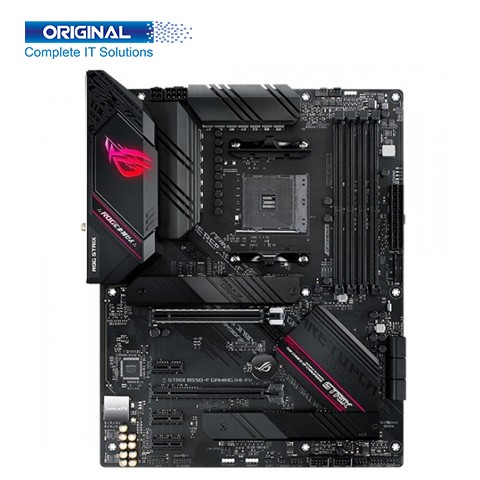

| Model | Asus ROG STRIX B550-F |
|
| Brand | Asus | |
| Supported Processor | AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | AMD B550 | |
| Socket | AM4 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4 x DDR4 DIMM | |
| Supported Bus Speed | AMD RyzenTM 4000 G-Series Processor: 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | * 1 x HDMI 2.1(4K@60HZ) * 1 x DisplayPort 1.2 Supports AMD 2-Way CrossFireX Technology |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 3.0 x16 (x4 mode) * * 3 x PCIe 3.0 x1 * 1 x PCIe 3.0 x16 (x16 mode) * 1 x PCIe 4.0 x16 (x16 mode) |
|
| Storage Information | ||
| M.2 | * 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) * 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* |
|
| SATA | 6 x SATA 6Gb/s port(s) | |
| RAID | Support Raid 0, 1, 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x CPU Fan connector(s) * 1 x CPU OPT Fan connector(s) * 3 x Chassis Fan connector(s) * 1 x AIO_PUMP connector * 1 x AAFP connector * 2 x Aura RGB Strip Header(s) * 1 x Addressable Gen 2 header(s) * 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) * 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) * 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) * 6 x SATA 6Gb/s connector(s) * 1 x Thunderbolt header(s) * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin ATX 12V Power connector(s) * 1 x 4-pin ATX 12V Power connector(s) * 1 x System panel(s) * 1 x Thermal sensor connector(s) * 1 x Clear CMOS jumper(s) |
|
| Port Information | ||
| USB Port | * 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) * 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) * 2 x USB 3.2 Gen 1 port(s) * 2 x USB 2.0 port(s) * 4 x USB 2.0 port(s) |
|
| HDMI Port | 1 x HDMI | |
| Display Port | 1 x DisplayPort | |
| LAN Port | 1 x Intel® I225-V 2.5Gb Ethernet ASUS LANGuard | |
| Audio Port | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A * Dual OP Amplifiers * Impedance sense for front and rear headphone outputs * Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking * High quality 120 dB SNR stereo playback output and 113 dB SNR recording input * Supports up to 32-Bit/192kHz playback Audio Feature : * SupremeFX Shielding Technology * Gold-plated jacks * Optical S/PDIF in port(s) at the back panel * Audio Shielding * Premium Japanese audio capacitors * Audio Cover * 5 x Gold-plated audio jacks |
|
| Other Information | ||
| Special Features | ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3: - PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack™ button -BIOS FlashBack™ LED -Clear CMOS header -ProCool -Pre-mounted I/O shield - SafeSlot |
|
| Operating System | ||
| Supported OS | Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
This Asus ROG STRIX B550-F Gaming Motherboard comes with Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors with Build-in AM4 Socket, AMD B550 Chipset with 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2, 30.5 cm x 24.4 cm ATX Form Factor. Asus ROG STRIX B550-F AMD Motherboard Maximum 128 GB DDR4 Quad Channel Memory, 8 x DDR4 DIMM sockets, Supported Bus Speed AMD RyzenTM 4000 G-Series Processor: 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz It is Un-buffered Memory.
Asus ROG STRIX B550-F Gaming Motherboard comes with standard Graphics such as 1 x HDMI 2.1(4K@60HZ), 1 x DisplayPort 1.2, Supports AMD 2-Way CrossFireX Technology. ROG STRIX B550-F Asus Motherboard Expansion PCI Slots is 1 x PCIe 3.0 x 16 slots, 6 x SATA 6 GB/s, 1 x M.2_1 socket 3 Supports Support Raid 0, 1, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, etc. The Asus ROG STRIX B550-F Gaming Motherboard has 1 x Intel® I225-V 2.5Gb Ethernet ASUS LANGuard, 4 USB 3.2 Gen 1, 8 USB 2.0 ports, 1x Display Port, * 5 x Audio jack(s), etc many others. ROG STRIX B550-F Asus Motherboard has some special features like Gaming Aesthetics - AURA-RGB Lighting, Intel® Wi-Fi 6 AX200, ROG Exclusive Software, RAMCache III, Anti-virus ASUS Exclusive Software Features.
This Asus ROG STRIX B550-F Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
