| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | ROG MAXIMUS Z690 HERO |
| General Information | ||
| Model | ROG MAXIMUS Z690 HERO |
|
| Brand | Asus | |
| Supported Processor | Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
|
| Chipset | Z690 | |
| Socket | LGA1700 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX; 30.5cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR5 |
|
| Channel | Dual channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | Support for DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non-ECC, Un-buffered Memory | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | 1 x HDMI port 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs |
|
| Expansion Slots | ||
| PCI | * Intel® 13th & 12th Gen Processors* 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) * Intel® Z690 Chipset 1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes) |
|
| Storage Information | ||
| M.2 | 3 x M.2 slots (Key M) |
|
| SATA | 6 x SATA 6Gb/s ports | |
| Connector Information | ||
| Internal Connectors | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In the header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header |
|
| Port Information | ||

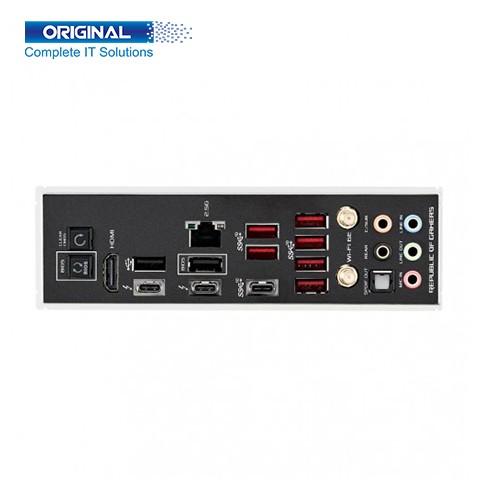

| USB Port | 2 x Thunderbolt™ 4 ports (2 x USB Type-C®) 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 ports (2 x Type-A) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| HDMI Port | 1 x HDMI port | |
| LAN Port | 1 x Intel® 2.5Gb Ethernet | |
| Audio Jack | 1 x Front Panel Audio header (AAFP) | |
| Other Information | ||
| WIFI & BLUETOOTH | Intel® Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 hardware ready |
|
| Operating System | ||
| Supported OS | Windows® 11, Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|
Asus ROG MAXIMUS Z690 HERO 12th Gen ATX Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus ROG MAXIMUS Z690 HERO Motherboard.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different types of IT Product information please Click here.
Asus ROG MAXIMUS Z690 HERO 12th Gen ATX Motherboard. Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Z690 Chipset. Socket LGA1700. Form Factor ATX; 30.5cm x 24.4cm. Asus ROG MAXIMUS Z690 HERO Memory Types DDR5, Dual-Channel. Slot 4 x DIMM. Support for DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non-ECC, Un-buffered Memory. Maximum Memory 128 GB. Graphics is 1 x HDMI® port, 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs. PCI is 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes), 1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes). Storage is 3 x M.2 slots (Key M), 6 x SATA 6Gb/s ports. USB Port is 2 x Thunderbolt™ 4 ports (2 x USB Type-C®), 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®), 2 x USB 2.0 ports (2 x Type-A), 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®), 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, HDMI Port is 1 x HDMI® port, LAN Port is 1 x Intel® 2.5Gb Ethernet, Audio Port is 1 x Front Panel Audio header (AAFP). Supported Operating System Support for Windows® 11 64-bit, and Windows® 10 64-bit. Asus ROG MAXIMUS Z690 HERO 12th Gen ATX Motherboard has Three years warranty.
