| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | ROG MAXIMUS XII FORMULA Z490 |
| General Information | ||
| Model | ASUS ROG MAXIMUS XII FORMULA Z490 |
|
| Brand | Asus | |
| Supported Processor | 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors | |
| Chipset | Intel Z490 | |
| Socket | Intel® Socket 1200 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4 x DDR4 DIMM | |
| Supported Bus Speed | 4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered MemorySupports Intel Extreme Memory Profile (XMP)OptiMem III | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology |
|
| Expansion Slots | ||
| PCI | * 2 x PCIe 3.0 x16 (x16 or dual x8) *1 * 1 x PCIe 3.0 x16 (x4 mode) *2 * 1 x PCIe 3.0 x1 *3 |
|
| Storage Information | ||
| M.2 | * 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) * 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) * 1 x M.2_3 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) |
|
| SATA | 6 x SATA 6Gb/s port(s) | |
| RAID | Support Raid 0, 1, 5, 10 | |
| Connector Information | ||
| Internal Connectors | * 3 x W_FLOW header * 3 x M.2 Socket 3 * 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) * 1 x USB 3.2 Gen 2 front panel connector * 1 x FlexKey button * 2 x W_OUT header * 1 x Thunderbolt header(s) * 1 x CPU Fan connector(s) * 1 x CPU OPT Fan connector(s) * 3 x Chassis Fan connector(s) * 1 x AIO_PUMP connector * 1 x H_AMP fan connector * 1 x W_PUMP+ connector * 1 x W_IN header * 1 x AAFP connector * 2 x Aura RGB Strip Headers * 2 x Addressable Gen 2 header(s) * 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 6 x SATA 6Gb/s connector(s) * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin ATX 12V Power connector(s) * 1 x 4-pin ATX 12V Power connector(s) * 1 x Thermal sensor connector(s) * 1 x ReTry button * 1 x System panel connector * 1 x Speaker connector * 1 x Start button |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse combo port(s) | |

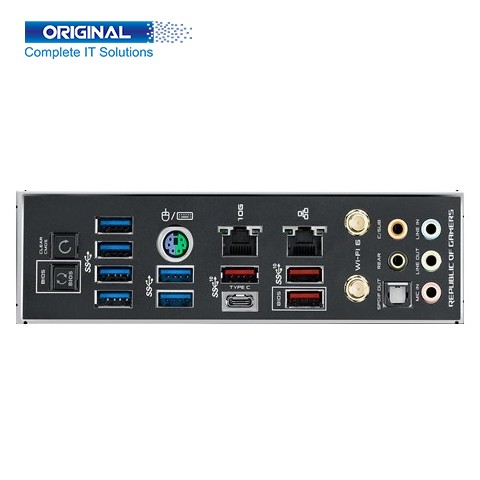

| USB Port | * 4 x USB 3.2 Gen 2 port(s)(3 x Type-A + USB Type-CTM) Front USB Port ( Total 9 ) Rear USB Port ( Total 10 ) * 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) * 1 x USB 3.2 Gen 2 front panel connector port(s) * 4 x USB 3.2 Gen 1 port(s) * 4 x USB 2.0 port(s) |
|
| LAN Port | * Intel® I225-V 2.5Gb Ethernet * Marvell® AQtion AQC107 10Gb Ethernet * ASUS LANGuard |
|
| Audio Port | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220 - Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback - Premium Japanese audio capacitors - Audio Cover - Impedance sense for front and rear headphone outputs - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Gold-plated jacks - Optical S/PDIF out port(s) at back panel |
|
| Other Information | ||
| Special Features | Wireless Data Network Intel® Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports CNVI interface Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Bluetooth Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. ROG Exclusive Software * Mem Tweakit * RAMCache III * ROG CPU-Z * GameFirst VI * Sonic Studio III + Sonic Studio Virtual Mixer * Sonic Radar III * DTS® Sound Unbound * Overwolf * BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate * Aura Creator * Aura Sync AI Suite 3 * 5-way Optimization with AI Overclocking TPU EPU Digi+ Power Control Fan Xpert 4 Turbo app * EZ update AI Charger WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY * ASUS CrashFree BIOS 3 * ASUS EZ Flash 3 * ASUS UEFI BIOS EZ Mode FlexKey ASUS Special Features ROG Extreme OC kit * FlexKey button * ReTry button * Start button ASUS Q-Design * ASUS Q-Code * ASUS Q-Connector * ASUS Q-DIMM * ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) * ASUS Q-Slot ASUS Thermal Solution * Aluminum M.2 heatsink * CrossChill EK III * Steel backplate ASUS EZ DIY * BIOS Flashback™ button * Clear CMOS button * Procool II * Pre- mounted I/O shield * SafeSlot AURA Sync * ROG Aura sync Armor * Standard RGB header(s) * Addressable Gen 2 RGB header(s) LiveDash OLED 2" |
|
| Operating System | ||
| Supported OS | Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
ASUS ROG MAXIMUS XII FORMULA Z490 motherboards provide the solid foundation needed for your first build, plus elasticity to grow with your ambitions. We have melded all the good stuff that is packed into the latest Intel® Core™ 10th Gen Pentium® Gold and Celeron® Processors with the necessary MSI design and engineering, so you advantage from industry-leading technologies, including automated system tuning, extensive cooling controls, and immersive onboard audio. When you build with an ASUS ROG MAXIMUS XII FORMULA Z490 motherboard, you build smart, simple, and affordably.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
ASUS ROG MAXIMUS XII FORMULA Z490 Motherboard comes with 10th Gen Intel Core, Pentium Gold and Celeron Processors, Intel Z490 Chipset with 256 Mb Flash ROM, UEFI AMI BIOS, 30.5 cm x 24.4 cm ATX Form Factor, and Intel LGA1200 socket. ASUS ROG MAXIMUS XII FORMULA Z490 Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, It is Un-buffered MemorySupports Intel Extreme Memory Profile (XMP)OptiMem III. ASUS ROG MAXIMUS XII FORMULA Z490 DDR4 Motherboard comes with standard Graphics such as Supports NVIDIA 2-Way SLI Technology, Supports AMD 3-Way CrossFireX Technology. ROG MAXIMUS XII FORMULA Z490 ASUS Motherboard Expansion PCI Slots is 2 x PCIe 3.0 x16 (x16 or dual x8), 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1, 6 x SATA 6 GB/s, 2 M.2 Socket 3, 1 x M.2_1 socket 3 and 1 x M.2_2 socket 3, Supports RAID 0, 1, 5, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, etc. ASUS FORMULA Z490 Motherboard has BLUETOOTH v5.1 function will be ready in Windows 10 build 19041 or later. and 1 x ASUS Wi-Fi Module, 4 USB 3.2 Gen 1, 4 USB 2.0 ports, 1x Display Port, ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220, etc many others. ASUS ROG MAXIMUS XII FORMULA Z490 Motherboard has some special features like Intel® I225-V 2.5Gb Ethernet, ROG Exclusive Software like Anti-virus software, ROG CPU-Z also some are ASUS Exclusive Software.
ASUS ROG MAXIMUS XII FORMULA Z490 Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
