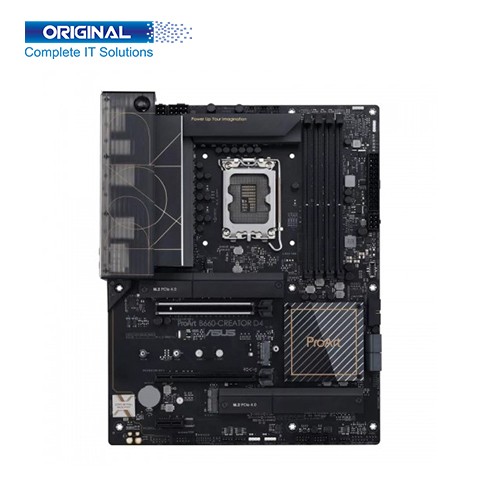

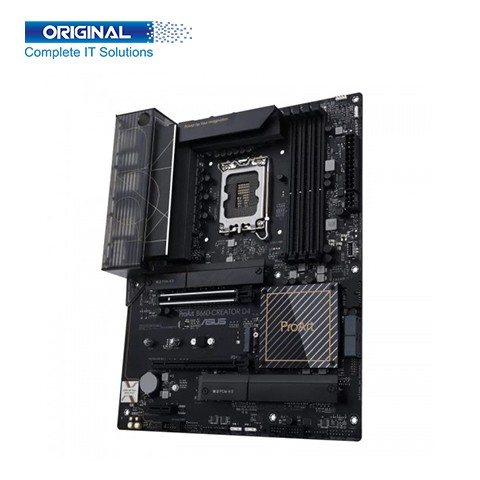

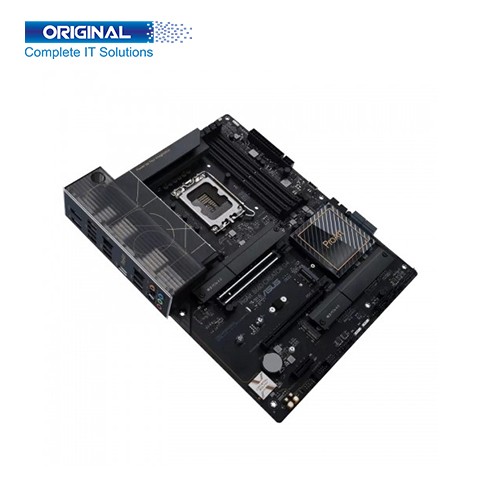

ASUS ProArt B660-CREATOR D4 12th Gen ATX Motherboard

Special Price :           ৳26,950
Regular Price(EMI) :           ৳27,450
Status :           In Stock
Brand :           Asus
Product Code :           ProArt B660-CREATOR D4

Short Details:

  • • Model: ProArt B660-CREATOR D4
  • • Socket: LGA1700
  • • Form Factor: ATX; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • • Memory Types: DDR4

See More Details

৳26,950

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

ProArt B660-CREATOR D4

Brand ASUS
Supported Processor Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset Intel® B660
Socket LGA1700
BIOS 128 Mb
Form Factor ATX; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory Information
Memory Types

DDR4

Channel Dual Channel
Slot 4 x DIMM
Supported Bus Speed Support for DDR4 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory
Maximum Memory 128 GB
Graphics Information
Graphics

1 x HDMI port (Support 4K@60Hz as specified in HDMI 2.1.)

1 x USB Type-C port supports DisplayPort output (Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.)

1 x DP IN that will have output through USB Type-C port (A DisplayPort to DisplayPort cable is required for the USB Type-C port at the back panel to output DisplayPort signal.)

Expansion Slots
PCI

* Intel® 13th & 12th Gen Processors

1 x PCIe 5.0/4.0/3.0 x16 slot


* Intel® B660 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slot

Storage Information
M.2

3 x M.2 slots

SATA 4x SATA 6Gb/s ports
RAID Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
Connector Information
Internal Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers


Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector


Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports


USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with 60W PD/QC4+)

1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key E)

1 x SPI TPM header (14-1pin)

1 x 20-5 pin System Panel header

1 x Thermal Sensor header

1 x Thunderbolt™ header

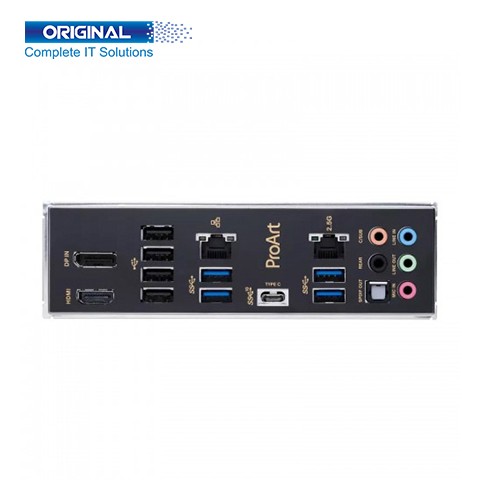

Port Information
USB Port

Rear USB (Total 9 ports)

1 x USB 3.2 Gen 2 Type-C® port (shared with DisplayPort graphic output)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

4 x USB 2.0 ports (4 x Type-A)


Front USB (Total 7 ports)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with 60W PD/QC4+)

1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

HDMI Port 1 x HDMI® port
Display Port 1 x DisplayPort (Input only)
LAN Port

1 x Realtek 2.5Gb Ethernet

1 x Intel® 1Gb Ethernet

Audio Jack 5 x Audio jacks
Other Information
WIFI & BLUETOOTH

M.2 slot only (Key E, PCIe)

Operating System
Supported OS

Windows® 11 64-bit, Windows® 10 64-bit

Warranty
Warranty

3 Years Warranty

Description:


ASUS ProArt B660-CREATOR D4 12th Gen ATX Motherboard


ASUS ProArt B660-CREATOR D4 12th Gen ATX Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus ProArt B660-CREATOR D4 Motherboard.


ASUS ProArt B660-CREATOR D4 12th Gen ATX Motherboard. Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Intel® B660 Chipset. Socket LGA1700. Form Factor ATX; 12 inch x 9.6 inches ( 30.5 cm x 24.4 cm ). Asus ProArt B660-CREATOR D4 Memory Types DDR4, Dual-Channel. Slot 4 x DIMM. Support for DDR4 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory. Maximum Memory 128 GB. Graphics is 1 x HDMI port (Support 4K@60Hz as specified in HDMI 2.1.), 1 x USB Type-C port that supports DisplayPort output, and 1 x DP IN that will have output through USB Type-C port. PCI is Intel® 13th & 12th Gen Processors: 1 x PCIe 5.0/4.0/3.0 x16 slot, Intel® B660 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slot. Storage Supports 3 x M.2 slots, 4 x SATA 6Gb/s ports. USB Port is Rear USB (Total 9 ports): 1 x USB 3.2 Gen 2 Type-C® port (shared with DisplayPort graphic output), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 7 ports): 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with 60W PD/QC4+), 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Display Port is 1 x DisplayPort (Input only), HDMI Port is 1 x HDMI port, LAN Port is 1 x Intel® 2.5Gb Ethernet, Audio Port is 5 x Audio jacks. Supported Operating System Support for Windows® 11, and Windows® 10 64-bit. ASUS ProArt B660-CREATOR D4 12th Gen ATX Motherboard has Three years warranty.
