| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | Pro WS W480-ACE |
| General Information | ||
| Model | Pro WS W480-ACE |
|
| Brand | Asus | |
| Supported Processor | Support for 10th Gen Intel® Xeon® Core™, Pentium® Gold, and Celeron® Processors | |
| Chipset | Intel® W480 | |
| Socket | LGA1200 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | Support for DDR4 4800(O.C.)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 3-Way CrossFireX Technology |
|
| Expansion Slots | ||
| PCI | * Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) *1 * Intel® W480 Chipset 1 x PCIe 3.0 x16 (x4 mode) *2 2 x PCIe 3.0 x1 |
|
| Storage Information | ||
| M.2 | 2 x M.2 slots |
|
| SATA | 4 x SATA 6Gb/s ports | |
| RAID | Support Raid 0, 1, 5, 10 | |
| Connector Information | ||
| Internal Connectors | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCI-E 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) x With flex key function 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x COM port header |
|

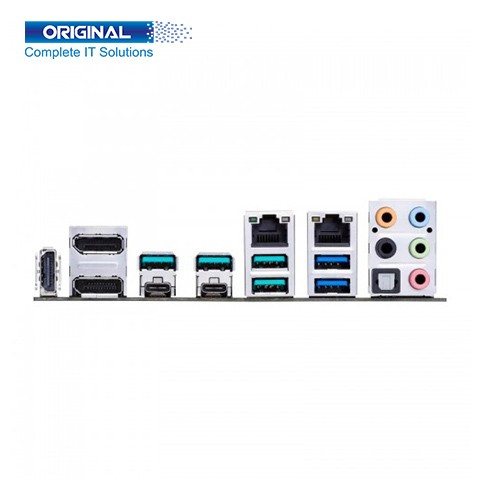

| Port Information | ||
| USB Port | Intel® Thunderbolt™ 3 Controller : 2 x USB 3.2 Gen 2 port(s) (USB Type-C®) Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 2 port(s)(4 x Type-A) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C®) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s) |
|
| HDMI Port | 1 x HDMI | |
| LAN Port | Intel® I225-LM 2.5Gb Ethernet Realtek® RTL8117 |
|
| Audio Jack | 5 x Audio jack(s) | |
| Thunderbolt | 2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz* * VGA resolution support depends on VGA cards´ resolution. Data transfer rate up to 40 Gbps Daisy-chain up to 12 Thunderbolt devices Up to 5V/3A, 15W charging support |
|
| Operating System | ||
| Supported OS | Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|

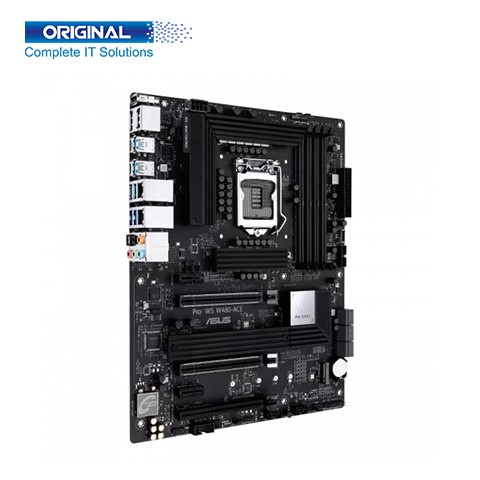

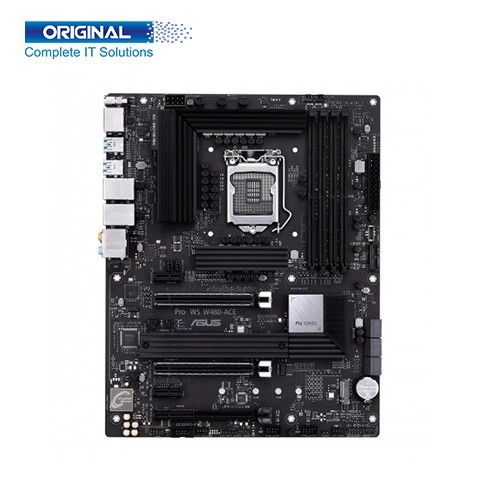

Asus Pro WS W480-ACE Intel Workstation Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 10th Gen Intel® Xeon® Core™, Pentium® Gold, and Celeron® Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus Pro WS W480-ACE Motherboard.
Asus Pro WS W480-ACE Intel Workstation Motherboard. Support for 10th Gen Intel® Xeon® Core™, Pentium® Gold, and Celeron® Processors. Intel® W480 Chipset. Socket LGA1200. Form Factor ATX 12 inch x 9.2 inches ( 30.5 cm x 23.4 cm ). Asus Pro WS W480-ACE Memory Types DDR4, Dual-Channel. Slot 4 x DIMM. Support for DDR4 4800(O.C.)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory, Maximum Memory 128 GB. Graphics is an Integrated Graphics Processor, 1 x DisplayPort 1.4, 1 x HDMI 1.4b, and Supports AMD 3-Way CrossFireX Technology. PCI is Intel® 10th Gen Processors: 2 x PCIe 3.0 x16 (x16 or dual x8) *1, Intel® W480 Chipset: 1 x PCIe 3.0 x16 (x4 mode) *2, 2 x PCIe 3.0 x1. Storage is 2 x M.2 slots, 4 x SATA 6Gb/s ports. USB Port is Intel® Thunderbolt™ 3 Controller : 2 x USB 3.2 Gen 2 port(s) (USB Type-C®), Rear USB Port ( Total 6 ): 4 x USB 3.2 Gen 2 port(s)(4 x Type-A), 2 x USB 3.2 Gen 1 port(s)(2 x Type-A), Front USB Port ( Total 7 ): 1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C®), 2 x USB 3.2 Gen 1 port(s)(2 x Type-A), 4 x USB 2.0 port(s), HDMI Port is 1 x HDMI port, LAN Port is Intel® I225-LM 2.5Gb Ethernet, Realtek® RTL8117, Audio Port is 5 x Audio jack(s). Supported Operating System Support for Windows® 10 64-bit. ASUS Asus Pro WS W480-ACE Intel Workstation Motherboard has Three years warranty.
