| Special Price | : | ৳14,900 |
| Regular Price(EMI) | : | ৳16,200 |
| Status | : | In Stock |
| Brand | : | Asus |
| Product Code | : | Pro B660M-C D4-CSM |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | Pro B660M-C D4-CSM | |
| Brand | ASUS | |
| Supported Processor | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** *Refer to www.asus.com for the CPU support list. **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU type. |
|
| Chipset | Intel® B660 Chipset | |
| Socket | LGA1700 | |
| BIOS | 128Mb Flash ROM | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimum |
|
| Maximum Memory | Max. 128GB | |
| Graphics Information | ||
| Graphics | 2 x DisplayPort** 1 x D-Sub port 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Expansion Slots | ||
| PCI | Intel® 13th & 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset 2 x PCIe 3.0 x1 slots |
|
| Storage Information | ||
| M.2 | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) |
|
| SATA | 4 x SATA 6Gb/s ports | |
| RAID | supports SATA RAID 0/1/5/10 | |
| Connector Information | ||
| Internal Connector | Fan and cooling related: 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related: 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous: 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header |
|

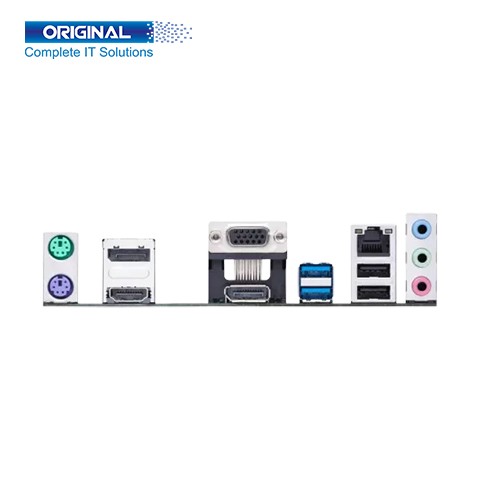

| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port |
|
| USB Port | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| HDMI Port | 1 x HDMI® port | |
| Display Port | 2 x DisplayPort | |
| D-Sub Port | 1 x D-Sub port | |
| LAN Port | 1 x Intel® 1Gb Ethernet ASUS LANGuard 1 x Intel® 1Gb Ethernet port |
|
| Audio Jack | 3 x Audio jacks | |
| Other Information | ||
| Wireless & Bluetooth | M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
|
| Operating System | ||
| Supported OS | Windows® 11, Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years | |

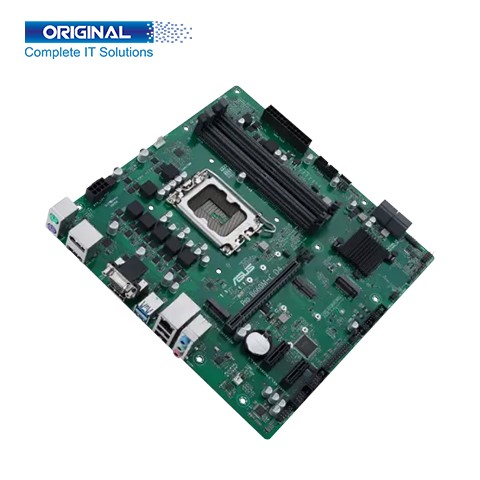

ASUS Pro B660M-C D4-CSM 12th Gen mATX Motherboard. ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing needs.
ASUS Pro B660M-C D4-CSM 12th Gen mATX Motherboard. The Motherboard Model is Pro B660M-C D4-CSM. The Brand Asus. Supported Processor Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0. Refer to www.asus.com for the CPU support list. Intel® Turbo Boost Max Technology 3.0 support depends on the CPU type. Intel® B660 Chipset. Socket LGA1700. BIOS 128Mb Flash ROM. Form Factor microATX 24.4cm x 24.4cm. Memory Types DDR4, Dual Channel. Slot 4 x DIMM. Supported Bus Speed 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory. Dual Channel Memory Architecture. Supports Intel Extreme Memory Profile (XMP) Optimum. Maximum Memory Max. 128GB. 2 x DisplayPort. 1 x D-Sub port. 1 x HDMI® port. Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. PCI Intel® 13th & 12th Gen Processors. 1 x PCIe 4.0/3.0 x16 slot. Intel® B660 Chipset. 2 x PCIe 3.0 x1 slots. Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports. Intel® 13th & 12th Gen Processors. M.2_1 slot (Key M), type 2242/2260/2280. Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset. M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4). 4 x SATA 6Gb/s ports. supports SATA RAID 0/1/5/10. 1 x PS/2 keyboard (purple) port & 1 x PS/2 mouse (green) port. Rear USB (Total 4 ports), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A). Front USB (Total 7 ports), 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 port, 2 x USB 2.0 headers support additional 4 USB 2.0 ports. 1 x HDMI® port. 2 x DisplayPort. 1 x D-Sub port. 1 x Intel® 1Gb Ethernet. ASUS LANGuard. 1 x Intel® 1Gb Ethernet port. 3 x Audio jacks. Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe). Wi-Fi module is sold separately. Supported Operating System Windows® 11, Windows® 10 64-bit. ASUS Pro B660M-C D4-CSM 12th Gen mATX Motherboard comes with 03 years warranty.
