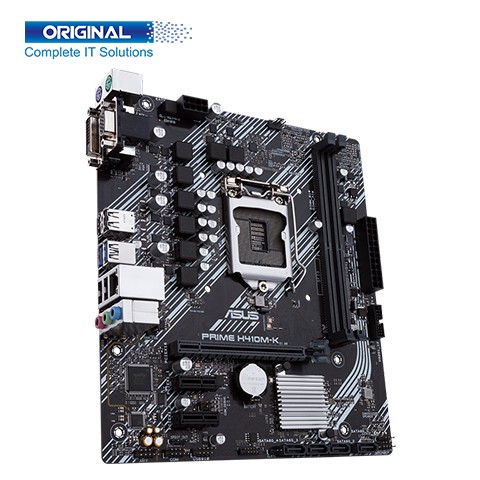

Asus Prime H410M-K DDR4 Micro-ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Asus
Product Code :           H410M-K

Short Details:

  • • Model: Asus Prime H410M-K
  • • Chipset: Intel® H410
  • • Form Factor: mATX Form Factor8.9 inch x 8.0 inch
  • • Memory Types: DDR4

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Asus Prime H410M-K
Supported Processor Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset Intel® H410
Socket 1200
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor 8.9 inch x 8.0 inch
Memory Information
Memory Types DDR4
Channel Dual-Channel
Slot 2 x DIMM
Supported Bus Speed DDR4 2933/2800/2666/2400/2133 MHz
Maximum Memory 64GB
Graphics Information
Graphics

* 1  x DVI-D

* 1  x D-Sub

* Graphics specifications may vary between CPU types

Expansion Slots
PCI

* 1 x PCIe 3.0 x16 (x16 mode)

* 2 x PCIe 3.0 x1

Storage Information
SATA 4 x SATA 6Gb/s port(s)
Connector Information
Internal Connectors

* 1 x CPU Fan connector(s)

* 1 x Chassis Fan connector(s)

* 1 x USB 3.2 Gen 1(up to 5Gbps)

* 1 x USB 2.0 connector(s) support(s)

* 4 x SATA 6Gb/s connector(s)

* 1 x S/PDIF out header(s)

* 1 x 24-pin EATX Power connector(s)

* 1 x 8-pin EATX 12V Power connectors

* 1 x Front panel audio connector(s) (AAFP)

* 1 x Clear CMOS jumper(s)

* 1 x System panel connector

* 1 x COM port header

* 1 x Speaker connector.

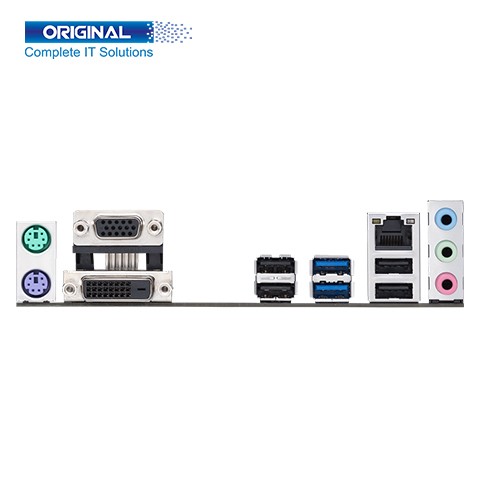

Port Information
PS/2 Port

* 1 x PS/2 keyboard (purple)

* 1 x PS/2 mouse (green)

USB Port

* 2 x USB 3.2 Gen 1 Type-A

* 4 x USB 2.0

HDMI Port 1 x HDMI
DVI-D Port 1 x DVI-D
D-Sub Port 1 x D-Sub
LAN Port

* Realtek® RTL8111H

* x LAN (RJ45) port(s)

Audio Port 3 x Audio jack(s)
Operating System
Supported OS Windows® 10 64-bit
Warranty
Warranty 03 Years Warranty

Description:


Asus Prime H410M-K DDR4 10th Gen Intel Micro-ATX Motherboard


Asus Prime H410M-K motherboard gives you the strong foundation you expect in your first form, in addition to the versatility of developing with your aspirations. We've put together all the cool stuff with basic planning and design in the latest Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors support, so you can benefit from industry-driven advances, including tuning of mechanical structures. Extensive cooling control, and lively locally available sound.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Asus Prime H410M-K motherboard comes with Socket LGA1200 for Chipset Intel H410 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, 128 Mb Flash ROM, UEFI AMI BIOS, mATX Form Factor 8.9 inch x 8.0 inch. Dual Channel 2 x DIMM DDR4 Maximum Memory 64GB, Supported Bus Speed DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz. In this Asus Prime H410M-K motherboard, 1  x DVI-D, 1  x D-Sub, 1 x HDMI, Graphics specifications may vary between CPU types. Expansion Slots are 1 x PCIe 3.0 x16 (x16 mode), 2 x PCIe 3.0 x1. For storage functions are 4 x SATA 6Gb/s port(s). Also in this motherboard, Internal Connectors are 1 x CPU Fan connector(s), 1 x Chassis Fan connector(s), 1 x USB 3.2 Gen 1(up to 5Gbps), 1 x USB 2.0 connector(s) support(s), 4 x SATA 6Gb/s connector(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Speaker connector. Realtek® RTL8111H x LAN (RJ45) port(s), 3 x Audio jack(s).


Asus Prime H410M-K motherboard OS Support Windows® 10 64-bit. You can enjoy a 03 Years Warranty. Purchase Motherboard from Original Store Ltd and get online conveyance at any side of Bangladesh.
