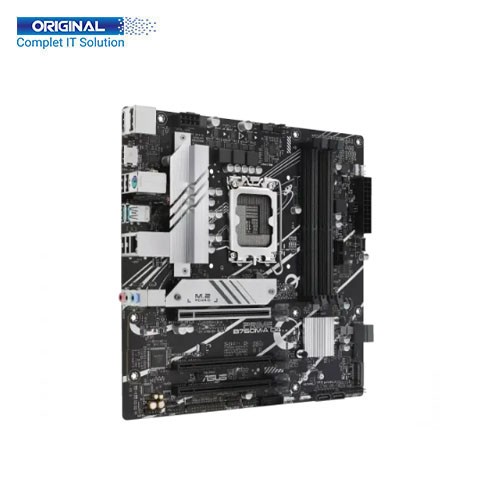

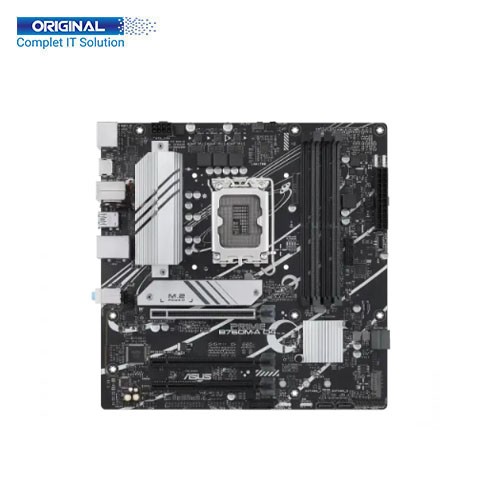

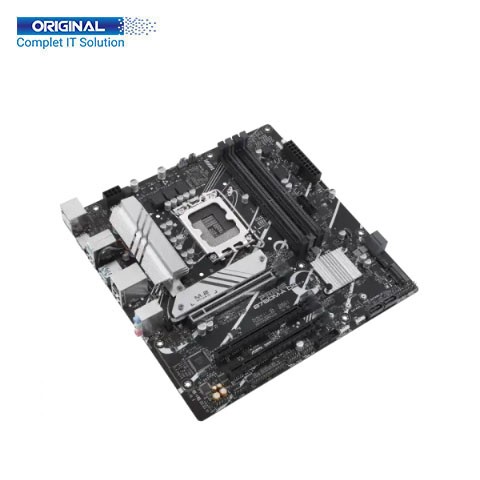

Asus PRIME B760M-A D4 12th & 13th Gen mATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Asus
Product Code :           PRIME B760M-A D4

Short Details:

  • • Model: Asus PRIME B760M-A D4
  • • Processor: 13th and 12th Gen Processors
  • • Chipset: Intel® B760 Chipset
  • • Socket: LGA1700

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Asus PRIME B760M-A D4
Brand Asus
Supported Processor Supports 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors
Chipset Intel® B760 Chipset
Socket LGA1700
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor

mATX Form Factor

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Memory Information
Memory Types DDR4
Channel Dual Channel
Slot 4 x DIMM
Supported Bus Speed

5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC),

4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC),

3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC,

Un-buffered Memory

Maximum Memory 128GB
Graphics Information
Graphics

1 x DisplayPort

2 x HDMI® ports

* Graphics specifications may vary between CPU types. Please refer to

Expansion Slots
PCI

Intel 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)

Storage Information
M.2

Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

SATA 4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Connector Information
Internal Connector

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function

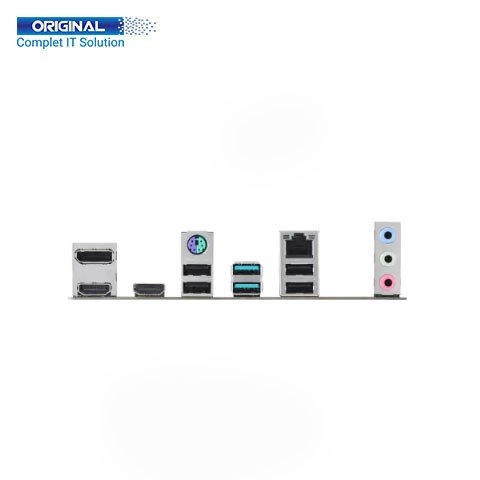

Port Information
PS/2 Port

1 x PS/2 Keyboard/Mouse combo port

USB Port

Rear USB (Total 6 ports)

2 x USB 3.2 Gen 2 ports (2 x Type-A )

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 10 ports)

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 2.0 headers support 4 additional USB 2.0 ports

1 x USB 2.0 header supports 1 additional USB 2.0 port

HDMI Port 2 x HDMI® ports
Display Port 1 x DisplayPort
LAN Port 1 x Realtek 2.5Gb Ethernet port
Audio Port

Realtek 7.1 Surround Sound High Definition Audio CODEC*

3 x Audio jacks

Others Information
Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- Digi+ VRM
- PC Cleaner
ASUS CPU-Z
Norton Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Operating System
Operating System Windows® 11, Windows® 10 64-bit
Warranty
Warranty 3 Years Warranty

Description:


Asus PRIME B760M-A D4 12th & 13th Gen mATX Motherboard


Asus PRIME B760M-A D4 12th & 13th Gen mATX Motherboard. These ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors.


Asus PRIME B760M-A D4 12th & 13th Gen mATX Motherboard. It is Supported Processor Supports 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors, Chipset Intel® B760 Chipset, Socket LGA1700, BIOS 128 Mb Flash ROM, UEFI AMI BIOS, Form Factor mATX Form Factor, 9.6 inch x 9.6 inches ( 24.4 cm x 24.4 cm ), Memory Types DDR4, Channel Dual Channel, Slot 4 x DIMM,  5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC),4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC),3466(OC)/3400(OC) 3333(OC), 3200/3000/2933/2800/2666/2400, 2133 Non-ECC, Un-buffered Memory, Maximum Memory 128GB, Graphics 1 x DisplayPort, 2 x HDMI® ports, * Graphics specifications may vary between CPU types. Please refer to, PCI Intel 13th & 12th Gen Processors, 1 x PCIe 4.0 x16 slot, Intel B760 Chipset, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x16 slot (supports x1 mode),  M.2 Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports, Intel® 13th & 12th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel® B760 Chipset, M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Internal Connector Fan and Cooling related, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers, Power related 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 1 x USB 2.0 header supports 1 additional USB 2.0 port, Miscellaneous 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x LPT header, 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function, USB Port Rear USB (Total 6 ports), 2 x USB 3.2 Gen 2 ports (2 x Type-A ), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 10 ports), 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 1 x USB 2.0 header supports 1 additional USB 2.0 port. The Asus PRIME B760M-A D4 12th & 13th Gen mATX Motherboard comes with 3 years warranty.
