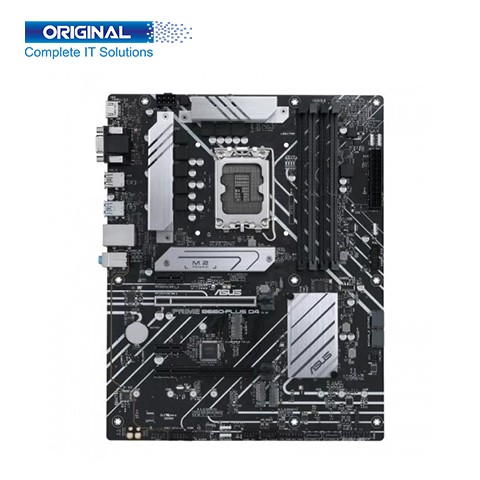

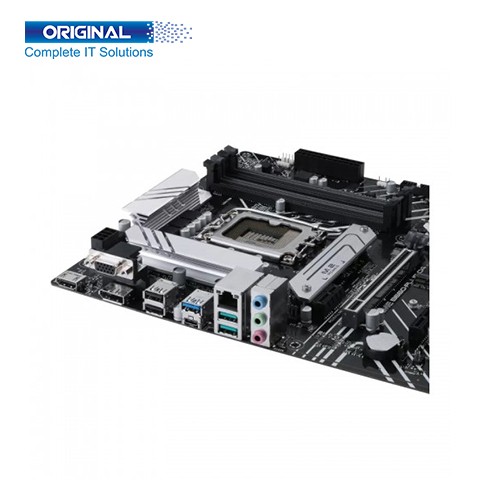

ASUS Prime B660-PLUS D4 12th Gen ATX Motherboard

Special Price :           ৳18,500
Regular Price(EMI) :           ৳19,357
Status :           In Stock
Brand :           Asus
Product Code :           Prime B660-PLUS D4

Short Details:

  • • Model: Prime B660-PLUS D4
  • • Socket: LGA1700
  • • Form Factor: ATX; 30.5cm x 24.4cm
  • • Memory Types: DDR4

See More Details

৳18,500

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

Prime B660-PLUS D4

Brand ASUS
Supported Processor Support for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset Intel® B660 Chipset
Socket LGA1700
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX; 30.5cm x 24.4cm
Memory Information
Memory Types

DDR4

Channel Dual Channel
Slot 4 x DIMM
Supported Bus Speed

Support for DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/

4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/

3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory

Maximum Memory 128 GB
Graphics Information
Graphics

1 x DisplayPort

1 x D-Sub port

1 x HDMI® port

Graphics specifications may vary between CPU types.

Supports max. [email protected] as specified in DisplayPort 1.4.

Supports [email protected] as specified in HDMI 2.1.

VGA resolution support depends on processors' resolution.

Expansion Slots
PCI

* Intel® 12th Gen Processors

1 x PCIe 4.0 x16 slot


* Intel® B660 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x1 slots

Storage Information
M.2

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Intel® 12th Gen processors support PCIe 4.0 x4 mode.


Intel® B660 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

SATA 4 x SATA 6Gb/s ports
RAID Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
Connector Information
Internal Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers


Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector


Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports


USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous

3 x Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key E)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header

Port Information
USB Port

Rear USB (Total 6 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1 x USB 3.2 Gen 1 port (1 x Type-A)

2 x USB 2.0 ports (2 x Type-A)


Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

HDMI Port 1 x HDMI® port
Display Port 1 x DisplayPort
D-Sub Port 1 x D-Sub port
LAN Port 1 x Realtek 2.5Gb Ethernet port
Audio Jack 3 x Audio jacks
Other Information
WIFI & BLUETOOTH

M.2 slot only (Key E, CNVi & PCIe)

Operating System
Supported OS

Windows® 11 64-bit, Windows® 10 64-bit

Warranty
Warranty

3 Years Warranty

Descripton:


Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard


ASUS Prime B660-PLUS D4 12th Gen ATX Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus Prime B660-PLUS D4 Motherboard.


ASUS Prime B660-PLUS D4 12th Gen ATX Motherboard. Support for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Intel® B660 Chipset. Socket LGA1700. Form Factor ATX; 30.5cm x 24.4cm. Asus Prime B660-PLUS D4 Memory Types DDR4, Dual-Channel. Slot 4 x DIMM. Maximum Memory 128 GB. Graphics is 1 x DisplayPort, 1 x D-Sub port, and 1 x HDMI® port, Graphics specifications may vary between CPU types. Supports max. [email protected] as specified in DisplayPort 1.4. Supports [email protected] as specified in HDMI 2.1. VGA resolution support depends on the processors' resolution. PCI is Intel® 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280, Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode), 4 x SATA 6Gb/s ports. USB Port is Rear USB (Total 6 ports): 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 2 x USB 3.2 Gen 2 ports (2 x Type-A), 1 x USB 3.2 Gen 1 port (1 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 7 ports): 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Display Port is 1 x DisplayPort, HDMI Port is 1 x HDMI port, D-Sub Port is 1 x D-Sub port, LAN Port is 1 x Intel® 2.5Gb Ethernet, Audio Port is 5 x Audio jacks. Supported Operating System Support for Windows® 11, and Windows® 10 64-bit. Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard has Three years warranty.
