| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | Prime B550M-A Wi-Fi |
| General Information | ||
| Model | Asus Prime B550M-A Wi-Fi |
|
| Brand | Asus | |
| Supported Processor | Build in AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | AMD B550 | |
| Socket | AM4 | |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor, 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 4600 /4400 /4266 /4133 /4000 /3866 /3733 /3600 /3466 /3333(O.C.) /3200 /3000 /2800 /2666 /2400 /2133 MHz | |
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | * 1 x D-Sub * 1 x DVI-D * 1 x HDMI 2.1(4K@60HZ) * Graphics specifications may vary between CPU types. |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 4.0 x16 (x16 mode) * 1 x PCIe 3.0 x16 (x16 mode) * 2 x PCIe 3.0 x1 |
|
| Storage Information | ||
| M.2 | * 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support * 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support * 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support |
|
| SATA | 4 x SATA 6Gb/s port(s), | |
| RAID | Support Raid 0, 1, 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x CPU Fan connector(s) * 1 x CPU OPT Fan connector(s) * 2 x Chassis Fan connector(s) * 2 x Aura RGB Strip Headers * 1 x Addressable Gen 2 header(s) * 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) * 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) * 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) * 1 x SPI TPM header * 4 x SATA 6Gb/s connector(s) * 1 x S/PDIF out header(s) * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin EATX 12V Power connectors * 1 x Front panel audio connector(s) (AAFP) * 1 x Clear CMOS jumper(s) * 1 x System panel connector * 1 x COM port header * 1 x Speaker connector |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse combo port(s) |
|
| USB Port | * 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) * 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) * 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) * 4 x USB 2.0 port(s)(4 x Type-A) | |
| HDMI Port | 1 x HDMI | |
| DVI-D Port | 1 x DVI-D | |
| D-SUB Port | 1 x D-Sub | |
| LAN Port | Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. |
|
| Audio Port | * Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
|
| Other Information | ||
| Special Features | Intel® Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header ASUS Lighting Control |
|
| Operating Systems | ||
| Supported OS | Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|

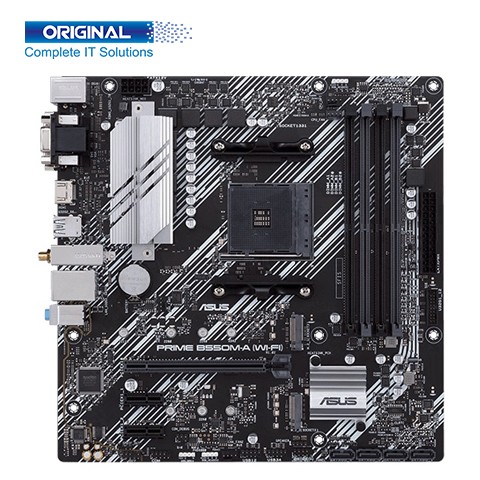

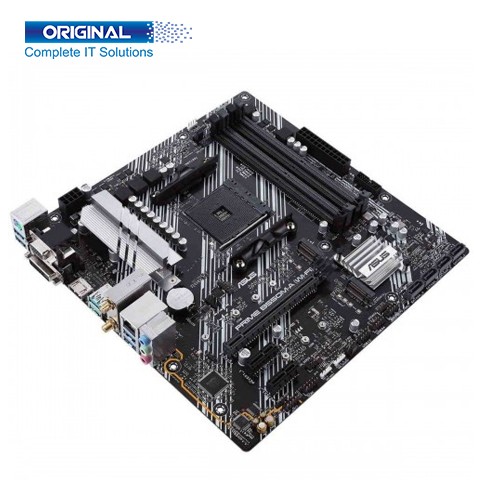

Asus Prime B550M-A Wi-Fi Motherboard comes with AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors, AMD B550 Chipset with 256 Mb Flash ROM, UEFI AMI BIOS, 24.4 cm x 24.4 cm ATX Form Factor. Asus Prime B550M-A Wi-Fi M-ATX Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 4600 /4400 /4266 /4133 /4000 /3866 /3733 /3600 /3466 /3333(O.C.) /3200 /3000 /2800 /2666 /2400 /2133 MHz.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus Prime B550M-A Wi-Fi AMD Motherboard comes with standard Graphics such as 1 x D-Sub, 1 x DVI-D, and 1 x HDMI 2.1(4K@60HZ). Prime B550M-A Wi-Fi Asus Motherboard Expansion PCI Slots is 1 x PCIe 4.0 x 16 slots, 4 x SATA 6 GB/s, 1 x M.2_1 socket 3 and 1 x M.2_2 socket 3, Supports Support Raid 0, 1, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, etc. The Asus Prime B550M-A Wi-Fi AM4 Motherboard has Bluetooth v5.1, 2 USB 3.2 Gen 1, 4 USB 2.0 ports, 1x Display Port, Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC, Realtek RTL8111H 1Gb Ethernet, etc many others. Asus Prime B550M-A Motherboard has some special features like Intel® Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), ROG Exclusive Software like Norton Anti-virus software, WinRAR, ROG CPU-Z also some are ASUS Exclusive Software.
Asus Prime B550M-A Wi-Fi Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty and buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
