| Special Price | : | ৳12,200 |
| Regular Price(EMI) | : | ৳13,400 |
| Status | : | In Stock |
| Brand | : | Asus |
| Product Code | : | Prime B450M-A II |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||

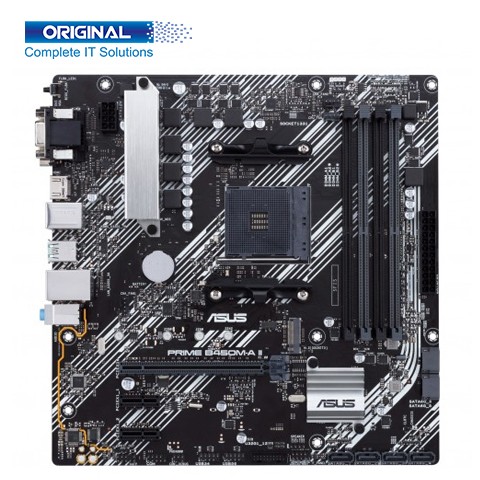

| Model | Asus Prime B450M-A II |
|
| Brand | Asus | |
| Supported Processor | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors | |
| Chipset | AMD B450 | |
| Socket | AM4 | |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor, 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 4400 /4000 /3866 /3733 /3600 /3466 /3400 /3300 /3200 /3000 /2800(O.C.)/2666 /2400 /2133 MHz | |
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | * Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors * * 1 x D-Sub * 1 x DVI-D * 1 x HDMI 2.0b * Graphics specifications may vary between CPU types. |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 3.0 x16 (x16 mode) * 1 x PCIe 3.0 x16 (x8 mode) * 1 x PCIe 3.0 x16 (x4 mode) * 2 x PCIe 2.0 x1 |
|
| Storage Information | ||
| M.2 | * 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) * 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) |
|
| SATA | * 2 x SATA 6Gb/s port(s), * 4 x SATA 6Gb/s port(s), |
|
| RAID | Support Raid 0, 1, 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x CPU Fan connector(s) (1 x 4 -pin) * 2 x Chassis Fan connector(s) (2 x 4 -pin) * 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) * 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) * 1 x SPI TPM header * 1 x COM port(s) connector(s) * 6 x SATA 6Gb/s connector(s) * 1 x S/PDIF out header(s) * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin ATX 12V Power connector(s) * 1 x Front panel audio connector(s) (AAFP) * 1 x System panel(s) * 1 x Clear CMOS jumper(s) * 1 x COM port header * 1 x Speaker connector * 1 x RGB Header |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse combo port(s) |
|
| USB Port | * 2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A) * 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) * 2 x USB 3.2 Gen 1 port(s) * 4 x USB 2.0 port(s) |
|
| HDMI Port | 1 x HDMI | |
| DVI-D Port | 1 x DVI-D | |
| D-SUB Port | 1 x D-Sub | |
| LAN Port | * Realtek® RTL8111H * ASUS LANGuard |
|
| Audio Port | * Realtek ALC887/897 7.1-Channel High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
|
| Other Information | ||
| Special Features | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ PC Cleaner - EZ update - System Information ASUS CPU-Z AI Charger ASUS EZ Installer DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED AURA Sync - AURA RGB header ASUS Lighting Control |
|
| Operating Systems | ||
| Supported OS | * Windows® 10 64-bit * Windows® 7 64-bit *2 |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
Asus Prime B450M-A II motherboards provide the solid foundation needed for your first build, plus elasticity to grow with your ambitions. We have melded all the good stuff that is packed into the latest Build in AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 1st/2nd/3rd Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors with the necessary design and engineering, so you advantage from industry-leading technologies, extensive cooling controls, including automated system tuning, and immersive onboard audio.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus Prime B450M-A II Micro ATX Motherboard comes with AMD Ryzen 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors AM4 Socket, Build in AMD B450 Chipset with 256 Mb Flash ROM, UEFI AMI BIOS, 24.4 cm x 24.4 cm ATX Form Factor. Asus Prime B450M-A II Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 4400/ 4000/ 3866/ 3733/ 3600/ 3466/ 3400/ 3300/ 3200/ 3000/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Asus Prime B450M-A II AMD AM4 Socket Motherboard comes with standard Graphics such as Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon™ with Radeon Vega Graphics Processors, 1 x D-Sub, 1 x DVI-D, 1 x HDMI 2.0b. Prime B450M-A II Asus Motherboard Expansion PCI Slots is 1 x PCIe 3.0/4.0 x 16 slots, 2 x SATA 6 GB/s, 4 x SATA 6 GB/s, 1 x M.2_2 socket 3, Supported Raid 0, 1, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, etc. The Asus Prime B450M-A II DDR4 Motherboard has Realtek RTL8111H, 2 USB 3.2 Gen 1, 2 USB 2.0 ports, Realtek ALC887/897 7.1-Channel High Definition Audio CODEC. Also, this Asus Prime B450M-A II Motherboard has some special features like ASUS Exclusive Software. Asus Prime B450M-A II Motherboard Support for Windows 10 64-bit, 7 64-bit. You can enjoy 03 Years Warranty and buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
