| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | Prime A320M-E |
| General Information | ||
| Model | Asus Prime A320M-E |
|
| Brand | Asus | |
| Supported Processor | AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/7th Generation A-series/Athlon X4 Processors | |
| Chipset | AMD A320 | |
| Socket | AM4 | |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control | |
| Form Factor | mATX Form Factor, 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 2 x DIMM | |
| Supported Bus Speed | 3200 /3000 /2933 /2800(O.C.) /2666 /2400 /2133 MHz | |
| Maximum Memory | 64GB | |
| Graphics Information | ||
| Graphics | * Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /Athlon™ with Radeon™ Vega Graphics /7th Generation A-Series APU *1 * Multi-VGA output support : HDMI/DVI-D/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz * Maximum shared memory of 2048 MB (for iGPU exclusively) |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 3.0/2.0 x16 (x16 mode) * 1 x PCIe 3.0/2.0 x16 (x8 mode) * 1 x PCIe 3.0/2.0 x16 (max at x4 mode) * 2 x PCIe 2.0 x1 |
|
| Storage Information | ||
| M.2 | * 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) * 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) |
|
| SATA | 4 x SATA 6Gb/s port(s), gray, | |
| RAID | Support Raid 0, 1, 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x CPU Fan connector(s) (1 x 4 -pin) * 1 x Chassis Fan connector(s) (1 x 4 -pin) * 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) * 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) * 1 x COM port(s) connector(s) * 4 x SATA 6Gb/s connector(s) * 1 x S/PDIF out header(s) * 1 x 24-pin EATX Power connector(s) * 1 x 4-pin ATX 12V Power connector(s) * 1 x Front panel audio connector(s) (AAFP) * 1 x System panel(s) * 1 x Clear CMOS jumper(s) * 1 x Speaker connector |
|
| Port Information | ||
| PS/2 Port | * 1 x PS/2 keyboard (purple) * 1 x PS/2 mouse (green) |
|
| USB Port | * 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) * 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) * 1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A) * 4 x USB 2.0 port(s) (4 at mid-board) |
|
| HDMI Port | 1 x HDMI | |
| DVI-D Port | 1 x DVI-D | |
| D-SUB Port | 1 x D-Sub | |
| LAN Port | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) | |
| Audio Port | Realtek ALC887/897 8-Channel High Definition Audio CODEC | |
| Operating System | ||
| Supported OS | <p>* Windows® 10 64-bit</p> <p>* Windows® 7 64-bit</p> |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|

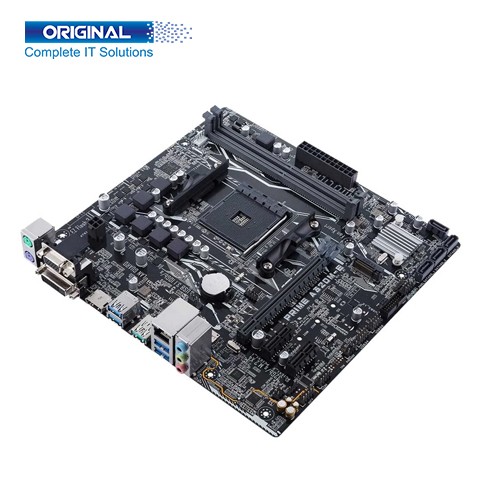

The Asus Prime A320M-E mATX motherboards provide the solid foundation needed for your 1st build, plus elasticity to grow with your ambitions. Melded all the good stuff that is packed into the latest AMD AM4 Socket for 1st/2nd/3rd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/7th Generation A-series/Athlon X4 Processors with necessary ASUS design and engineering, so you advantage from industry-leading technologies, including automated system tuning, extensive cooling controls, and immersive onboard audio.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
The Asus Prime A320M-E Motherboard comes with 1st/2nd/3rd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/7th Generation A-series/Athlon X4 Processors, AMD X570 Chipset with 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control, and Intel LGA1200 socket. Asus Prime A320M-E mATX Motherboard Maximum 64 GB DDR4 Dual Channel Memory, 2 x DDR4 DIMM sockets, Supported Bus Speed 3200 /3000 /2933 /2800(O.C.) /2666 /2400 /2133 MHz. Asus Prime A320M-E DDR4 Motherboard comes with standard Graphics such as Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz, Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz, Supports RGB with max. resolution 1920 x 1200 @ 60 Hz. Prime A320M-E Asus Motherboard Expansion PCI Slots is 1 x PCIe 3.0 x 16 slots, 4 x SATA 6 GB/s, 2 M.2 Socket 3, 1 x M.2_1 socket 3 and 1 x M.2_2 socket 3, Supports RAID 0, 1, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, etc. Asus A320M-E Motherboard has the function that will be ready in Windows 10 build 19041 or later. and 1 x ASUS Wi-Fi Module, 4 USB 3.2 Gen 1, 4 USB 2.0 ports, Realtek ALC887/897 8-Channel High Definition Audio CODEC, Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), and so on.
Asus Prime A320M-E Motherboard Support for Windows 10 64-bit. You can enjoy a 03 Years Warranty and buy Motherboard from Original Store Ltd to get online delivery at any corner of Bangladesh.
