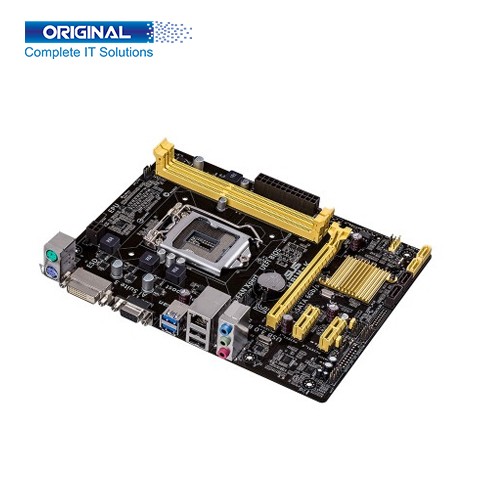

Asus H81M-K DDR3 Intel 4th Gen Motherboard

Special Price :           ৳9,650
Regular Price(EMI) :           ৳10,500
Status :           In Stock
Brand :           Asus
Product Code :           H81M-K

Short Details:

  • • Model: H81M-K
  • • Chipset: Intel® H81
  • • Socket: LGA1150
  • • Memory Types: DDR3

See More Details

৳9,650

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model H81M-K
Brand Asus
Supported Processor

* Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors

* Supports Intel 22 nm CPU

* Supports Intel Turbo Boost Technology 2.0

Chipset Intel® H81
Socket LGA1150
BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor uATX Form Factor, 8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
Memory Information
Memory Types DDR3
Channel Dual Channel
Slot 2 x DIMM
Supported Bus Speed

* 1600/1333/1066 MHz Non-ECC, Un-buffered Memory

* Dual Channel Memory Architecture

* Supports Intel® Extreme Memory Profile (XMP)

Maximum Memory Max. 16GB
Graphics Information
Graphics

* Integrated Graphics Processor

* Multi-VGA output support : DVI/RGB ports

* Supports DVI with max. resolution 1920 x 1200 @ 60 Hz

* Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

* Maximum shared memory of 1024 MB (for iGPU exclusively)

* Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider

Expansion Slots
PCI

* 1 x PCIe x16

* 2 x PCIe 2.0 x1

Storage Information
SATA

* 2 x SATA 6Gb/s port(s), yellow,

* 2 x SATA 3Gb/s port(s), dark brown

RAID Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1
Connector Information
Internal Connectors

* 1 x CPU Fan connector(s) (1 x 4 -pin)

* 1 x Chassis Fan connector(s) (1 x 4 -pin)

* 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

* 2 x SATA 6Gb/s connector(s)

* 2 x SATA 3Gb/s connector(s)

* 1 x S/PDIF out header(s)

* 1 x 24-pin EATX Power connector(s)

* 1 x 4-pin ATX 12V Power connector(s)

* 1 x Front panel connector(s)

* 1 x Front panel audio connector(s) (AAFP)

* 1 x Internal speaker connector(s)

* 1 x Clear CMOS jumper(s)

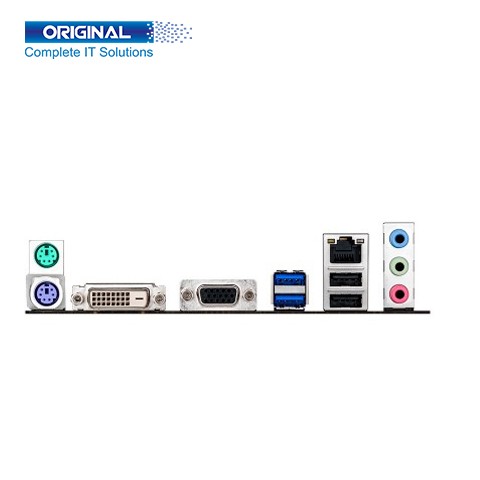

Port Information
PS/2 Port

* 1 x PS/2 keyboard (purple)

* 1 x PS/2 mouse (green)

USB Port 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
LAN Port Realtek® 8111G, 1 x Gigabit LAN Controller(s)
Audio Port 1 x Front panel audio connector(s) (AAFP)
S/PDIF Port 1 x S/PDIF out header(s)
CMOS 1 x Clear CMOS jumper(s)
Others Information
Special Features

ASUS EPU :

- EPU

ASUS Exclusive Features :

- GPU Boost

- AI Suite 3

- Ai Charger

- Anti-Surge

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

- Network iControl

- USB 3.0 Boost

- Disk Unlocker

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution

- ASUS Fan Xpert

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

ASUS Q-Design :

- ASUS Q-Slot

Operating Systems
Supported OS Windows 7 / 8
Warranty
Warranty 03 Years Warranty

Description:


Asus H81M-K DDR3 Intel 4th Gen Motherboard


Asus H81M-K DDR3 Intel 4th Gen Motherboard. This motherboard series is expertly engineered to unleash the full potential of 4th Generation Intel microprocessors. They are boasting a robust power design, comprehensive cooling solutions, intelligent tuning options, H81M-K mix-videos daily users, and firmware features.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Asus H81M-K DDR3 Intel 4th Gen Motherboard Brand is Asus, Supported Processor Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors, Supports Intel 22 nm CPU, Supports Intel Turbo Boost Technology 2.0, Chipset Intel® H81, Socket LGA1150, BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS Crash Free BIOS 3, My Favorites, Quick Note, Last Modified log, F12 Print Screen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information, Form Factor uATX Form Factor, 8.9-inch x 6.9 inches ( 22.6 cm x 17.5 cm ), Memory Types DDR3 Channel Dual Channel, Slot 2 x DIMM, Supported Bus Speed 1600/1333/1066 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), Maximum Memory Max. 16GB. This motherboard Graphics Integrated Graphics Processor Multi-VGA output support: DVI/RGB ports, Supports DVI with max. resolution 1920 x 1200 @ 60 Hz, Supports RGB with max. resolution 1920 x 1200 @ 60 Hz, Maximum shared memory of 1024 MB (for iGPU exclusively),Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider, SATA 2 x SATA 6Gb/s port(s), yellow, 2 x SATA 3Gb/s port(s), dark brown, RAID Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1,Internal Connectors 1 x CPU Fan connector(s) (1 x 4 -pin),1 x Chassis Fan connector(s) (1 x 4 -pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),2 x SATA 6Gb/s connector(s),2 x SATA 3Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 4-pin ATX 12V Power connector(s),1 x Front panel connector(s),1 x Front panel audio connector(s) (AAFP),1 x Internal speaker connector(s),1 x Clear CMOS jumper(s),PS/2 Port 1 x PS/2 keyboard (purple),1 x PS/2 mouse (green),USB Port 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),LAN Port Realtek® 8111G, 1 x Gigabit LAN Controller(s),Audio Port 1 x Front panel audio connector(s) (AAFP),S/PDIF Port 1 x S/PDIF out header(s),CMOS 1 x Clear CMOS jumper(s),Special Features ASUS EPU : EPU,ASUS Exclusive Features :GPU Boost, AI Suite 3,Ai Charger, Anti-Surge, ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface, Network iControl, USB 3.0 Boost, Disk Unlocker, ASUS Quiet Thermal Solution :Stylish Fanless Design Heat-sink solution, ASUS Fan Xpert, ASUS EZ DIY :ASUS Crash Free BIOS 3,ASUS EZ Flash 2,ASUS Q-Design :ASUS Q-Slot and Supported OS Windows 7 / 8.Asus H81M-K DDR3 Intel 4th Gen Motherboard 03 Years Warranty.
