ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard

Special Price :           ৳13,000
Regular Price(EMI) :           ৳14,000
Status :           In Stock
Brand :           Asus
Product Code :           EX-B660M-V5 D4

Short Details:

  • • Model: EX-B660M-V5 D4
  • • Socket: LGA1700
  • • Form Factor: mATX 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
  • • Memory Types: DDR4

See More Details

৳13,000

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

EX-B660M-V5 D4

Brand ASUS
Supported Processor Support for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset Intel® B660 Chipset
Socket LGA1700
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
Memory Information
Memory Types

DDR4

Channel Dual Channel
Slot 2 x DIMM
Supported Bus Speed Support for DDR4 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory
Maximum Memory 64 GB
Graphics Information
Graphics

1 x D-Sub port

1 x HDMI port (Supports [email protected] as specified in HDMI 2.1)

Expansion Slots
PCI

* Intel® 13th & 12th Gen Processors

1 x PCIe 4.0/3.0 x16 slot


* Intel® B660 Chipset

2 x PCIe 3.0 x1 slots

Storage Information
M.2

2 x M.2 slots

SATA 4 x SATA 6Gb/s ports
RAID Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
Connector Information
Internal Connectors

Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header


Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector


Storage related

2x M.2 slots (Key M)

4 x SATA 6Gb/s ports


USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x Speaker header

1 x 10-1 pin System Panel header

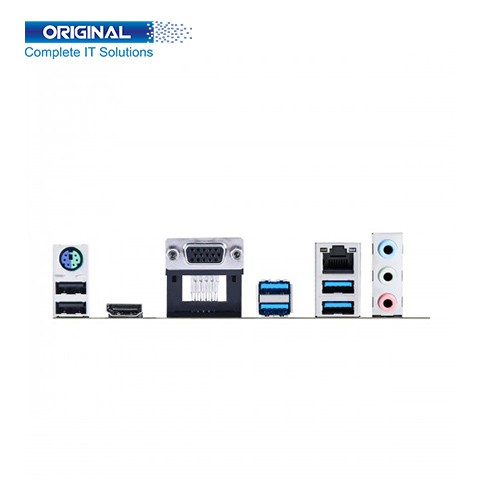

Port Information
PS/2 Port

1 x PS/2 Keyboard/Mouse combo port

USB Port

Rear USB (Total 6 ports)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support an additional 4 USB 2.0 ports

HDMI Port 1 x HDMI® port
D-Sub Port 1 x D-Sub port
LAN Port 1 x Realtek 1Gb Ethernet
Audio Jack 3 x Audio jacks
Operating System
Supported OS

Windows® 11 64-bit, Windows® 10 64-bit

Warranty
Warranty

3 Years Warranty

Descripton:


ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard


ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus EX-B660M-V5 D4 Motherboard.


ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard. Support for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Intel® B660 Chipset. Socket LGA1700. Form Factor mATX 9.6 inch x 8.3 inch(24.4cm x 21.1cm). Asus EX-B660M-V5 D4 Memory Types DDR4, Dual-Channel. Slot 2 x DIMM. Support for DDR4 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory, Maximum Memory 64 GB. Graphics is 1 x D-Sub port, and 1 x HDMI port (Supports [email protected] as specified in HDMI 2.1). PCI is Intel® 13th & 12th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot, Intel® B660 Chipset: 2 x PCIe 3.0 x1 slots. Storage is 2 x M.2 slots, 4 x SATA 6Gb/s ports. PS/2 Port is 1 x PS/2 Keyboard/Mouse combo port, USB Port is Rear USB (Total 6 ports): 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 6 ports): 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support an additional 4 USB 2.0 ports, D-Sub Port is 1 x D-Sub port, HDMI Port is 1 x HDMI port, LAN Port is 1 x Realtek 1Gb Ethernet, Audio Port is 3 x Audio jacks. Supported Operating System Support for Windows® 11, and Windows® 10 64-bit. ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard has Three years warranty.
